Sennheiser XSW 2-CL1-A Wireless 2 Instrument System, A: 548 to 572MHz
See all Sennheiser items

Sennheiser XSW 2-CL1-A Wireless 2 Instrument System, Includes EM-XSW 2 Receiver, SK-XSW Bodypack Transmitter, Frequency Band A: 548 to 572MHz

SKU: SEXSW2CI1A
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
Sennheiser EM-XSW1-A Table Top Receiver with Internal Antennas
$229.00
$199.00
undefined undefined: Picture 1 regular
Sennheiser EM-XSW1DUAL-A Wireless Receiver Set
$479.00
$399.00
undefined undefined: Picture 1 regular
Sennheiser ew 100 G4-865-S Wireless Vocal Set, G: 566 - 608 MHz
$999.00
$899.00
undefined undefined: Picture 1 regular
Sennheiser ew 100 G4-935-S Wireless Vocal Set, A: 516 - 558 MHz
$999.00
$849.00
undefined undefined: Picture 1 regular
Sennheiser ew 100 G4-945-S Wireless Vocal Set, G: 566 - 608 MHz
$999.00
$849.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Sennheiser XSW 2-CL1-A Specifications

  • Receiver: Power supply

    12 V DC nom. / 300 mA

  • Receiver: Housing

    Metal

  • Receiver: AF frequency response

    50 to 16,000 Hz (-3 dB)

  • Transmitter: Operating time

    Approx. 10 hrs

  • Transmitter: Power supply

    2 AA size batteries, 1.5 V

  • Transmitter: Housing

    Robust ABS

  • Transmitter: AF frequency response

    50 Hz to 16 kHz (Line)
    80 Hz to 16 kHz (Mic)

  • Frequency response

    50 to 16,000 Hz (-3 dB)

  • THD, total harmonic distortion

    = 0.9%

  • Signal-to-noise ratio

    >= 103 dBA

  • RF output power

    10 mW

  • Switching bandwidth

    Up to 24 MHz

  • Modulation

    Wideband FM

  • Output voltage

    1/4" (6.3mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu

  • Diversity reception

    True Diversity

  • Frequency

    8 frequency banks, each with up to 12 factory-preset channels

  • Frequency range

    A: 548-572 MHz

  • Sensitivity

    < 3 MuV at 52 dB(A)rms S/N

  • Squelch

    Switchable from 3 dBMuV to 28 dBMuV (via Pilot Tone)

  • Synchronization

    2.4 GHz, Low Power OQPSK (only active during synchronization)"

  • Adjustment Range Transmitter

    0 to -30 dB, adjustable in 10 dB steps

  • Audio adjustment range

    40 dB, adjustable in 5-dB steps

  • Line / Mic level

    20 dB, switchable

  • Operation Temperature Range

    0 to +40 deg. C (32 to 104 deg. F)

  • Storage Temperature Range

    -20 to +70 deg. C (-4 to 158 deg. F)

  • Receiver Principle

    Double super heterodyne

  • Dimensions

    Receiver (Approx.): 200 x 42 x 127mm (7.87 x 1.65 x 5.00")
    Transmitter (Approx.): 71 x 96 x 28mm (2.80 x 3.78 x 1.10")

  • Weight

    Receiver (Approx.): 680g (23.99 oz)
    Transmitter (Approx.): 95g (3.35 oz)

About Sennheiser XSW 2-CL1-A

Amplify your tunes. Flexible, rugged, all-in-one wireless system for guitar and bass. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.

The XS WIRELESS 2 INSTRUMENT SET is an easy to use all-in- one wireless system for guitarists and bassists, excellent for live sound. The set includes a stationary receiver for quick set-up and hassle-free handling, as well as a compact bodypack transmitter and a robust instrument cable. Metal receiver housing and rackmount kit included.

Sennheiser XSW 2-CL1-A Features

  • Robust instrument cable and compact bodypack transmitter
  • True diversity receiver with metal housing
  • External antennas
  • Automatic frequency management and synchronization via remote channel for easy setup
  • Fully tunable over a wide range of UHF frequencies
  • Rackmount kit included
  • Up to 12 compatible channels

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

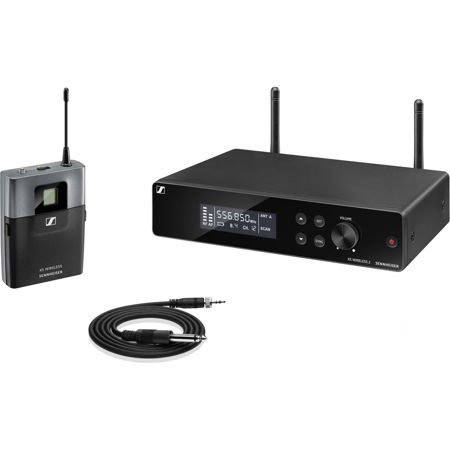

What's in the box:

  • Sennheiser EM-XSW 2 Receiver with Metal Housing
  • SK-XSW Bodypack Transmitter
  • Cl1 1/4 " to 1/8 " Instrument Cable
  • 2x AA Batteries
  • NT 12-5 CW Power Supply
  • Rackmount Kit
  • Protective Pouch
  • User Manual
  • Sennheiser 2 Year Limited Warranty
