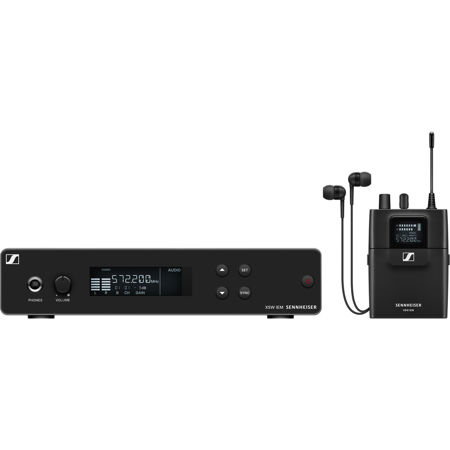

Sennheiser XSW IEM SET Stereo In-Ear Wireless Monitoring System B: 572-596MHz

SKU: SE509147 MFR: 509147
Earn VIP Reward Points

Key Features

  • All-in-one Sennheiser XSW IEM set for seamless in-ear monitoring
  • Easy-to-use interface with mono, stereo, and two-channel focus modes
  • Rugged stereo transmitter with flexible XLR combo inputs
  • Lightweight bodypack receiver with intuitive LC display and status LED
  • IE 4 in-ear headphones offering outstanding sound quality and bass response
  • Professional UHF range with eight frequency banks for reliable connectivity
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$124.99

3 Year

$159.99

4 Year

$189.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Sennheiser XSW IEM SET Specifications

Transmitter: RF Characteristics

Transmitter: RF Characteristics

Jump to...
  • Modulation

    FM stereo

  • Available Frequency Ranges

    A: 476 - 500 MHz (30 mW)
    B: 572 - 596 MHz (30 mW)
    (max. RF output power)

  • Switching Bandwidth

    Up to 24 MHz

  • Nominal/peak deviation

    +/-15 kHz / +/-24 kHz

  • Antenna output

    BNC socket, 50 Ohm

Transmitter: AF Characteristics

Jump to...
  • AF frequency response

    45 Hz to 15 kHz

  • AF input

    BAL AF IN L (I) + MONO/ BAL AF IN R (II)
    2x XLR-3/1/4" (6.3 mm) jack combo socket, electronically balanced

  • Total harmonic distortion (THD)

    <0.9 %

  • Signal-to-noise ratio

    >=88 dB (at nominal load and peak deviation)

Transmitter: General

Jump to...
  • Temperature range

    32 Degree F to 104 Degree F (0 Degree C to +40 Degree C)

  • Input rating

    +12 V DC

  • Current consumption

    Approx. 400mA (depending on volume level)

  • Dimensions

    Approx. 7.8 x 5.0 x 1.65" (200 x 128 x 42mm)

  • Weight

    Approx. 24.69 oz (700g)

Receiver: RF Characteristics

Jump to...
  • Modulation

    Wideband FM

  • Available Frequency Ranges

    A: 476 - 500 MHz (30 mW)
    B: 572 - 596 MHz (30 mW)

  • Switching Bandwidth

    Up to 24 MHz

  • Nominal/peak deviation

    +/-15 kHz / +/-24 kHz

  • Squelch

    10 microV, fixed

Receiver: AF Characteristics

Jump to...
  • Signal-to-noise ratio

    >=88 dB (1 mV, peak deviation)

  • Total harmonic distortion (THD)

    <= 1 %

  • AF output level at 3.5mm

    2x 1,25 Veff at 16 Ohm

  • High Boost (EQ)

    +10 dB at 13 kHz

  • Limiter

    -10 dB

  • AF frequency response

    45 Hz to 15 kHz

  • Cross talk (50 Hz - 10 kHz)

    Typically 45 dB

Receiver: General

Jump to...
  • Temperature range

    32 Degree F to 140 Degree F (0 Degree C to +40 Degree C)

  • Power supply

    2 AA batteries, 1.5 V

  • Nominal voltage

    3 V battery

  • Operating time

    Approx. 6 hrs (depending on volume level)

  • Battery Info

    Required, Included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

  • Dimensions

    Approx. 3.7 x 2.7 x 1.0" (95 x 70 x 26mm)

  • Weight

    Approx. 3.88 oz (110g) (Incl. batteries)

IE 4 In-Ear Earphones

Jump to...
  • Transducer

    Dynamic

  • Frequency response

    40-20.000Hz

  • SPL (1 kHz, 1 mW)

    106 dB

  • Nominal impedance

    6 Ohm

  • Cable length

    4.6' (1.4m)

  • Connector

    1/8" (3.5 mm) stereo plug, gold-plated

  • Temperature

    23 Degree F to 122 Degree F (-5 Degree C to +50 Degree C)

  • UPC Code

    615104356207

About Sennheiser XSW IEM SET

The Sennheiser XSW IEM SET Stereo In-Ear Wireless Monitoring System is your gateway to professional-grade personal monitoring, offering an all-in-one solution for musicians and performers seeking superior sound quality and reliability. This comprehensive set is designed to redefine standards in wireless in-ear monitoring by providing a seamless, flexible, and dependable experience, whether you're a seasoned professional or new to the technology. Ideal for rehearsals, live performances, club stages, or worship services, this system ensures you can focus on delivering your best performance with the renowned Sennheiser sound and robust UHF wireless reliability.

Out of the box, the XS Wireless IEM set includes everything needed for quick and easy setup. It features a rugged stereo transmitter, a lightweight bodypack receiver, IE 4 in-ear starter headphones, batteries, a power supply with a multi-voltage adapter, and a rack mount kit for the transmitter. The system operates within the professional UHF range, boasting eight pre-configured frequency banks with 12 channels each, ensuring a clear and reliable connection in any environment.

The XS Wireless IEM system is designed to be intuitive and user-friendly, requiring no technical expertise to achieve optimal sound. It offers multiple audio modes, including mono, stereo, and two-channel focus modes, to accommodate various performance and mixing needs. The lightweight stereo receiver bodypack is crafted for live stage use, featuring a stage-proof panel that secures settings and a status LED that provides battery and connection status updates. The LC display allows for easy access to additional settings, enabling you to fine-tune your in-ear monitoring preferences, balance your mix, adjust the EQ for enhanced high frequencies, and select channels or manual frequencies.

The stereo transmitter, housed in durable metal, is designed for flexibility and ease of use. It can be rack-mounted or used as a standalone unit, with a backlit menu for easy navigation even in low-light conditions. The transmitter includes XLR combo inputs for versatile cabling options and a headphone output for local monitoring. Advanced settings such as gain adjustment, input sensitivity, and frequency management are easily accessible, allowing for quick setup and synchronization of additional receivers.

The included IE 4 in-ear headphones deliver exceptional sound quality with high dynamics and outstanding bass response. They come with exchangeable ear sleeves for a secure and comfortable fit, providing excellent isolation from environmental noise.

The XSW IEM EK Bodypack Stereo Receiver is lightweight and discreet, featuring a 3.5 mm output for the included IE 4 in-ear monitors or optional upgrades to the IE PRO series. The receiver's backlit front panel and status LED offer quick access to sound settings, including focus modes, volume control, EQ, and limiter functions. It operates on two AA batteries, providing up to six hours of use depending on volume levels.

Overall, the Sennheiser XSW IEM SET Stereo In-Ear Wireless Monitoring System is a versatile and reliable choice for musicians and performers looking to enhance their sound experience with professional-grade equipment.

Sennheiser XSW IEM SET Features

  • Complete set - includes all components needed to start with wireless in-ear monitoring
  • Reliable, easy-to-manage wireless connection in the professional UHF range
  • Multiple audio modes for varying setups or performances and unique mixing options
  • Focus mode allows the ability to prioritize one input over another directly from the bodypack receiver for a user-specific monitoring experience
  • Advanced features like EQ and limiter
  • Perfectly aligned frequency presets in 8 banks with 12 channels each - option for manual tuning
  • An unlimited number of receivers can be used with one transmitter, allowing for cost-effective setups
  • Infrared sensor to sync multiple receivers easily to one transmitter

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • All-in-one Sennheiser XSW IEM set for seamless in-ear monitoring
  • Easy-to-use interface with mono, stereo, and two-channel focus modes
  • Rugged stereo transmitter with flexible XLR combo inputs
  • Lightweight bodypack receiver with intuitive LC display and status LED
  • IE 4 in-ear headphones offering outstanding sound quality and bass response
  • Professional UHF range with eight frequency banks for reliable connectivity

What's in the box:

  • XSW IEM SR Stereo Transmitter
  • XSW IEM EK Bodypack Stereo Receiver
  • XSW BNC Antenna
  • IE 4 In-Ear Earphones
  • 2 AA Batteries
  • XSW Rack Mount Set
  • NT 12-5CW Power Supply + Country Adapter
  • User Manual
  • Sennheiser 2 Year Limited Warranty
