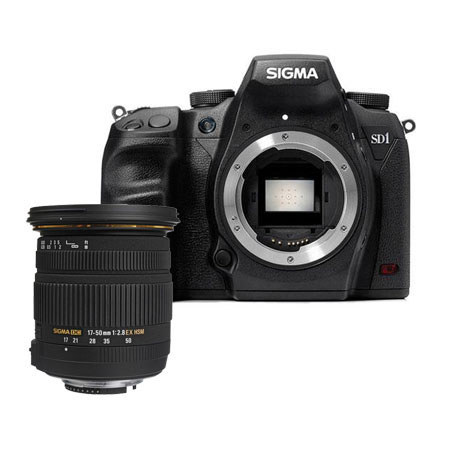

Sigma SD1 Merrill 46 Megapixel Digital SLR Camera Body, with 17-50mm f/2.8 EX DC OS HSM Auto Focus Wide Angle Zoom Lens for Digital SLR Cameras - USA Warranty

SKU: SGSD1L4

This item is no longer available.

Recommended Alternatives

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Sigma SD1 Specifications

  • Format

    Interchangeable lens SLR camera

  • Storage Media

    Compact Flash (Type I, UDMA compatible)

  • Image Sensor Size

    23.5x15.7mm

  • Lens Mount

    SIGMA SA bayonet mount

  • Compatible Lenses

    SIGMA SA mount interchangeable lenses

  • Angle of View

    Equivalent to approx. 1.5 times the focal length of the lens (for 35mm cameras)

  • Image Sensor

    X3 direct image sensor (CMOS)

  • Pixels

    Total Pixels 48MP, Effective Pixels 46MP (4,800x3,200x3 layers)

  • Aspect Ratio

    3:2

  • Still Image Format

    Exif 2.3, DCF 2.0

  • Recording Mode

    Lossless compression RAW data(12-bit, High, Medium, Low), JPEG(High, Medium, Low)

  • File Size: RAW

    High Approx: 45 MB (4,704 x 3,136 x 3)
    Medium Approx: 24 MB (3,264 x 2,176 x 3)
    Low Approx: 12 MB (2,336 x 1,568 x 3)

  • File Size: JPEG (High)

    Fine Approx: 10 MB (4,704 x 3,136)
    Normal Approx: 5.6 MB (4,704 x 3,136)
    Basic Approx: 4.2 MB (4,704 x 3,136)

  • File Size: JPEG (Medium)

    Fine Approx: 5 MB (3,264 x 2,176)
    Normal Approx: 2.7 MB (3,264 x 2,176)
    Basic Approx: 2 MB (3,264 x 2,176)

  • File Size: JPEG (Low)

    Fine Approx: 2.5 MB (2,336 x 1,568)
    Normal Approx: 1.4 MB (2,336 x 1,568)
    Basic Approx: 1 MB (2,336 x 1,568)

  • Continuous shooting speed

    High:5 frame/sec., Medium:6 frame/sec., Low:6 frame/sec

  • Continuous buffer

    High:Max. 7 frames, Medium:Max. 14 frames, Low:Max. 14 frames

  • Interface

    USB(USB2.0), Video Out (NTSC/PAL)

  • White Balance

    8 types (Auto, Daylight, Shade, Overcast, Incandescent, Fluorescent, Flash and Custom)

  • Color Mode

    7 types (Standard, Vivid, Neutral, Portrait, Landscape, B&W, Sepia)

  • Viewfinder Type

    Pentaprism SLR viewfinder

  • Viewfinder Frame Coverage

    98% vertical, 98% horizontal

  • Viewfinder Magnification

    0.95x (50mmF1.4)

  • Eye point

    18mm

  • Diopter Adjustment Range

    -3.0 dpt - +1.5 dpt

  • Auto Focus Type

    TTL phase difference detection system

  • AF Point

    11 points twin cross sensor

  • AF Operating Range

    EV -1 to +18 (ISO100)

  • Focus Mode

    Single AF, Continuous AF (with AF motion prediction function), Manual

  • AF Point Selection

    Automatic Selection, Manual Selection

  • Metering Systems

    77 segment Evaluative Metering, Spot Metering, Center Area Metering, Center-Weighted Average Metering

  • Metering Range

    EV 1 to 20 (50mm F1.4: ISO100)

  • Exposure Control System

    [P] Program AE (Program Shift is possible),[S] Shutter Speed Priority AE,[A] Aperture Priority AE, [M] Manual

  • ISO Sensitivity

    ISO100,200,400,800,1600,3200,6400

  • Exposure Compensation

    +/-3 EV (in 1/3 stop increments)

  • Auto Bracketing

    Three or Five frames (in 1/3 steps, Appropriate Exposure-Under Exposure-Over Exposure)

  • Shutter Type

    Electronically Controlled Focal Plane Shutter

  • Shutter Speed

    1/8000 - 30 sec.,Bulb (up to 30 sec. With Extended Mode: 2 min.)

  • Flash Connectivity

    Hot shoe (contact X synchronization at 1/180 sec. or less, with dedicated flash linking contact)

  • Built-in Flash

    Manual Pop-up Built-in flash, GN11 (17mm lens angle covered)

  • LCD Monitor

    Type: TFT color LCD monitor, Monitor Size: 3.0", LCD Pixels: Approx. 460,000

  • Reviewing Images

    Single frame display, Multi display [9 frames],Zoom, Slide Show

  • LCD Monitor Language

    English / Japanese / German / French / Spanish /Italian / Chinese (Simplified) / Korean / Russian

  • Power

    Li-ion Battery Pack BP-21, Battery Charger BC-21,AC Adapter SAC-4 (optional)

  • Dimensions (W x H x D)

    145.5 mm x 113.5 mm x 80.0 mm/5.7" x 4.4" x 3.1"

  • Weight

    700g /24.7oz (without battery and card)

  • UPC Codes

    846431045391, 085126928766, 085126583569

2 Accessories for Sigma SD1 Merrill 46 Megapixel Digital SLR Camera Body, with 17-50mm f/2.8 EX DC OS HSM Auto Focus Wide Angle Zoom Lens for Digital SLR Cameras - USA Warranty

  • All Accessories (2)
  • Batteries & Power Supply (1)
  • Cleaning Accessories (1)

About Sigma SD1

Professional and high-end enthusiast photographers will utilize the Sigma SD1 Merrill's exclusive Foveon 23.5x15.7mm APS-C x3 direct image sensor to capture exceptionally rich and detailed images that have a film-like quality. Users will also benefit from Sigma's wide selection of interchangeable lenses that are compatible with the SD1.

The Sigma SD1 Merrill features dual "Three-layer Responsive Ultimate Engine (TRUE) II" image processing engines, which improves processing speed, provides high resolution power and produces high-definition images with richly graduated tones. It also allows simultaneous RAW and JPEG recording, which is a first for Sigma cameras. Additionally, the photographer has the option to select full-size, half-size or quarter-size RAW files making it a more versatile camera for a wide range of photographers. The Foveon sensor uses three silicon-embedded layers of photo detectors, stacked vertically to take advantage of silicon's ability to absorb red, green and blue light at different respective depths. This technology efficiently reproduces color more accurately and offers sharper resolution, pixel for pixel, than any conventional image sensor.

The optical format of the Foveon sensor has been upgraded from that which was used in previous SD cameras and has increased from 1.7x focal length to the 1.5x focal length multiplier. The SD1 also benefits from improved image processing and noise reduction algorithms, with an ISO sensitivity range from 100 to 6400. This is two full stops more sensitivity than the SD15, which has a maximum 1600 ISO. An intuitive user interface and an impressive lightweight, yet solid magnesium alloy body and O-ring sealing connections that make the camera durable and splash proof are also key feature upgrades of the flagship SD1.

The SD1 Merrill adopts the TYPE 1 Compact Flash Card and is UDMA-compatible enabling fast processing of large amounts of data. The autofocus system features an 11-point shifted twin cross type sensor, which improves AF accuracy. The SD1 features a 3.0 inch TFT color monitor. This 460,000 pixel resolution LCD monitor benefits from a wide viewing angle, making it easy to check focusing and composition. The SD1 Merrill can be used with more than 40 Sigma SA mount lenses such as ultra-wide, ultra-telephoto, macro and fisheye.

Sigma's image processing software, Photo Pro 5.0, comes bundled with the camera and its simple operation allows quick and easy capture of the desired imaged. Additional functions such as Loupe, Slideshow, Print, Convert to JPEG file and Batch White Balance settings are also incorporated into this software.

Sigma SD1 Features

  • Adorama Camera Valuable Bundle. Kit Includes.
  • Sigma SD1 Merrill Digital SLR Camera, Li-ion Battery BP-21, Battery Charger BC-21, USB Cable, Video Cable, Neck Strap, Eye Cap, Body Cap, Eyepiece Cap, Sigma Photo Pro Disc, SD1 Instruction Manual, Sigma 1 Year North and South America Limited Warranty (3 Year USA Extended Warranty for a Total of 4 Years from Date of Purchase).
  • 17-50mm f/2.8 EX DC OS HSM Auto Focus Wide Angle Zoom Lens for Sigma digital Cameras, USA Warranty.

Key Features

  • 23.5 x 15.7mm APS-C X3 direct image sensor
  • TRUE 3 layer responsive image processing engine
  • TRUE image processing engine
  • Unique algorithm for high res power & images
  • 11 point twin cross sensor AF
  • DDR III memory handles large data at high speed

What's in the box:

  • Sigma SD1 Merrill 46 Megapixel Digital SLR Camera
  • Li-ion Battery BP-21
  • Battery Charger BC-21
  • USB Cable
  • Video Cable
  • Neck Strap
  • Eye Cap
  • Body Cap
  • Eyepiece Cap
  • SIGMA Photo Pro Disc
  • SD1 Instruction Manual
  • Sigma 17-50mm f/2.8 EX DC OS HSM Auto Focus Wide Angle Zoom Lens
  • Sigma 1 Year North and South America Limited Warranty (3 Year USA Extended Warranty for a Total of 4
