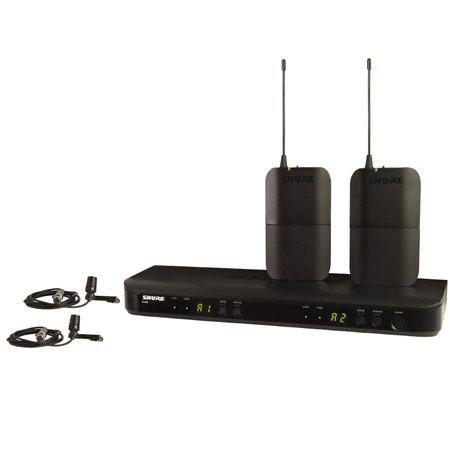

Shure BLX188/CVL Dual Lavalier System, J10: 584-608MHz Frequency
BLX Wireless System Overview
Shure BLX188/CVL-J10: Picture 1 thumbnail
See all Shure items

Shure BLX188/CVL Dual Lavalier System, Includes BLX1 Transmitter, BLX88 Receiver, CVL Lavalier Mic, Power Supply, Clip, Windscreen, J10: 584-608MHz

SKU: SH188CVLJ10

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2018-07-10T10:53:27

Rated 5 out of 5

President

The product is very compact and easy to use. Everyone in the church congregation is able to hear what is being said clearly and without any feedback. I will certainly recommend Adorama when the church is considering buying any electronic item.

JILL S.

Shure BLX188/CVL-J10 Specifications

  • Frequency

    J10: 584-608MHz

  • BLX88: Output

    2x XLR Output
    2x 1/4" (6.35 mm) Output

  • BLX88: Output Impedance

    XLR: 200 Ohms
    1/4": 50 Ohms

  • BLX88: Audio Output Level

    XLR Connector: -20.5 dBV into 100kOhms Load (Reference +/-33 kHz with 1 kHz Tone)
    1/4": -13 dBV into 100kOhms Load (Reference +/-33 kHz with 1 kHz Tone)

  • BLX88: RF Sensitivity

    -105 dBm for 12 dB SINAD, Typical

  • BLX88: Image Rejection

    >50 dB, Typical

  • BLX88: Housing

    Molded ABS

  • BLX88: Power Requirement

    12 to 15 V DC at 320 mA, Supplied by External Power Supply (Tip Positive)

  • BLX1: Audio Input

    Gain: -16 dBV (Maximum), 10 dBV (Minimum

  • BLX1: Gain Adjustment Range

    26 dB

  • BLX1: Input Impedance

    1 MOhms

  • BLX1: RF Output

    10 mW, Typical

  • BLX1: Housing

    Molded ABS

  • BLX1: Power Requirement

    2x LR6 AA Batteries, 1.5 V Alkaline

  • BLX1: Battery Life

    Up to 14 Hours

  • CVL: Type

    Electret Condenser

  • CVL: Frequency Response

    50-20,000 Hz

  • CVL: Polar Pattern

    Cardioid

  • CVL: Output Impedance at 1 kHz, typical

    600 Ohms

  • CVL: Audio Output Level

    -43.5 dBV/Pa

  • CVL: Signal-To-Noise Ratio at 1 kHz

    72 dB

  • CVL: Max SPL 1000 Ohms load, at 3% THD

    139.0 dB

  • CVL: Dynamic Range at 1 kHz, 1000 Ohms

    117.0 dB

  • CVL: Equivalent Output Noise

    22 dB (Typical, A-Weighted)

  • CVL: Connector

    TA4F

  • CVL: Power Requirements

    +5 V DC (nominal), 10 V maximum (DC bias)

  • CVL: Polarity

    Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1

  • CVL: Cable

    1.3m (4.3')

  • Dimensions

    BLX88 Receiver (H x W x D): 1.5 x 15 x 4.5" / 3.81 x 38.1 x 11.43cm
    BLX1 Bodypack Transmitter (H x W x D): 4.3 x 2.5 x 0.8" / 10.92 x 6.35 x 2.03cm

  • Weight

    BLX88 Receiver: 15.1oz / 428.08g
    BLX1 Bodypack Transmitter: 2.6oz / 73.71g
    CVL Mic: 25g / 0.88oz

  • UPC Code

    042406366328

About Shure BLX188/CVL-J10

FEATURED REVIEWS

President

By JILL S.

The product is very compact and easy to use. Everyone in the church congregation is able to hear what is being said clearly and without any feedback. I will certainly recommend Adorama when the church is considering buying any electronic item.

The Shure BLX188/CVL Dual Lavalier System (J10: 584-608MHz Frequency) includes BLX88 dual-channel receiver, 2 BLX1 bodypack transmitters, 2 CVL lavalier microphones, lavalier clip, windscreens and user guide.

BLX1 Bodypack Transmitter
The durable BLX1 features a lightweight, ergonomic design and adjustable gain control. For use with BLX Wireless Systems.

BLX88Dual Channel Receiver
The durable BLX88 offers simple setup, intuitive controls and microprocessor-controlled internal antenna diversity. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference. For use with BLX Wireless Systems.

CVL Lavalier Condenser Microphone
For professional presentations requiring a microphone that is heard but not seen, the Centraverse CVL Lavalier Condenser Microphone offers a compact clip-on design and simple, no-nonsense setup. The unidirectional cardioid polar pattern rejects unwanted sound for superior audio quality and vocal reproduction. Precision-engineered for years of use with all Shure wireless systems.

Shure BLX188/CVL-J10 Features

  • BLX1: Quick and easy receiver frequency matching
  • BLX1: TQG connection for use with Shure lavalier, headset, earset and instrument microphones and guitar cables
  • BLX1: Easily accessible On / Off switch
  • BLX88: XLR and 1/4" output connectors
  • BLX88: Microprocessor-controlled internal antenna diversity
  • BLX88: Two-color audio status indicator LED, Green-Normal audio levels, Red-Excessive audio levels (overload / clipping)
  • CVL Mic: Miniature lavalier microphone with included tie clip offers low visibility and hands-free use
  • CVL Mic: Permanently charged electret condenser element provides clear vocal reproduction
  • CVL Mic: Unidirectional cardioid polar pattern rejects unwanted noise for improved sound quality
  • CVL Mic: Included windscreen reduces plosives, wind and breath sounds
  • CVL Mic: Tailored frequency response optimized for speaking and presentations
  • CVL Mic: TA4F (TQG) connector seamlessly integrates with Shure wireless systems
  • CVL Mic: Legendary Shure precision engineering for durability and performance

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Quick and easy receiver frequency matching
  • TQG connection for use w Shure audio equipment
  • Easily accessible On / Off switch
  • XLR and 1/4" output connectors
  • Microprocessor-controlled internal antenna diversity
  • Two-color audio status indicator LED

What's in the box:

  • Shure BLX88 Dual-Channel Receiver
  • (2) BLX1 Bodypack Transmitter
  • (2) CVL Lavalier Microphones
  • Power Supply
  • Lavalier Clip
  • Lavalier Windscreens
  • User Guide
  • Shure Warranty
