Shure PGXD24/SM86-X8 Handheld Digital Wireless System with SM86 Mic
See all Shure items

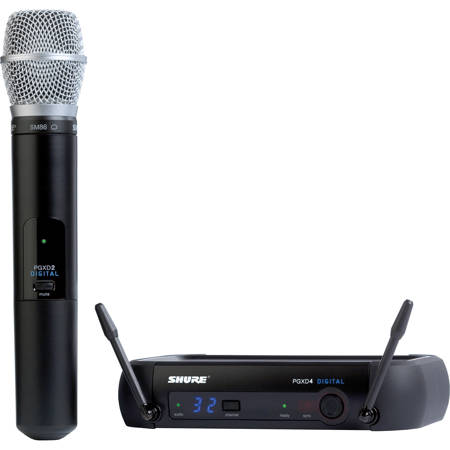

Shure PGXD24/SM86-X8 Handheld Digital Wireless System with SM86 Microphone, X8 (902-928 MHz) Band

SKU: SH24SM86X8

This item is no longer available.

Recommended Alternatives

Shure BLX24/SM58: Picture 1 regular
Shure BLX24/SM58 Single-Ch Wireless Receiver System with BLX2/SM58 Handheld Mic
$389.00$349.00
Shure GLXD14+: Picture 1 regular
Shure GLXD14+ Dual Band Digital Wireless System w/WL185 Lav Mic, Z3: 2.4/5.8GHz
$619.00
Shure GLXD14+: Picture 1 regular
Shure GLXD14+ Dual Band Digital Wireless System w/WL93 Lav Mic, Z3: 2.4/5.8GHz
$862.00$689.00
Shure GLXD14+: Picture 1 regular
Shure GLXD14+ Dual Band Digital Wireless System w/BETA98H/C Mic, Z3: 2.4/5.8GHz
$987.00$789.00
See More Recommendations
Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shure PGXD24/SM86-X8 Specifications

  • Transmitter: Audio Input Level

    +5 dBV maximum at -10 dB gain position
    -5 dBV maximum at 0 dB gain position

  • Transmitter: Gain Adjustment Range

    10 dB

  • Transmitter: RF Output Power

    10 mW varies by region

  • Transmitter: Housing

    Molded PC/ABS handle and battery cup

  • Transmitter: Power Requirements

    2 "AA" size alkaline or rechargeable batteries

  • Transmitter: Battery Life

    up to 9 hours

  • Receiver: Housing

    ABS

  • Receiver: Sensitivity

    -102 dBm @ 10 -5 BER

  • Receiver: Power Requirements

    12-18 V DC @ 150 mA, supplied by external power supply (tip positive)

  • Receiver: Audio LED

    Red: 2 dB below clip
    Amber: 12 dB below clip
    Green: 50 dB below clip

  • Receiver: Audio Output Level

    XLR connector: -2.5 dBV (into 3 kOhm load)
    6.35 mm (1/4") Connector: +10 dBV (into 10 kOhm load) (1 kHz tone)

  • Receiver: Impedance

    XLR: 50 ohms
    6.35 mm (1/4"): 50 ohms

  • Receiver: Pin Assignments

    XLR: 1=ground, 2=hot, 3=cold
    6.35 mm (1/4") TRS: Tip=audio, Ring=no audio, Sleeve=ground

  • RF Carrier Range

    X8: 902-928 MHz

  • Audio Frequency Response

    20-20000 Hz

  • Dynamic Range

    >108 dB, A-weighted

  • Operating Temperature Range

    -18deg.C (0deg.F)- +50deg.C (122deg.F)

  • Dimensions

    Transmitter: 254 mm X 51 mm (10 X 2 in.)
    Receiver: 40 mm X 181 mm X 104 mm (1.57" x 7.12" x 4")

  • Weight

    Transmitter: 349 g (12.3 oz)
    Receiver: 289 g (10.2 oz)

  • UPC Code

    042406190640

0 Accessories for Shure PGXD24/SM86-X8 Handheld Digital Wireless System with SM86 Microphone, X8 (902-928 MHz) Band

About Shure PGXD24/SM86-X8

The Shure PGXD24/SM86-x8 Handheld Digital Wireless System with SM86 Mic, with state-of-the-art, 24-bit digital audio and trusted Shure microphones, delivers stunning sound and a strong, clean RF signal. The SM86 wireless capsule is a top choice among vocalists for its smooth extended frequency response.

Shure PGXD24/SM86-X8 Features

  • Power, mute and battery status LED
  • Up to 9 hours of continuous use from 2 AA batteries
  • 200 ft (60 m) operating range
  • 10 dB of adjustable gain
  • Lockable interface prevents accidental setting changes
  • Rugged construction for reliable performance show after show

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Power, mute and battery status LED
  • Up to 9 hours of continuous use from 2 AA batteries
  • 200 ft (60 m) operating range
  • 17 dB Adjustable gain
  • 10 dB of adjustable gain
  • Lockable interface prevents accidental setting changes

What's in the box:

  • Shure PGXD4 Receiver
  • PGXD2 Handheld Transmitter
  • SM86 Mic
  • Clip
  • Power Supply
  • 2 AA Batteries
  • User Guide
  • Shure Warranty
