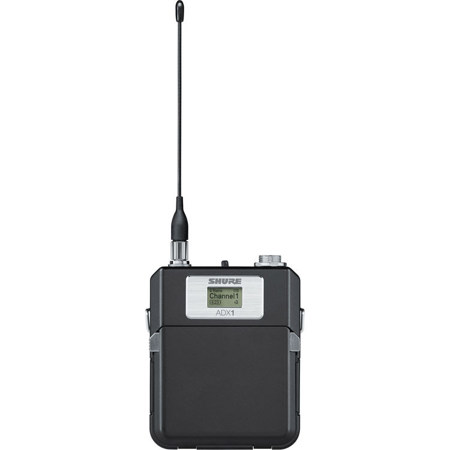

Shure ADX1 Wireless Bodypack Transmitter with TA4M Connector, G57: 470 to 616MHz
See all Shure items

Shure ADX1 ShowLink-Enabled Wireless Bodypack Transmitter with TA4M Connector, G57: 470 to 616MHz

SKU: SHA1G57
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
Shure ADX2 Handheld Transmitter with KSM9 Mic Capsule, G57: 470-616 MHz, Black
$3,476.00
$2,781.00
undefined undefined: Picture 1 regular
Shure AD1 Wireless Bodypack Transmitter with TA4 Connector, G57: 470 to 616MHz
$1,222.00
$978.00
undefined undefined: Picture 1 regular
Shure AD1 Bodypack Transmitter with 3-Pin LEMO Connector, G57: 470 to 616MHz
$1,324.00
$1,059.00
undefined undefined: Picture 1 regular
Shure AD2/N8 Digital Wireless Handheld Tx with N8 Mic Capsule, G57: 470-616MHz
$1,693.00
$1,354.00
undefined undefined: Picture 1 regular
Shure AD2 Wireless Handheld Transmitter, BETA 58A Head, G57: 470-616MHz, Black
$1,514.00
$1,211.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shure ADX1 Specifications

Frequency Range

Frequency Range

Jump to...

  • Frequency Range

    G57: 470-616MHz

Gain Offset Range

Jump to...

  • Gain Offset Range

    -12 to 21 dB (in 1 dB steps)

Audio Input

Jump to...

  • Connector

    4-pin Male Mini TQG (TA4M) Connector

  • Configuration

    Unbalanced

  • Impedance

    TA4M: 1 MOhms

  • Maximum Input Level

    At 1 kHz at 1% THD:
    Pad Off: 8.5 dBV (7.5 Vpp)
    Pad On: 20.5 dBV (30 Vpp)

  • Preamplifier Equivalent Input Noise

    -120 dBV, A-weighted, typical (System Gain Setting >= +20)

RF Output

Jump to...

  • Connector

    SMA

  • Antenna Type

    UHF 1/4 Wave

  • Impedance

    50 Ohms

  • Occupied Bandwidth

    <200 kHz

  • Modulation Type

    Shure Axient Digital Proprietary

  • Power

    2 mW, 10 mW, 40mW

ShowLink

Jump to...

  • Network Type

    IEEE 802.15.4

  • Antenna Type

    ZigBee Dual Conformal

  • Frequency Range

    2.40 to 2.4835 GHz (24 Channels)

  • RF Output Power

    10 dBm (ERP)

Battery

Jump to...

  • Battery Type

    Shure SB910 Rechargeable Li-Ion

  • Battery Runtime

    SB910: up to 10 hours at 10 mW

General

Jump to...

  • Housing

    Aluminum

  • Dimensions (HxWxD)

    91 x 68 x 19mm (3.58 x 2.68 x 0.75")

  • Weight

    142g (5.01 oz) without battery

About Shure ADX1

The ADX1 is a wireless bodypack transmitter compatible with Axient Digital Wireless Systems. ADX1, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design and ShowLink remote control for real-time parameter adjustments right from the booth. Includes two SB910 rechargeable batteries.

Design
• TA4 audio connector
• Backlit LCD with easy to navigate menu and controls
• Durable, moisture-resistant, lightweight metal case
• Flexible 1/4 wave antenna
• Menu and power lockout

Power
• Shure SB910 rechargeable batteries for up to 10 hours of runtime, precision metering and zero memory effect
• AAA-compatible battery sled available
• External charging contacts for docked charging

Shure ADX1 Features

  • Removable antenna and fully concealed buttons and switch
  • TA4M connector
  • Advanced control menu with powerful features
  • Durable, moisture-resistant, lightweight metal case
  • Up to 10 hours of runtime with SB910 rechargeable battery
  • Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
  • External contacts for docked charging
  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Encryption-enabled, secure transmission
  • 184 MHz tuning range
  • 20 Hz to 20 kHz range with flat frequency response
  • Automatic input staging optimizes gain setting
  • AES 256-bit encryption-enabled for secure transmission
  • >120 dB, A-weighted, System Gain at +10
  • Digital output: >125dB, A-weighted (Dante, AES3, AES67)
  • 100 meter (300 feet) line-of-sight operating range
  • Built-in tone generator and RF markers to facilitate walk-testing
  • Switchable Power Levels = 2/10/40 mW
  • Frequency Diversity selection using two bodypacks

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Shure ADX1 ShowLink-Enabled Wireless Bodypack Transmitter with TA4M Connector
  • 2x SB910 Rechargeable Battery
  • 1/4 Wave Antenna
  • Transmitter Carrying Case
  • Belt Clip
  • Zipper Bag
  • Shure 2 Year Limited Warranty
