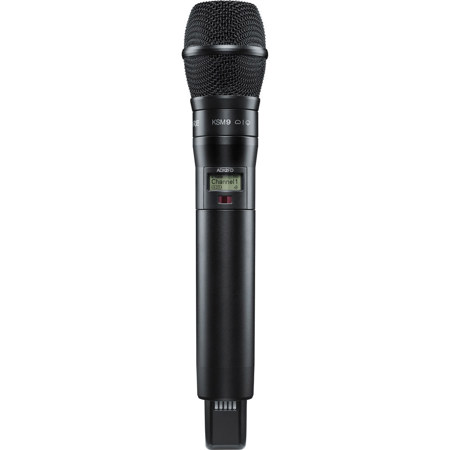

Shure ADX2FD Handheld Transmitter with KSM9 Mic Capsule, G57: 470-616 MHz,Black
See all Shure items

Shure ADX2FD ShowLink-Enabled Frequency Diversity Wireless Handheld Transmitter with KSM9 Condenser Microphone Capsule, G57: 470-616 MHz, Black

SKU: SHA2FDK9BG57
Be the first to review this item

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular

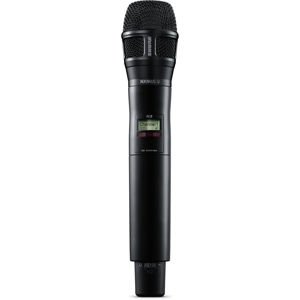

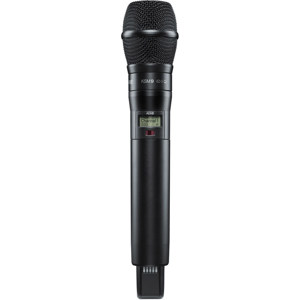

Shure ADX2 Handheld Transmitter with KSM9 Mic Capsule, G57: 470-616 MHz, Black
$3,476.00
$2,781.00
undefined undefined: Picture 1 regular
Shure AD1 Wireless Bodypack Transmitter with TA4 Connector, G57: 470 to 616MHz
$1,222.00
$978.00
undefined undefined: Picture 1 regular

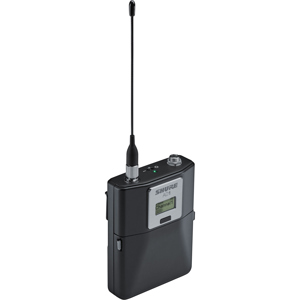

Shure AD1 Bodypack Transmitter with 3-Pin LEMO Connector, G57: 470 to 616MHz
$1,324.00
$1,059.00
undefined undefined: Picture 1 regular
Shure AD2/N8 Digital Wireless Handheld Tx with N8 Mic Capsule, G57: 470-616MHz
$1,693.00
$1,354.00
undefined undefined: Picture 1 regular

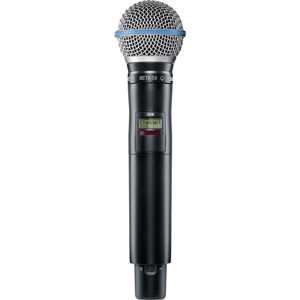

Shure AD2 Wireless Handheld Transmitter, BETA 58A Head, G57: 470-616MHz, Black
$1,514.00
$1,211.00
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shure ADX2FD/K9B Specifications

  • Mic Offset Range

    -12 to 21 dB (in 3 dB steps)

  • Battery Type

    Shure SB920 Rechargeable Li-Ion

  • Battery Runtime at 10 mW

    Single Carrier Mode: Up to 9 hours
    Frequency Diversity: Up to 6.5 hours

  • Housing

    Cast Aluminum

  • Operating Temperature Range

    -18 to 50 deg. C (-0 to 122 deg. F)

  • Storage Temperature Range

    -29 to 74 deg. C (-20 to 165 deg. F)

  • Audio Input: Configuration

    Unbalanced

  • Audio Input: Maximum Input Level

    1 kHz at 1% THD: 145 dB SPL, typical (dependent on microphone type)

  • RF Output: Antenna Type

    Integrated Dual Band Helical

  • RF Output: Occupied Bandwidth

    <200 kHz

  • RF Output: Channel-to-Channel Spacing

    Standard Mode: 350 kHz
    High Density Mode: 125 kHz

  • RF Output: Modulation Type

    Shure Axient Digital Proprietary

  • RF Output: Power

    Single Carrier Mode : 2 mW, 10 mW, 50 mW
    Frequency Diversity : 2 mW, 10 mW, 20 mW

  • ShowLink: Network Type

    IEEE 802.15.4

  • ShowLink: Antenna Type

    Zigbee Dual Conformal

  • ShowLink: Frequency Range

    2.40 to 2.4835 GHz (24 Channels)

  • ShowLink: RF Output Power

    10 dBm (ERP)

  • Frequency Band

    G57: 470 to 616 MHz

  • Dimensions (LxDia.)

    254 x 51mm (10.00 x 2.01")

  • Weight

    179g (6.31 oz) (Without Battery)

About Shure ADX2FD/K9B

Handheld Wireless Microphone Transmitter
ADX2FD/K9, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design and ShowLink remote control for real-time parameter adjustments right from the booth. The ADX2FD/K9 is a handheld wireless microphone transmitter compatible with Axient Digital Wireless Systems.

Shure ADX2FD/K9B Features

  • Ability to transmit RF signal on two discrete carriers
  • Optional 50mW High Power mode for driving increased power on a single frequency
  • Durable, moisture-resistant, lightweight metal case in black finish
  • Up to 6.5 hours of runtime with SB920 rechargeable battery when transmitting on two RF carriers (up to 9 hours battery life when transmitting on a single RF carrier)
  • External contacts for docked charging with optional fully covered radome
  • Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Encryption-enabled, secure transmission

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Durable, moisture-resistant, lightweight metal case in black finish
  • Up to 9 hours of runtime with SB920 rechargeable battery
  • External contacts for docked charging with optional fully covered radome
  • 184 MHz tuning range
  • 20 Hz to 20 kHz range with flat frequency response
  • Automatic input staging optimizes gain setting

What's in the box:

  • Shure ADX2FD Handheld Transmitter
  • KSM9 Microphone Capsule
  • 2x SB920 Rechargeable Battery
  • Zipper Bag
  • Threaded Adapter
  • Swivel Adapter
  • Shure 2 Year Limited Warranty
