Shure ADX2 Handheld Transmitter with KSM9 Mic Capsule, G57: 470-616MHz, Nickel
See all Shure items

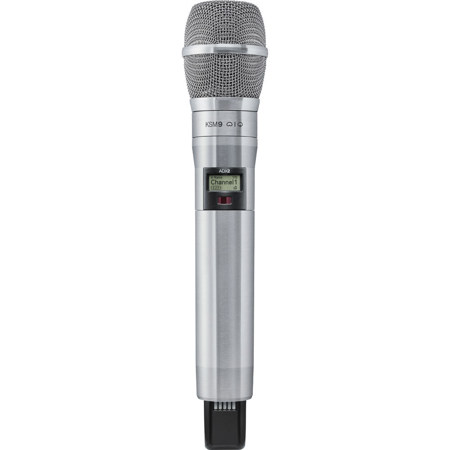

Shure ADX2 ShowLink-Enabled Handheld Transmitter with KSM9 Condenser Wireless Microphone Capsule, G57: 470 to 616MHz, Nickel

SKU: SHA2K9NG57
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
Shure ADX2 Handheld Transmitter with KSM9 Mic Capsule, G57: 470-616 MHz, Black
$3,476.00
$2,781.00
undefined undefined: Picture 1 regular
Shure AD1 Wireless Bodypack Transmitter with TA4 Connector, G57: 470 to 616MHz
$1,222.00
$978.00
undefined undefined: Picture 1 regular
Shure AD1 Bodypack Transmitter with 3-Pin LEMO Connector, G57: 470 to 616MHz
$1,324.00
$1,059.00
undefined undefined: Picture 1 regular
Shure AD2/N8 Digital Wireless Handheld Tx with N8 Mic Capsule, G57: 470-616MHz
$1,693.00
$1,354.00
undefined undefined: Picture 1 regular
Shure AD2 Wireless Handheld Transmitter, BETA 58A Head, G57: 470-616MHz, Black
$1,514.00
$1,211.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shure ADX2/KSM9 Specifications

Frequency Band

Frequency Band

Jump to...

  • Frequency Band

    G57: 470 to 616MHz

Microphone

Jump to...

  • Mic Offset Range

    -12 to 21 dB (in 3 dB steps)

  • Microphone Type

    KSM9 Dual-Pattern Condenser Wireless Microphone Capsule

Audio Input

Jump to...

  • Configuration

    Unbalanced

  • Maximum Input Level

    At 1 kHz at 1% THD: 145 dB SPL, typical
    Note: dependent on microphone type

RF Output

Jump to...

  • Antenna Type

    Dual-Band Helical

  • Occupied Bandwidth

    <200 kHz

  • Modulation Type

    Shure Axient Digital Proprietary

  • Power

    2 mW, 10 mW, 40mW

ShowLink

Jump to...

  • Network Type

    IEEE 802.15.4

  • Antenna Type

    ZigBee Dual Conformal

  • Frequency Range

    2.40 to 2.4835 GHz (24 Channels)

  • RF Output Power

    10 dBm (ERP)

Battery

Jump to...

  • Battery Type

    Shure SB920 Rechargeable Li-Ion

  • Battery Runtime

    Shure SB920: Up to 9 hours at 10 mW

General

Jump to...

  • Housing

    Cast Aluminum

  • Dimensions (LxDia)

    254 x 51mm (10.00 x 2.01")

  • Weight

    179g (6.31 oz) without battery

About Shure ADX2/KSM9

The ADX2/K9 is a handheld wireless microphone transmitter compatible with Axient Digital Wireless Systems. ADX2/K9, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design and ShowLink remote control for real-time parameter adjustments right from the booth.

Design
• KSM9 Dual-Pattern Condenser Wireless Microphone Capsule
• Backlit LCD with easy to navigate menu and controls
• Rugged metal construction
• Menu and power lockout

Power
• Shure SB920 rechargeable batteries for up to 9 hours of runtime, precision metering and zero memory effect
• External charging contacts for docked charging

Shure ADX2/KSM9 Features

  • Durable, moisture-resistant, lightweight metal case in Nickel finish
  • Up to 9 hours of runtime with SB920 rechargeable battery
  • External contacts for docked charging with optional fully covered radome
  • Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • 184 MHz tuning range
  • 20 Hz to 20 kHz range with flat frequency response
  • Automatic input staging optimizes gain setting
  • AES 256-bit encryption-enabled for secure transmission
  • >120 dB, A-weighted, System Gain at +10
  • Digital output: >125dB, A-weighted (Dante, AES3, AES67)
  • 100 meter (300 feet) line-of-sight operating range
  • Switchable Power Levels = 2/10/40 mW (region dependent)
  • Built-in tone generator and RF markers to facilitate range-testing

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Durable, moisture-resistant, lightweight metal case in Nickel finish
  • Up to 9 hours of runtime with SB920 rechargeable battery
  • External contacts for docked charging with optional fully covered radome
  • 184 MHz tuning range
  • 20 Hz to 20 kHz range with flat frequency response
  • Automatic input staging optimizes gain setting

What's in the box:

  • Shure ADX2 ShowLink-Enabled Handheld Transmitter with KSM9 Condenser Wireless Microphone Capsule
  • 2x SB920 Rechargeable Battery
  • Zipper Bag
  • Threaded Adapter
  • Swivel Adapter
  • Shure 2 Year Limited Warranty
