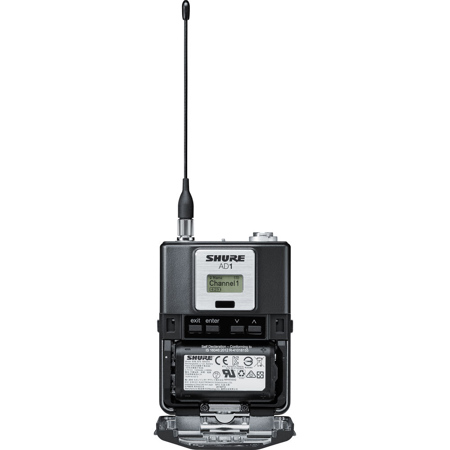

Shure AD1 Axient Digital Bodypack Transmitter with TQG (TA4F) Connector
See all Shure items

Shure AD1 Axient Digital Bodypack Transmitter with TQG (TA4F) Connector

SKU: SHAD1
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the purpose of the TQG (TA4F) connector on the AD1 Axient Digital Bodypack Transmitter?

The TQG (TA4F) connector on the AD1 Axient Digital Bodypack Transmitter is designed to provide a secure and stable connection to a variety of wireless microphone systems and soundboards. It's widely used in the professional audio industry for its durability and reliability.

What is the High Density mode on the AD1 Axient Digital Bodypack Transmitter?

The High Density mode on the AD1 Axient Digital Bodypack Transmitter is designed to optimize signal integrity in crowded RF environments. It allows for a clear and stable signal transmission, even in environments with a lot of interference.

What is the benefit of the rechargeable power system on the AD1 Axient Digital Bodypack Transmitter?

The rechargeable power system on the AD1 Axient Digital Bodypack Transmitter offers convenience and efficiency. It features dockable charging, which allows you to easily recharge the transmitter between uses, ensuring it's ready for your next event or performance.

Is the AD1 Axient Digital Bodypack Transmitter compatible with other wireless systems?

Yes, the AD1 Axient Digital Bodypack Transmitter is compatible with Axient Digital Wireless Systems. Its TQG (TA4F) connector also allows it to connect to a variety of other wireless microphone systems and soundboards.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shure AD1 Specifications

Audio Input

Audio Input

Jump to...

  • Connector

    4-Pin male mini connector (TA4M)

  • Configuration

    Unbalanced

  • Impedance

    TA4M: 1 MOhms

  • Maximum Input Level

    Pad Off: 8.5 dBV (7.5 Vpp)
    Pad On: 20.5 dBV (30 Vpp) (1kHz at 1% THD)

  • Preamplifier Equivalent Input Noise

    -120 dBV, A-weighted, typical

RF Output

Jump to...

  • Connector

    SMA

  • Antenna Type

    1/4 wave

  • Impedance

    50 Ohms

  • Occupied Bandwidth

    <200kHz

  • Modulation Type

    Shure Axient Digital Proprietary

  • Power

    2 mW, 10 mW, 35 mW

General

Jump to...

  • Gain Offset Range

    -12 to 21 dB (in 1 dB steps)

  • Battery Type

    Shure SB900A Rechargeable Li-Ion or LR6 AA batteries 1.5 V

  • Battery Runtime at 10 mW

    Shure SB900A: up to 9 hours
    Alkaline: up to 8 hours

  • Housing

    Cast Aluminum

  • Dimensions (HxWxD)

    3.4 x 2.6 x 0.9" (8.64 x 6.60 x 2.29cm)

  • Weight

    5.47 oz (155.07g)

About Shure AD1

AD1 delivers impeccable audio quality and RF performance with wide-tuning, High Density mode and encryption. Features durable metal construction, rechargeable power with dockable charging and TA4 connector. The AD1 is a wireless bodypack transmitter compatible with Axient Digital Wireless Systems. With breakthrough RF performance and wide tuning up to 184 MHz, the AD1 puts professional-quality wireless digital audio within reach.

Shure AD1 Features

  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Encryption-enabled, secure transmission
  • Detachable 1/4-wave antenna
  • AA or SB900A lithium-ion rechargeable batteries for convenient power options
  • External contacts for docked charging

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Shure AD1 Axient Digital Bodypack Transmitter with TQG (TA4F) Connector
  • 2x AA Alkaline Batteries
  • 1/4 Wave Antenna
  • Threaded TAF4 Adapter
  • Zipper Bag
  • Belt Clip
  • Shure 2 Year Warranty
