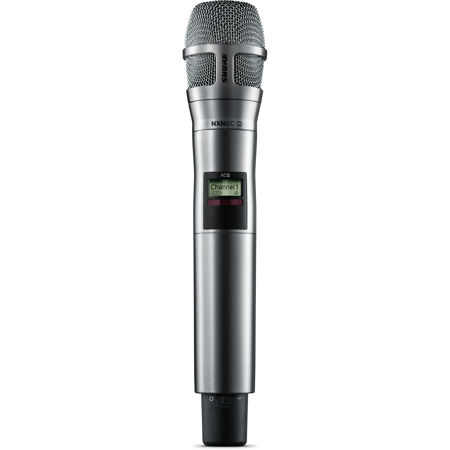

Shure AD2/N8 Digital Wireless Handheld Tx with N8 Mic Capsule, G57: 470-616MHz Cardioid Nickel

SKU: SHAD2CNG57 MFR: AD2/N8CN=-G57
Earn VIP Reward Points

Key Features

  • Rugged AD2/N8 Digital Wireless Handheld Transmitter with durable metal construction
  • Nexadyne 8 cardioid/supercardioid dynamic microphone capsule for clear, natural vocals
  • Wide-tuning High Density mode and AES 256-bit encryption for superior RF performance
  • 20 Hz to 20 kHz frequency range with flat response and >120 dB dynamic range
  • Shure Revonic dual-engine transducer technology minimizes noise and enhances clarity
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure AD2/N8 Digital Wireless Handheld Tx with N8 Mic Capsule, G57: 470-616MHz Specifications

General

General

Jump to...
  • Available Colors

    Black, Nickel

AD2: General

Jump to...
  • Housing Material

    Cast Aluminum

  • Gain Offset Range

    -12 to 21 dB (in 1 dB Steps)

  • Frequency Range

    G57: 470-616MHz

  • Battery

    SB900B Rechargeable Li-Ion or LR6 AA Batteries 1.5 V

  • Battery Run Time @10 mW

    Shure SB900B: up to 8.5 hours
    Alkaline: up to 8 hours

AD2: Audio Input

Jump to...
  • Configuration

    Unbalanced

  • Maximum Input Level

    145 dB SPL, Typical (SM58) (1 kHz at 1% THD)

AD2: RF Output

Jump to...
  • Antenna Type

    Integrated Single-Band Helical

  • Occupied Bandwidth

    <200 kHz

  • Modulation Type

    Shure Axient Digital Proprietary

  • Power

    2 mW, 10 mW, 35 mW (Varies by region. See Frequency Range and Output Power Table.)

  • Specific Absorption Rate (SAR)

    <0.19 W/kg

AD2: Battery

Jump to...
  • Battery Info

    Required, Included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

AD2: Physical

Jump to...
  • Dimensions (L x Dia.)

    10.1 x 2" (256 x 51mm)

  • Weight

    Without batteries: 12 oz (340g)

N8 Microphone Capsule

Jump to...
  • Available Polar Patterns

    Cardioid, Supercardioid

  • Material

    Die-cast aluminum with black paint

  • Type

    Dynamic (moving coil)

  • Frequency Response

    50 to 20.000 Hz

  • Output Impedance

    Cardioid: 300 Ohm
    Supercardioid: 450 Ohm

  • Sensitivity Open circuit voltage

    @ 1 kHz, typical
    Cardioid: -54,0 dBV/Pa (2,00 mV) 1 Pa = 94 dB Schalldruckpegel
    Supercardioid: -51,0 dBV/Pa (2,81 mV) 1 Pa = 94 dB Schalldruckpegel

  • Connector

    Three-pin professional audio (XLR), male

  • Weight

    Cardioid: 910 oz (258g)
    Supercardioid: 103 oz (294g)

  • UPC Code

    042406832328

About Shure AD2/N8 Digital Wireless Handheld Tx with N8 Mic Capsule, G57: 470-616MHz

Why choose the AD2/N8 Digital Wireless Handheld Transmitter with N8 Microphone Capsule, G57: 470-616MHz? This robust and versatile device is designed for professional vocal performance, combining cutting-edge technology with durable construction. The AD2/N8 features the Nexadyne 8 cardioid/supercardioid dynamic microphone capsule, renowned for its exceptional audio clarity and noise reduction capabilities. Available in a sleek black or nickel finish, this transmitter is perfect for any stage setting.

The AD2 Digital Wireless Handheld Transmitter is engineered for superior audio quality and RF performance. It boasts a wide-tuning High Density mode, AES 256-bit encryption for secure transmission, and a remarkable 20 Hz to 20 kHz frequency range with a flat response. With a dynamic range exceeding 120 dB and a line-of-sight operating range of up to 100 meters (300 feet), this transmitter ensures your sound is heard clearly and consistently.

Designed with user convenience in mind, the transmitter includes interchangeable Shure microphone cartridges and a backlit LCD for easy navigation. Its rugged metal construction ensures durability, while the menu and power lockout features prevent accidental changes during performances. Power options include up to 8 hours of continuous use with 2 AA alkaline batteries or extended life with the Shure lithium-ion rechargeable battery, which offers precision metering and zero memory effect. External charging contacts allow for convenient docked charging.

The Nexadyne 8 Dynamic Vocal Microphone Capsule, integral to this system, utilizes Shure's patented Revonic dual-engine transducer technology. This innovative design employs two precisely calibrated transducers to deliver natural and vivid clarity, minimizing mechanical noise and stage bleed. Available in both cardioid and supercardioid polar patterns, the Nexadyne 8 ensures your vocals are clean and natural, whether you're reaching the back of the venue or cutting through a dense mix.

Additional features of the Nexadyne 8 include a dent-resistant hardened grille, acoustic signal processing for exceptional clarity, and industry-leading Shure reliability standards. It ships with a protective zipper case, mic clip, and brass stand adapter, and is compatible with all Shure handheld transmitters featuring interchangeable microphone capsules.

Choose the AD2/N8 Digital Wireless Handheld Transmitter with N8 Microphone Capsule for a reliable, high-performance solution that meets the demands of professional vocalists and sound engineers alike.

Shure AD2/N8 Digital Wireless Handheld Tx with N8 Mic Capsule, G57: 470-616MHz Features

  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Rugged metal construction in black finish
  • Backlit LCD with easy-to-navigate menu and controls
  • Low-profile, lockable power switch
  • Encryption-enabled, secure transmission
  • AA or SB900B lithium-ion rechargeable batteries for convenient power options
  • External contacts for docked charging

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Rugged AD2/N8 Digital Wireless Handheld Transmitter with durable metal construction
  • Nexadyne 8 cardioid/supercardioid dynamic microphone capsule for clear, natural vocals
  • Wide-tuning High Density mode and AES 256-bit encryption for superior RF performance
  • 20 Hz to 20 kHz frequency range with flat response and >120 dB dynamic range
  • Shure Revonic dual-engine transducer technology minimizes noise and enhances clarity

What's in the box:

  • Shure AD2/N8 Digital Wireless Handheld Transmitter with N8 Microphone Capsule
  • Brass Adapter
  • Swivel Adapter
  • 2x AA Alkaline Batteries
  • WA371 Mic Clip
  • Battery Contact Cover
  • Zipper Bag
