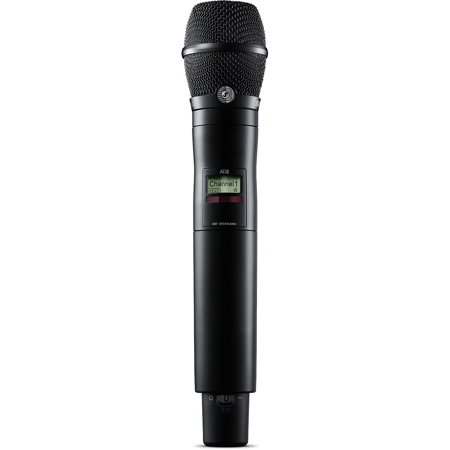

Shure AD2/K11 Digital Wireless Handheld Tx w/KSM11 Mic Capsule, G57: 470-608MHz Black

SKU: SHAD2K11BG57 MFR: AD2/K11B=-G57
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with the Shure KSM11 microphone capsule.
  • Enjoy reliable wireless performance with low latency for seamless audio.
  • This digital wireless handheld transmitter operates in the 470-608MHz range.
  • Perfect for live performances, providing clear and consistent vocal clarity.
  • The rugged aluminum build ensures durability for demanding stage environments.
  • Achieve long battery life with either SB900B or AA batteries for extended use.
See More Product Details

Product Options

Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure AD2/K11 Digital Wireless Handheld Tx w/KSM11 Mic Capsule, G57: 470-608MHz Specifications

AD2: General

AD2: General

Jump to...
  • Available Colors

    Black, Nickel

  • Housing Material

    Cast Aluminum

  • Gain Offset Range

    -12 to 21 dB (in 1 dB Steps)

  • Frequency Range

    G57: 470-608MHz

  • Battery

    SB900B Rechargeable Li-Ion or LR6 AA Batteries 1.5 V

  • Battery Run Time @10 mW

    Shure SB900B: up to 8.5 hours
    Alkaline: up to 8 hours

AD2: Audio Input

Jump to...
  • Configuration

    Unbalanced

  • Maximum Input Level

    145 dB SPL, Typical (SM58) (1 kHz at 1% THD)

AD2: RF Output

Jump to...
  • Antenna Type

    Integrated Single-Band Helical

  • Occupied Bandwidth

    <200 kHz

  • Modulation Type

    Shure Axient Digital Proprietary

  • Power

    2 mW, 10 mW, 35 mW (Varies by region. See Frequency Range and Output Power Table.)

  • Specific Absorption Rate (SAR)

    <0.19 W/kg

AD2: Battery

Jump to...
  • Battery Info

    Required, Included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

AD2: Physical

Jump to...
  • Dimensions (L x D)

    10.1 x 2" (256 x 51mm)

  • Weight

    12 oz (340g) (Without batteries)

KSM11 Capsule

Jump to...
  • Housing Material

    Aluminum and Steel Grille

  • Type

    Electret Condenser

  • Polar Pattern

    Cardioid

  • Frequency Response

    50 to 20,000 Hz

  • Output Impedance (1 kHz)

    250 Ohm with 5 VDC

  • Sensitivity

    -46.5 dBV/Pa (At 1 kHz, open circuit voltage)

  • Maximum SPL with 5 VDC

    151 dB SPL

  • Signal-to-Noise Ratio

    71.5 dB

  • Dynamic Range with 5 VDC

    128.5 dB

  • Clipping Level with 5 VDC

    10 dBV

  • Self Noise

    22.5 dB SPL (Typical, equivalent SPL, A-weighted)

  • Polarity

    Positive pressure on diaphragm produces positive voltage into transmitter with respect to ground

  • Power Requirements

    5 Volt Bias from Shure Transmitter

  • Dimensions (Dia. x H)

    1.92 x 3.0" (48.7 x 76.3mm)

  • Weight

    5.23 oz (150g)

  • UPC Code

    42406688260

About Shure AD2/K11 Digital Wireless Handheld Tx w/KSM11 Mic Capsule, G57: 470-608MHz

AD2/K11 combines the prized combination of full lows, clear mids and high-end of the KSM11 Cardioid Condenser Microphone with the RF performance with wide-tuning, High Density mode, and encryption of Axient Digital. Features durable metal construction, rechargeable power with dockable charging, and black or nickel finish options.

The AD2/K11 is a handheld wireless microphone transmitter compatible with Axient Digital Wireless Systems.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.


- AD2 Digital Wireless Handheld Transmitter -
AD series handheld transmitters deliver impeccable audio quality and RF performance with wide-tuning, High Density (HD) mode, and encryption. Features durable metal construction, AA or SB900B rechargeable power (with dockable charging), and black or nickel finish options.

Features
• Two transmission modes:
• Standard for optimal coverage
• New High Density mode for maximum system channel count and robust coverage
• Encryption-enabled, secure transmission
• External contacts for docked charging
• AA or SB900B Li-ion rechargeable batteries
• Backlit LCD with easy-to-navigate menu and controls
• Low-profile, lockable power switch

- KSM11 Wireless Microphone Capsule -
The KSM11 Wireless Vocal Microphone Capsule redefines vocal performance by providing a prized combination of full lows, clear mids and high-end detail, without the need for extensive EQ. A cardioid condenser designed specifically for live performance, event recording and premium streaming, the KSM11 allows digital wireless systems to present live vocals that must be heard to be believed.

As modern live stages have transitioned to digital technology, the KSM11 cardioid condenser microphone was developed to take advantage of increased digital audio linearity - equal output across the frequency range. The KSM11 delivers an elegant balance of full low end, rich mid-range, essential high-end detail, and incredible off-axis rejection. Professional engineers have a near-perfect presentation of vocal performance to build their mixes around, EQing by choice and not default. You've simply never heard wireless vocals sounding this good.

Features
• Proprietary wireless condenser capsule utilizing a 3/4" gold diaphragm and premium electronics for exceptional dynamic range and transient response
• Highly consistent, deep cardioid polar pattern reduces off-axis phase distortion for pristinely focused vocal reproduction to provide rich and full low frequency response, linear and transparent mid-range and natural high-end detail
• Streamlined design for an overall smaller and lighter capsule footprint
• Advanced suspended isolation system for virtually zero handling noise
• Dent-resistant hardened steel grille with 3-stage plosive reduction pop filtering for consistent, artifact-free vocals
• Available with ULX-D transmitters in black and Axient Digital transmitters in black and nickel. Compatible with all Shure handheld transmitters with interchangeable microphone capsules

Shure AD2/K11 Digital Wireless Handheld Tx w/KSM11 Mic Capsule, G57: 470-608MHz Features

  • Works with Axient Digital Wireless Systems
  • Features the KSM11 cartridge
  • Offers more than 11 hours of continuous battery life with Shure lithium-ion rechargeable batteries or 8 hours with AA batteries at 10 mW
  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Rugged metal construction in black or nickel finish
  • Backlit LCD with easy-to-navigate menu and controls
  • Low-profile, lockable power switch
  • Encryption-enabled, secure transmission
  • AA or SB900B lithium-ion rechargeable batteries for convenient power options
  • External contacts for docked charging

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience superior sound quality with the Shure KSM11 microphone capsule.
  • Enjoy reliable wireless performance with low latency for seamless audio.
  • This digital wireless handheld transmitter operates in the 470-608MHz range.
  • Perfect for live performances, providing clear and consistent vocal clarity.
  • The rugged aluminum build ensures durability for demanding stage environments.
  • Achieve long battery life with either SB900B or AA batteries for extended use.

What's in the box:

  • Shure AD2/K11 Digital Wireless Handheld Transmitter with KSM11 Microphone Capsule
  • 2x 80B8201 AA Alkaline Batteries
  • Euro-Threaded Adapter
  • Microphone Clip
  • Charging Contact Cover
  • Zipper Bag
  • Shure 2 Year Limited Warranty
