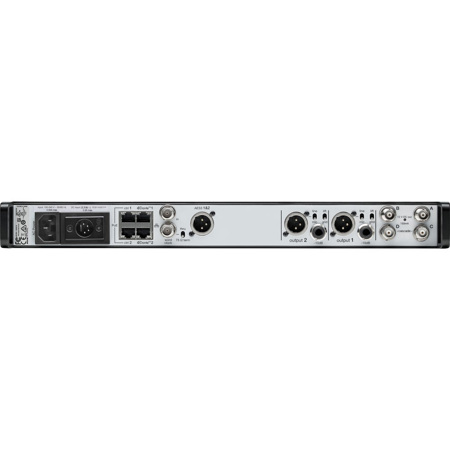

Shure AD4D Axient Digital Dual-Channel Wireless Receiver with Redundant DC Power-Input, Frequency Range A: 470-636MHz

SKU: SHAD4DDCA MFR: AD4D-DC=-A
Earn VIP Reward Points

Key Features

  • Experience superior audio clarity with this Shure wireless receiver for professional sound.
  • Dual-channel Axient receiver ensures reliable performance for critical live sound applications.
  • Enjoy low latency digital audio for seamless synchronization in broadcasts and performances.
  • This wireless microphone system offers a wide 470-636 MHz range, minimizing interference.
  • Benefit from redundant DC power input, ensuring uninterrupted operation during events.
  • Easily integrate into existing setups with versatile XLR and 1/4" audio output options.
See More Product Details
Special Order Item?Estimated to Ship: 08/14/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Shure AD4D-DC Specifications

Audio Output

Audio Output

Jump to...
  • Gain Adjustment Range

    -18 to +42 dB in 1 dB steps (plus mute setting)

  • Configuration

    1/4" (6.35mm): Transformer-coupled balanced (Tip=audio, Ring=no audio, Sleeve=ground)
    XLR: Transformer-coupled balanced (1=ground, 2=audio +, 3=audio -)

  • Impedance

    XLR Line Out: 100 Ohms

  • Output

    Full Scale 200-kOhms Load:
    1/4" (6.35 mm): +8 dBV
    XLR: LINE setting= +18 dBV, MIC Setting: -12 dBV

  • Mic/Line Switch

    30 dB pad

  • Phantom Power Protection

    Yes

Networking

Jump to...
  • Networking Interface

    10/100 Mb/s, 1 Gb/s, Dante digital audio

  • Network Addressing Capability

    DHCP or Manual IP address

  • Ethernet Cabling

    328' (100m) maximum length

Cascade Output

Jump to...
  • Connector Type

    BNC

  • Configuration

    Unbalanced, passive

  • Impedance

    50 Ohms

  • Insertion Loss

    0 dB, typical

RF Input

Jump to...
  • Spurious Rejection

    >80 dB, typical

  • Connector Type

    BNC

  • Impedance

    50 Ohms

  • Bias Voltage

    12 to 13.5 VDC, 150 mA maximum, per antenna, switchable on/off

  • RF Carrier Frequency Range

    A: 470-636 MHz

General

Jump to...
  • Housing

    Steel; Extruded aluminum

  • Power Requirements

    100 to 240 V AC, 50-60 Hz; 0.26 A max

  • Thermal Dissipation

    Maximum: 23 W (78 BTU/hr)
    Idle: 15 W (52 BTU/hr)

  • DC Input Voltage Range

    10.9-14.8 V DC

  • Maximum DC Input Current

    AD4D: 3.3 A

  • Protection Modes

    Overvoltage, Undervoltage, Reverse Polarity

  • 4-Pin XLR

    Pin 1: Negative; Pin 2: No Connection; Pin 3: No Connection; Pin 4: Positive

  • Dimensions (HxWxD)

    1.7 x 19.0 x 13.1" (4.32 x 48.26 x 33.27cm)

  • Weight

    10.1 lbs (4.58kg) without antennas

  • UPC Code

    042406529495

About Shure AD4D-DC

You'll experience unparalleled audio clarity and precision with the AD4D Axient Digital Dual-Channel Wireless Receiver, a high-quality, professional-grade product from the renowned brand, Shure. This advanced wireless receiver is designed to set a new benchmark in transparent digital audio and maximum spectral efficiency, making it an essential tool for audio professionals.

The AD4D Axient Digital Receiver is equipped with groundbreaking performance features, including wide tuning capabilities and a low latency function. Its High Density (HD) mode ensures robust performance even in the most challenging RF environments, making it a reliable choice for various audio applications.

This durable wireless receiver is compatible with all Axient Digital transmitters, offering you a seamless integration into your existing audio setup. Its networked control and signal routing options provide an unprecedented level of management and flexibility, streamlining your entire workflow.

With a frequency range of A: 470-636MHz, the AD4D Axient Digital Receiver is capable of picking up signals from a broad range of frequencies. This feature, coupled with its redundant DC power input, makes it an ideal choice for a variety of settings, including live performances, recording studios, and any application where superior wireless audio transmission is required.

Experience the difference of professional-grade audio equipment with the AD4D Axient Digital Dual-Channel Wireless Receiver, a testament to Shure's commitment to delivering reliable, high-quality audio solutions.

Shure AD4D-DC Features

  • Wide tuning range up to 184MHz
  • True digital diversity reception per channel for drop-out resistance
  • Networked control with Wireless Workbench and ShurePlus Channels app
  • Front panel headphone jack enables Dante Cue and Dante Browse monitoring
  • Configurable Ethernet switch for redundant Dante digital output
  • AES3 output
  • Channel Quality meter displays RF signal-to-noise
  • Locking AC connectors
  • DC module supports redundant power

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience superior audio clarity with this Shure wireless receiver for professional sound.
  • Dual-channel Axient receiver ensures reliable performance for critical live sound applications.
  • Enjoy low latency digital audio for seamless synchronization in broadcasts and performances.
  • This wireless microphone system offers a wide 470-636 MHz range, minimizing interference.
  • Benefit from redundant DC power input, ensuring uninterrupted operation during events.
  • Easily integrate into existing setups with versatile XLR and 1/4" audio output options.

What's in the box:

  • Shure AD4D Axient Digital Dual-Channel Wireless Receiver
  • Shure 2 Year Limited Warranty
