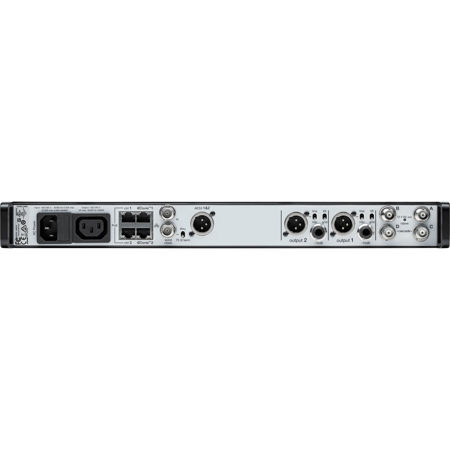

Shure AD4D Dual-CH Digital Receiver with BNC Bulkhead Adapter, Coaxial Antenna
See all Shure items

Shure AD4D Dual-Channel Digital Wireless Receiver with Rackmount Kit, BNC Bulkhead Adapter and Coaxial Antenna

SKU: SHAD4DUS
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Shure AD4D: Picture 1 regular
Shure AD4D 2-Ch. Digital Receiver without Accessories, A: 470 to 636MHz
$4,676.00$3,741.00
Shure AD4Q-DC: Picture 1 regular
Shure AD4Q Quad-Channel Wireless Receiver with Redundant DC Power, A: 470-636MHz
$10,277.00$8,221.00
Shure AD4Q with Power: Picture 1 regular
Shure AD4Q 4-Ch. Digital Receiver with Power & RF Accessories, A: 470 to 636MHz
$9,841.00$7,873.00
Shure ADX5D: Picture 1 regular
Shure ADX5D Axient Digital Dual-Channel Portable Wireless Receiver,A: 470-636MHz
$3,438.00$2,750.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shure AD4D + Accessories Specifications

Audio Output

Audio Output

Jump to...

  • Gain Adjustment Range

    -18 to +42 dB in 1 dB steps (plus Mute setting)

  • Configuration

    1/4" (6.35mm): Transformer-coupled Balanced (Tip=audio, Ring=no audio, Sleeve=ground)
    XLR: Transformer-coupled Balanced (1=ground, 2=audio +, 3=audio -)

  • Impedance (Typical, XLR Line out)

    100Ohms

  • Full Scale Output (200 kOhms load)

    1/4" (6.35mm): +8 dBV
    XLR: LINE setting= +18 dBV, MIC setting= -12 dBV

  • Mic/Line Switch

    30 dB pad

  • Phantom Power Protection

    Yes

Networking

Jump to...

  • Network Interface

    10/100 Mbps, 1 Gbps, Dante Digital Audio

  • Network Addressing Capability

    DHCP or Manual IP address

  • Maximum Ethernet Cable Length

    100m (328')

Cascade output

Jump to...

  • Connector Type

    BNC

  • Configuration

    Unbalanced, passive

  • Impedance

    50 Ohms

  • Insertion Loss

    0 dB, typical

RF Input

Jump to...

  • Spurious Rejection

    >80 dB, typical

  • Connector Type

    BNC

  • Impedance

    50 Ohms

  • Bias Voltage

    12-13.5 V DC, 150 mA maximum, per antenna, switchable on/off

General

Jump to...

  • Housing

    Steel; Extruded aluminum

  • Power Requirements

    100 to 240 V AC, 50-60Hz; 0.26 A max.

  • Thermal Dissipation

    Maximum: 23W (78 BTU/hr)
    Idle: 15 W (52 BTU/hr)

  • Protection Modes

    Overvoltage, Under voltage, Reverse Polarity

  • 4-Pin XLR

    Pin 1: Negative; Pin 2: No Connection; Pin 3: No Connection; Pin 4: Positive

  • Dimensions (HxWxD)

    1.7 x 19.0 x 13.1" (4.32 x 48.26 x 33.27cm)

  • Weight

    10.1 lbs (4.58kg) without antennas

About Shure AD4D + Accessories

Axient Digital offers dual and quad receiver options that open the door to a full range of features, from high-performance RF to transparent digital audio. The AD4D Two-Channel Digital Receiver sets a new standard in spectral efficiency. Groundbreaking performance features include wide tuning, low latency and High Density (HD) mode, ensuring solid performance in the most challenging RF environments. Networked control and signal routing options bring a new level of management and flexibility to your entire workflow. Compatible with all AD series and ADX series transmitters.

Shure AD4D + Accessories Features

  • Wide tuning range up to 184 MHz
  • True digital diversity reception per channel for drop-out resistance
  • Networked control with Wireless Workbench software and ShurePlus Channels iOS app
  • Front panel headphone jack enables Dante Cue and Dante Browse monitoring
  • Configurable Ethernet switch for redundant Dante or AES67 digital output
  • AES3 output
  • Channel Quality meter displays RF signal-to-noise
  • Locking AC connectors

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Shure AD4D Dual-Channel Digital Wireless Receiver
  • Rackmount Kit
  • Locking Power and Jumper Cables
  • BNC Bulkhead Adapter
  • Coaxial Antenna
  • BNC Cable Assemblies
  • BNC Cable
  • Ethernet Cables
  • User Guide
  • Shure 2 Year Warranty
