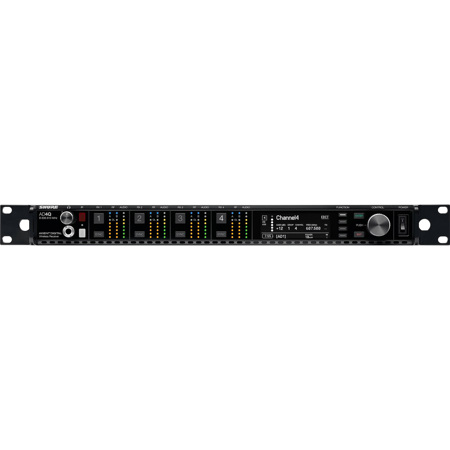

Shure AD4Q Axient Digital Quad-Channel Wireless Receiver with Redundant DC Power-Input, Frequency Range A: 470-636MHz

SKU: SHAD4QDCA MFR: AD4Q-DC=-A
Earn VIP Reward Points

Key Features

  • Experience superior audio quality with this Shure wireless receiver, perfect for professional use.
  • Ensure seamless connectivity with the Dante digital audio networking capabilities of this receiver.
  • Enjoy reliable performance with redundant DC power input, preventing interruptions during crucial events.
  • Optimize your sound with gain adjustment from -18 to +42 dB, tailoring audio to your specific needs.
  • This quad-channel wireless receiver supports multiple microphones, ideal for panel discussions or performances.
  • Enhance signal clarity with exceptional spurious rejection, providing a clean and noise-free audio experience.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Shure AD4Q-DC Specifications

Audio Output

Audio Output

Jump to...
  • Gain Adjustment Range

    -18 to +42 dB in 1 dB steps (plus mute setting)

  • Configuration

    1/4" (6.35mm): Transformer-coupled balanced (Tip=audio, Ring=no audio, Sleeve=ground)
    XLR: Transformer-coupled balanced (1=ground, 2=audio +, 3=audio -)

  • Impedance

    XLR Line Out: 100 Ohms

  • Output

    Full Scale 200-kOhms Load:
    1/4" (6.35 mm): +8 dBV
    XLR: LINE setting= +18 dBV, MIC Setting: -12 dBV

  • Mic/Line Switch

    30 dB pad

  • Phantom Power Protection

    Yes

Networking

Jump to...
  • Networking Interface

    10/100 Mb/s, 1 Gb/s, Dante digital audio

  • Network Addressing Capability

    DHCP or Manual IP address

  • Ethernet Cabling

    328' (100m) maximum length

Cascade Output

Jump to...
  • Connector Type

    BNC

  • Configuration

    Unbalanced, passive

  • Impedance

    50 Ohms

  • Insertion Loss

    0 dB, typical

RF Input

Jump to...
  • Spurious Rejection

    >80 dB, typical

  • Connector Type

    BNC

  • Impedance

    50 Ohms

  • Bias Voltage

    12 to 13.5 VDC, 150 mA maximum, per antenna, switchable on/off

  • RF Carrier Frequency Range

    A: 470-636MHz

General

Jump to...
  • Housing

    Steel; Extruded aluminum

  • Power Requirements

    100 to 240 V AC, 50-60 Hz; 0.68 A max

  • Thermal Dissipation

    Maximum: 31 W (106 BTU/hr)
    Idle: 21 W (72 BTU/hr)

  • DC Input Voltage Range

    10.9-14.8 V DC

  • Maximum DC Input Current

    AD4Q: A

  • Protection Modes

    Overvoltage, Undervoltage, Reverse Polarity

  • 4-Pin XLR

    Pin 1: Negative; Pin 2: No Connection; Pin 3: No Connection; Pin 4: Positive

  • Dimensions (HxWxD)

    1.7 x 19.0 x 13.1" (4.32 x 48.26 x 33.27cm)

  • Weight

    10.6 lbs (4.81kg) without antennas

  • UPC Code

    042406529693

About Shure AD4Q-DC

After extensive research and development, the AD4Q Axient Digital Quad-Channel Wireless Receiver emerges as a game-changer in the realm of transparent digital audio and spectral efficiency. This state-of-the-art device boasts a wide tuning range from 470-636MHz, ensuring optimal performance even in the most challenging RF environments.

The AD4Q Axient Digital Quad-Channel Wireless Receiver is engineered with groundbreaking features such as low latency and a High Density (HD) mode, which significantly enhances its performance capabilities. The unique Quadversity feature further amplifies its robustness, ensuring steadfast performance regardless of the surrounding conditions.

This wireless receiver is not just about performance, it also offers unparalleled flexibility and control. With networked control, it allows for seamless management of your entire workflow. The inclusion of AES3 + Dante output and signal routing options further adds to its versatility, making it an ideal choice for professionals seeking comprehensive control over their audio equipment.

Moreover, the AD4Q Axient Digital Quad-Channel Wireless Receiver is designed to be compatible with all Axient Digital transmitters, making it a versatile addition to any audio setup. This compatibility ensures seamless integration and optimal performance when paired with any Axient Digital transmitter.

In summary, the AD4Q Axient Digital Quad-Channel Wireless Receiver with Redundant DC Power-Input is a sophisticated piece of equipment that combines superior performance, flexibility, and control, making it an essential tool for any audio professional.

Shure AD4Q-DC Features

  • Wide tuning range up to 184MHz
  • True digital diversity reception per channel for drop-out resistance
  • Networked control with Wireless Workbench and ShurePlus Channels app
  • Quadversity mode for extended antenna coverage and improved RF signal-to-noise
  • Front panel headphone jack enables Dante Cue and Dante Browse monitoring
  • Configurable Ethernet switch for redundant Dante digital output
  • Switchable XLR/AES3 outputs
  • Channel Quality meter displays RF signal-to-noise
  • Locking AC connectors
  • DC module supports redundant power

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience superior audio quality with this Shure wireless receiver, perfect for professional use.
  • Ensure seamless connectivity with the Dante digital audio networking capabilities of this receiver.
  • Enjoy reliable performance with redundant DC power input, preventing interruptions during crucial events.
  • Optimize your sound with gain adjustment from -18 to +42 dB, tailoring audio to your specific needs.
  • This quad-channel wireless receiver supports multiple microphones, ideal for panel discussions or performances.
  • Enhance signal clarity with exceptional spurious rejection, providing a clean and noise-free audio experience.

What's in the box:

  • Shure AD4Q Axient Digital Quad-Channel Wireless Receiver
  • Shure 2 Year Limited Warranty
