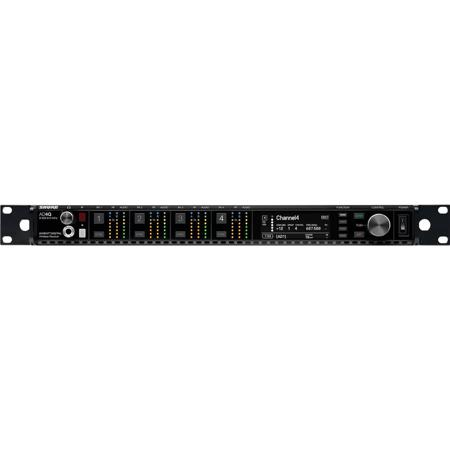

Shure AD4Q Axient Digital Quad-Channel Wireless Receiver with Redundant DC Power-Input, Frequency Range B: 606-810MHz

SKU: SHAD4QDCB MFR: AD4Q-DC=-B
Earn VIP Reward Points

Key Features

  • Experience superior audio clarity with this Shure wireless receiver for professional use.
  • Ensure seamless connectivity; this quad-channel receiver operates between 606-810MHz.
  • Enjoy peace of mind with redundant DC power input, preventing interruptions during events.
  • Optimize sound with adjustable gain settings, offering -18 to +42 dB for precise control.
  • Easily integrate into existing setups using XLR and 1/4" outputs for versatile connections.
  • Benefit from network addressing via DHCP or manual IP for streamlined system management.
See More Product Details
Special Order Item?Estimated to Ship: 09/01/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Shure AD4Q-DC Specifications

Audio Output

Audio Output

Jump to...
  • Gain Adjustment Range

    -18 to +42 dB in 1 dB steps (plus mute setting)

  • Configuration

    1/4" (6.35mm): Transformer-coupled balanced (Tip=audio, Ring=no audio, Sleeve=ground)
    XLR: Transformer-coupled balanced (1=ground, 2=audio +, 3=audio -)

  • Impedance

    XLR Line Out: 100 Ohms

  • Output

    Full Scale 200-kOhms Load:
    1/4" (6.35mm): +8 dBV
    XLR: LINE setting= +18 dBV, MIC Setting: -12 dBV

  • Mic/Line Switch

    30 dB pad

  • Phantom Power Protection

    Yes

Networking

Jump to...
  • Networking Interface

    10/100 Mb/s, 1 Gb/s, Dante digital audio

  • Network Addressing Capability

    DHCP or Manual IP address

  • Ethernet Cabling

    328' (100m) maximum length

Cascade Output

Jump to...
  • Connector Type

    BNC

  • Configuration

    Unbalanced, passive

  • Impedance

    50 Ohms

  • Insertion Loss

    0 dB, typical

RF Input

Jump to...
  • Spurious Rejection

    >80 dB, typical

  • Connector Type

    BNC

  • Impedance

    50 Ohms

  • Bias Voltage

    12 to 13.5 VDC, 150 mA maximum, per antenna, switchable on/off

  • RF Carrier Frequency Range

    B: 606-810MHz

General

Jump to...
  • Housing

    Steel; Extruded aluminum

  • Power Requirements

    100 to 240 V AC, 50-60 Hz; 0.68 A max

  • Thermal Dissipation

    Maximum: 31 W (106 BTU/hr)
    Idle: 21 W (72 BTU/hr)

  • DC Input Voltage Range

    10.9-14.8 V DC

  • Maximum DC Input Current

    AD4Q: A

  • Protection Modes

    Overvoltage, Undervoltage, Reverse Polarity

  • 4-Pin XLR

    Pin 1: Negative; Pin 2: No Connection; Pin 3: No Connection; Pin 4: Positive

  • Dimensions (HxWxD)

    1.7 x 19.0 x 13.1" (4.32 x 48.26 x 33.27cm)

  • Weight

    10.6 lbs (4.81kg) without antennas

  • UPC Code

    042406529785

About Shure AD4Q-DC

Enhance your audio setup with the AD4Q Axient Digital Quad-Channel Wireless Receiver, a pinnacle of sophistication in the realm of transparent digital audio and spectral efficiency. This advanced receiver is engineered to deliver unparalleled audio clarity and is equipped with a broad frequency range of 606-810MHz, making it an ideal choice for a diverse array of professional applications.

Experience groundbreaking performance with features such as wide tuning capabilities, ensuring your audio remains crystal-clear across various environments. The low latency design of the AD4Q Axient Digital Receiver guarantees real-time audio synchronization, essential for live performances and broadcasts. Additionally, the High Density (HD) mode allows for a more efficient use of the RF spectrum, accommodating a higher number of channels in limited bandwidth.

The Quadversity technology of this high-quality receiver ensures robust signal reception, providing you with the confidence that your audio will remain uninterrupted, even in the most challenging RF scenarios. Networked control capabilities offer a seamless integration into your existing setup, allowing for remote monitoring and adjustments, enhancing the management of your audio workflow.

With AES3 and Dante digital output options, this reliable receiver offers superior signal routing flexibility, catering to the intricate needs of professional audio environments. The AD4Q Axient Digital Receiver is fully compatible with all Axient Digital transmitters, ensuring a cohesive and streamlined experience.

Whether you're orchestrating a live performance, managing a recording studio, or overseeing a complex broadcasting event, the AD4Q Axient Digital Quad-Channel Wireless Receiver stands as a testament to Shure's commitment to excellence in audio technology. It is a professional-grade solution that promises to elevate the standard of your audio output with its robust feature set and reliable performance.

Shure AD4Q-DC Features

  • Wide tuning range up to 184MHz
  • True digital diversity reception per channel for drop-out resistance
  • Networked control with Wireless Workbench and ShurePlus Channels app
  • Quadversity mode for extended antenna coverage and improved RF signal-to-noise
  • Front panel headphone jack enables Dante Cue and Dante Browse monitoring
  • Configurable Ethernet switch for redundant Dante digital output
  • Switchable XLR/AES3 outputs
  • Channel Quality meter displays RF signal-to-noise
  • Locking AC connectors
  • DC module supports redundant power

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience superior audio clarity with this Shure wireless receiver for professional use.
  • Ensure seamless connectivity; this quad-channel receiver operates between 606-810MHz.
  • Enjoy peace of mind with redundant DC power input, preventing interruptions during events.
  • Optimize sound with adjustable gain settings, offering -18 to +42 dB for precise control.
  • Easily integrate into existing setups using XLR and 1/4" outputs for versatile connections.
  • Benefit from network addressing via DHCP or manual IP for streamlined system management.

What's in the box:

  • Shure AD4Q Axient Digital Quad-Channel Wireless Receiver
  • Shure 2 Year Limited Warranty
