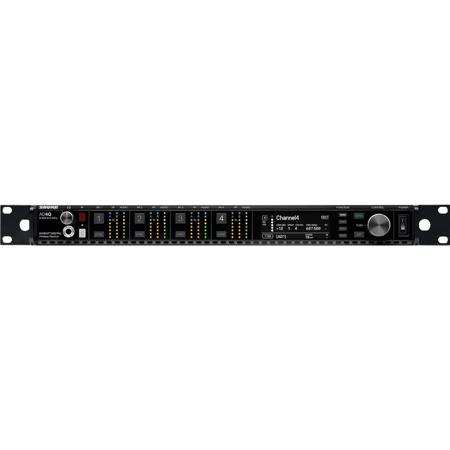

Shure AD4Q Axient Digital Quad-Channel Wireless Receiver with Redundant DC Power-Input, Frequency Range C: 750-960MHz

SKU: SHAD4QDCC MFR: AD4Q-DC=-C
Earn VIP Reward Points

Key Features

  • Experience pristine audio with this Shure wireless receiver's digital clarity.
  • Ensure uninterrupted performance with redundant DC power on this wireless system.
  • This quad-channel receiver supports multiple wireless microphones simultaneously.
  • Achieve superior sound quality with a wide 750-960MHz frequency range.
  • Enjoy easy integration with Dante digital audio networking capabilities.
  • Rugged build quality ensures durability for touring and installed sound systems.
See More Product Details
Special Order Item?Estimated to Ship: 08/31/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Shure AD4Q-DC Specifications

Audio Output

Audio Output

Jump to...
  • Gain Adjustment Range

    -18 to +42 dB in 1 dB steps (plus mute setting)

  • Configuration

    1/4" (6.35mm): Transformer-coupled balanced (Tip=audio, Ring=no audio, Sleeve=ground)
    XLR: Transformer-coupled balanced (1=ground, 2=audio +, 3=audio -)

  • Impedance

    XLR Line Out: 100 Ohms

  • Output

    Full Scale 200-kOhms Load:
    1/4" (6.35mm): +8 dBV
    XLR: LINE setting= +18 dBV, MIC Setting: -12 dBV

  • Mic/Line Switch

    30 dB pad

  • Phantom Power Protection

    Yes

Networking

Jump to...
  • Networking Interface

    10/100 Mb/s, 1 Gb/s, Dante digital audio

  • Network Addressing Capability

    DHCP or Manual IP address

  • Ethernet Cabling

    328' (100m) maximum length

Cascade Output

Jump to...
  • Connector Type

    BNC

  • Configuration

    Unbalanced, passive

  • Impedance

    50 Ohms

  • Insertion Loss

    0 dB, typical

RF Input

Jump to...
  • Spurious Rejection

    >80 dB, typical

  • Connector Type

    BNC

  • Impedance

    50 Ohms

  • Bias Voltage

    12 to 13.5 VDC, 150 mA maximum, per antenna, switchable on/off

  • RF Carrier Frequency Range

    C: 750-960MHz

General

Jump to...
  • Housing

    Steel; Extruded aluminum

  • Power Requirements

    100 to 240 V AC, 50-60 Hz; 0.68 A max

  • Thermal Dissipation

    Maximum: 31 W (106 BTU/hr)
    Idle: 21 W (72 BTU/hr)

  • DC Input Voltage Range

    10.9-14.8 V DC

  • Maximum DC Input Current

    AD4Q: A

  • Protection Modes

    Overvoltage, Undervoltage, Reverse Polarity

  • 4-Pin XLR

    Pin 1: Negative; Pin 2: No Connection; Pin 3: No Connection; Pin 4: Positive

  • Dimensions (HxWxD)

    1.7 x 19.0 x 13.1" (4.32 x 48.26 x 33.27cm)

  • Weight

    10.6 lbs (4.81kg) without antennas

  • UPC Code

    042406529860

About Shure AD4Q-DC

Before you settle for any wireless receiver, consider the high-quality AD4Q Axient Digital Quad-Channel Wireless Receiver. This advanced piece of equipment is designed to redefine your experience with transparent digital audio and maximum spectral efficiency.

Engineered with a wide frequency range of 750-960MHz, this durable wireless receiver ensures superior performance in even the most challenging RF environments. It boasts a low latency and a High Density (HD) mode, which together provide an unparalleled level of signal clarity and strength.

The innovative Quadversity feature of the AD4Q Axient Digital Quad-Channel Wireless Receiver allows for four channels, making it an ideal choice for diverse applications, from live performances and recording studios to broadcasting.

This reliable receiver also comes with a redundant DC power-input, offering a backup power source in the event of a power failure. This ensures uninterrupted operation, making it a dependable choice for professionals who can't afford any downtime.

The AD4Q Axient Digital Quad-Channel Wireless Receiver also offers networked control, AES3 + Dante output, and signal routing options. These features bring a new level of management and flexibility to your entire workflow, making it easier than ever to control and optimize your audio setup.

Finally, this receiver is compatible with all Axient Digital transmitters, offering seamless integration and enhanced performance. Choose the AD4Q Axient Digital Quad-Channel Wireless Receiver for a superior, reliable, and efficient audio experience.

Shure AD4Q-DC Features

  • Wide tuning range up to 184MHz
  • True digital diversity reception per channel for drop-out resistance
  • Networked control with Wireless Workbench and ShurePlus Channels app
  • Quadversity mode for extended antenna coverage and improved RF signal-to-noise
  • Front panel headphone jack enables Dante Cue and Dante Browse monitoring
  • Configurable Ethernet switch for redundant Dante digital output
  • Switchable XLR/AES3 outputs
  • Channel Quality meter displays RF signal-to-noise
  • Locking AC connectors
  • DC module supports redundant power

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience pristine audio with this Shure wireless receiver's digital clarity.
  • Ensure uninterrupted performance with redundant DC power on this wireless system.
  • This quad-channel receiver supports multiple wireless microphones simultaneously.
  • Achieve superior sound quality with a wide 750-960MHz frequency range.
  • Enjoy easy integration with Dante digital audio networking capabilities.
  • Rugged build quality ensures durability for touring and installed sound systems.

What's in the box:

  • Shure AD4Q Axient Digital Quad-Channel Wireless Receiver
  • Shure 2 Year Limited Warranty
