Shure AD4QNP-A Axient Four-Channel Wireless Receiver with No Accessories (A: 470 to 636 MHz)

SKU: SHAD4QNPA MFR: AD4QNP=-A
Earn VIP Reward Points

Key Features

  • Experience pristine audio with the Shure AD4QNP wireless receiver for crystal-clear sound.
  • Achieve superior connectivity using the AD4QNP's Dante and AES67 digital audio networking.
  • Enjoy robust performance with a wide 184 MHz tuning range on this Shure wireless system.
  • Ensure signal integrity with true diversity antenna configuration on the AD4QNP receiver.
  • Optimize your setup with adjustable gain from -18 to +42 dB on the AD4QNP's audio output.
  • Rely on Shure's AD4QNP digital receiver for low latency and secure, encrypted transmissions.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Shure AD4Q Specifications

  • Compatibility

    Axient Digital Wireless Systems

  • RF Carrier Frequency Range

    A: 470 to 636MHz

  • Receiver Configuration

    Quad

  • Tuning Range

    184 MHz

  • Transmission Mode

    Standard
    High density

  • Antenna Configuration

    True diversity

  • Channels

    Standard Mode:
    17 Ch/ 6 MHz
    23 Ch/ 8 MHz
    High Density Mode:
    47 Ch/ 6 MHz
    63 Ch/ 8 MHz

  • Interference Detection

    Yes

  • Encryption

    Yes

  • Dynamic Range

    XLR Output: >120 dB, A-weighted, system gain at +10
    Dante Output: >130 dB, A-weighted, System Gain at +10

  • Audio Output

    Onboard Analog: 4x XLR, 4x 1/4" (6.3 mm) TRS
    Onboard Digital: 2x AES 3-pin XLR (4 channel), Dante and AES67

  • Audio Output: Gain Adjustment Range

    -18 to +42 dB in 1 dB steps (plus Mute setting)

  • Audio Output: Configuration

    1/4" (6.35 mm): Transformer-coupled Balanced (Tip=audio, Ring=no audio, Sleeve=ground)
    XLR: Transformer-coupled Balanced (1=ground, 2=audio +, 3=audio -)

  • Audio Output: Impedance

    100Ohms (Typical, XLR Line out)

  • Audio Output: Full Scale Output

    1/4" (6.35 mm): +8 dBV
    XLR: LINE setting= +18 dBV, MIC setting= -12 dBV
    (200 kOhms load)

  • Audio Output: Mic/Line Switch

    30 dB pad

  • Audio Output: Phantom Power Protection

    Yes

  • Network Interface

    10/100 Mbps, 1 Gbps, Dante Digital Audio

  • Network Addressing Capability

    DHCP or Manual IP address

  • Maximum Ethernet Cable Length

    100m (328.08')

  • Cascade Output: Connector Type

    BNC

  • Cascade Output: Configuration

    Unbalanced, passive

  • Cascade Output: Impedance

    50Ohms

  • Cascade Output: Insertion Loss

    0 dB, typical

  • RF Input: Spurious Rejection

    >80 dB, typical

  • RF Input: Connector Type

    BNC

  • RF Input: Impedance

    50Ohms

  • RF Input: Bias Voltage

    12-13.5 V DC, 150 mA maximum, per antenna, switchable on/off

  • Housing

    Steel; Extruded aluminum

  • Power Requirements

    100 to 240 V AC, 50-60 Hz; 0.26 A max

  • Thermal Dissipation

    Maximum: 23 W (78 BTU/hr)
    Idle: 15 W (52 BTU/hr)

  • Dimensions

    44 x 483 x 333mm (1.73 x 19.02 x 13.11")

  • Weight

    4.8kg (10.58 lbs) without antennas

  • UPC Code

    042406533584

About Shure AD4Q

Take your audio performance to the next level with the AD4QNP-A Axient Four-Channel Wireless Receiver, a high-quality, reliable and innovative product from Shure, a leading brand in the audio industry. This advanced wireless receiver offers a wide frequency range of 470-636 MHz, making it versatile for use in various settings and environments, from concerts and theaters to live events.

Experience groundbreaking performance features such as wide tuning, low latency, High Density (HD) mode, and Quadversity, all designed to ensure solid performance even in the most challenging RF environments. This durable wireless receiver sets a new standard in spectral efficiency, offering dual and quad receiver options that unlock a full range of high-performance RF and transparent digital audio features.

The AD4QNP-A Axient Four-Channel Wireless Receiver offers networked control, AES3 + Dante output, and signal routing options, bringing a new level of management and flexibility to your entire workflow. It's compatible with all AD series and ADX series transmitters, making it a versatile addition to your audio equipment.

Enjoy 60 dB of gain adjustment for compatibility with a wide range of input sources, and take advantage of the Dante networking for quick and easy channel management. The Dante Browse feature allows for headphone monitoring of all Dante channels, including third-party components, while the AES 256 encryption ensures your audio channels are protected.

The automatic limiter function safeguards against signal clipping, allowing for higher gain settings and preventing unexpected signal peaks. The front panel connection for headphones comes with adjustable volume, providing you with complete control over your audio experience.

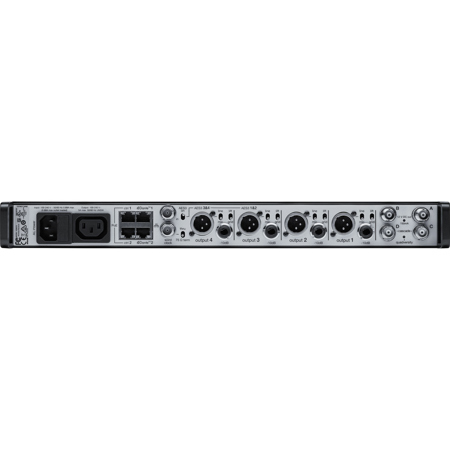

The AD4QNP-A Axient Four-Channel Wireless Receiver also features four transformer-balanced XLR outputs, four transformer-balanced 1/4" outputs, two Dante-enabled Ethernet ports, and two network control Ethernet ports with PoE. The wide tuning range up to 184 MHz, true digital diversity reception per channel, and Quadversity mode for enhanced coverage further enhance its functionality and performance.

With the AD4QNP-A Axient Four-Channel Wireless Receiver, you can register up to eight transmitters to one receiver channel, and the High Density transmission mode enables up to 47 active transmitters in one 6 MHz TV channel (up to 63 in one 8 MHz TV channel). The Wireless Workbench control software, ShurePlus Channels mobile device control, console integration, and control systems support make it an indispensable tool for professional audio applications.

Shure AD4Q Features

  • High-quality, durable Four-Channel Wireless Receiver with a wide frequency range of 470-636 MHz
  • Groundbreaking performance features such as wide tuning, low latency, High Density (HD) mode, and Quadversity
  • Networked control, AES3 + Dante output, and signal routing options for enhanced management and flexibility
  • Compatibility with all AD series and ADX series transmitters for versatile use
  • 60 dB of gain adjustment, Dante networking, and AES 256 encryption for superior audio control and protection
  • Wide tuning range up to 184 MHz, true digital diversity reception per channel, and Quadversity mode for enhanced coverage

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience pristine audio with the Shure AD4QNP wireless receiver for crystal-clear sound.
  • Achieve superior connectivity using the AD4QNP's Dante and AES67 digital audio networking.
  • Enjoy robust performance with a wide 184 MHz tuning range on this Shure wireless system.
  • Ensure signal integrity with true diversity antenna configuration on the AD4QNP receiver.
  • Optimize your setup with adjustable gain from -18 to +42 dB on the AD4QNP's audio output.
  • Rely on Shure's AD4QNP digital receiver for low latency and secure, encrypted transmissions.

What's in the box:

  • Shure AD4Q 4-Channel Digital Wireless Receiver
  • AC Power Cable (Vlock)
  • AC Power Jumper Cable
  • Hardwares
  • User Guide
  • Shure 2 Year limited Warranty
