20% Off

Shure AD600 Axient Digital Spectrum Manager, 174MHz to 2.0GHz

SKU: SHAD600US MFR: AD600US
Earn VIP Reward Points

Key Features

  • Optimize audio with the Shure AD600, managing spectrum from 174MHz to 2.0GHz.
  • Ensure top sound quality using this spectrum manager's wide RF tuning range.
  • Enhance connectivity with quad-port Ethernet; supports redundant Dante & PoE.
  • The AD600 offers precise audio monitoring with a 20 Hz - 20 kHz frequency response.
  • Rugged steel housing ensures durability, protecting your investment in sound equipment.
  • Manage multiple antennas efficiently with bias voltage, up to 450mA per device.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$679.99

3 Year

$999.99

4 Year

$1,149.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Shure AD600 Specifications

General

General

Jump to...
  • RF Tuning Frequency Range

    174 - 2000MHz

  • RF Tuning Step Size

    25kHz / 200kHz

  • Noise Floor

    Resolution Bandwidth:
    25kHz: -109 dBm, typical
    200kHz: -100 dBm, typical

  • Image Rejection

    > 90 dB

  • Spurious Response

    < -100 dBm, typical

  • Housing

    Steel

  • Power Requirements

    110 - 240 V AC, 50 - 60 Hz

  • Current Drain

    1.2 A

  • Operating Temperature Range

    0 Degree F - 122 Degree F (-18 Degree C - 50 Degree C)

  • Storage Temperature Range

    -20 Degree F - 165 Degree F (-29 Degree C - 74 Degree C)

RF Input

Jump to...
  • Connector Type

    BNC

  • Impedance

    50 Ohm

  • Maximum Input Level

    +10 dBm

  • Bias Voltage

    12 - 13.5 V DC
    150 mA maximum per antenna, 450 mA maximum per device

Headphone Monitor Audio Output

Jump to...
  • Audio Frequency Response

    20 Hz - 20 kHz, +/- 3 dB

  • Configuration

    1/4" (6.3mm) connector, unbalanced stereo

  • Impedance

    63 Ohm

  • Maximum Signal Level

    350 mW

Networking

Jump to...
  • Network Interface

    Quad Port Ethernet 10/100/1000 Mbps
    Redundant Dante support
    PoE supported on the control ports

  • Network Addressing Capability

    DHCP or Manual IP address

DC Module

Jump to...
  • DC Input Voltage Range

    10.9 - 16V

  • Maximum DC Input Current

    5.5 A

  • Protection Modes

    Reverse Polarity, Over Voltage

  • Connector Type

    4-pin XLR (male)
    The shell of the DC inlet XLR connector is connected to Chassis Ground.

Physical

Jump to...
  • Dimensions (H x W x D)

    1.7 x 19 x 11.25" (43.2 x 482.6 x 285.7mm)

  • Weight

    8.15 lbs (3.7kg)

  • UPC Code

    042406769099

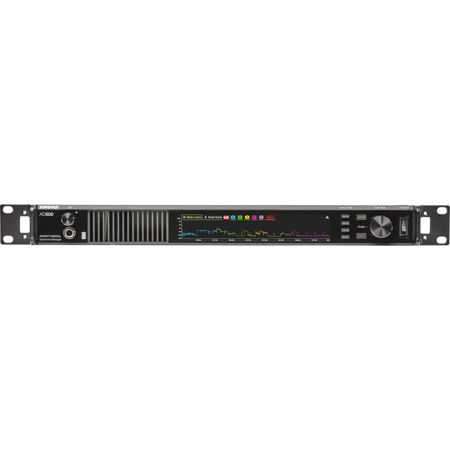

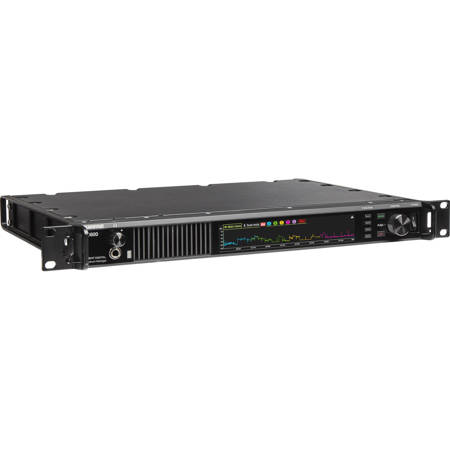

About Shure AD600

Discover the power and precision of the Shure Axient Digital AD600 Digital Spectrum Manager, a state-of-the-art device designed to streamline your professional audio setup. This advanced tool offers real-time, wide-band spectrum scanning and monitoring, spanning a broad frequency range from 174 MHz to 2.0 GHz.

The AD600 is more than just a spectrum manager; it's a comprehensive solution for spectrum analysis and frequency coordination, all housed in a single, space-saving rack unit. With six antenna connections, it provides a multitude of coverage options, ensuring optimal performance in various environments.

Dante connectivity is another key feature of the AD600, enabling advanced audio monitoring of your network. This ensures that your audio quality remains top-notch, providing clear, crisp sound across all your devices.

The AD600 also comes equipped with a USB port, allowing for easy export, import, and backup of critical data such as scans, event logs, and more. This feature ensures that your important information is always accessible and secure.

The Shure Axient Digital AD600 Digital Spectrum Manager is not just a tool, but a next-generation solution for planning and managing frequency coordination in professional audio applications. Its Guided Coordination menus simplify the process of planning, RF scanning, and deploying frequencies across your entire system. For those who desire more control, the AD600 offers in-depth options for complete customization.

Additional tools are available to analyze the spectrum, capture data, and perform site RF surveys. With the Dante Browse and listen over Dante features, you can monitor demodulated audio from your network, ensuring optimal sound quality at all times.

The AD600 boasts a large, full-color 6.6-inch front panel screen, providing easy viewing of information. Real-time scanning and monitoring of RF activities keep live information at your fingertips, ensuring you have the data you need when you need it most.

In conclusion, the Shure Axient Digital AD600 Digital Spectrum Manager is an indispensable addition to your professional audio setup, offering a powerful, efficient, and user-friendly solution for managing your audio spectrum.

Shure AD600 Features

  • Advanced, comprehensive RF coordination for your network
  • Fast, real-time scanning to find available frequencies and monitor RF activity
  • Large, 6.6" color display for viewing and analyzing the RF spectrum
  • Guided RF coordination to save time and effort in challenging RF environments
  • Tools for viewing, analyzing, and listening to RF activity
  • Tuning Range: 174MHz to 2GHz for support of multiple frequency bands
  • 6x Antenna connections to support coverage for multiple antennas and zones
  • Data capture and storage to archive RF information for analysis
  • Network enabled for large-scale system deployments
  • USB connections for external data storage of scans, event logs, and other data
  • Dante enabled for advanced audio monitoring of your network
  • Compatible with Wireless Workbench to extend control and monitoring options

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Optimize audio with the Shure AD600, managing spectrum from 174MHz to 2.0GHz.
  • Ensure top sound quality using this spectrum manager's wide RF tuning range.
  • Enhance connectivity with quad-port Ethernet; supports redundant Dante & PoE.
  • The AD600 offers precise audio monitoring with a 20 Hz - 20 kHz frequency response.
  • Rugged steel housing ensures durability, protecting your investment in sound equipment.
  • Manage multiple antennas efficiently with bias voltage, up to 450mA per device.

What's in the box:

  • Shure AD600 Axient Digital Spectrum Manager (174MHz to 2.0GHz)
  • USB-A Cable
  • 3' Ethernet Cable
  • Cable Assembly
  • Mounting Hardware
  • IEC AC Power Cable
  • Shure 2 Year Limited Warranty
