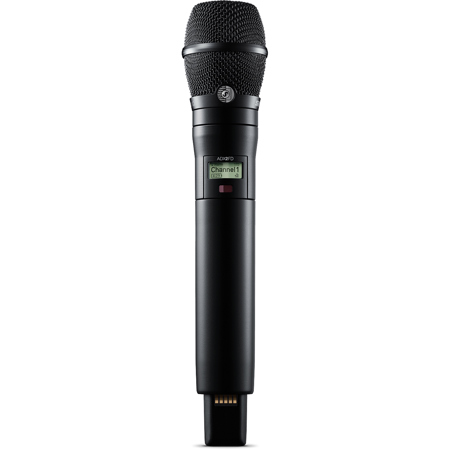

Shure ADX2FD/K11 Digital Wireless HH Tx with KSM11 Mic Capsule, G57: 470-608MHz Black

SKU: SHADX2DK1B57 MFR: ADX2FD/K11B=-G57
Earn VIP Reward Points

Key Features

  • Experience pristine audio with the Shure wireless handheld transmitter, perfect for live performances.
  • Enjoy exceptional sound quality and clarity with the included KSM11 microphone capsule for vocals.
  • Operate with confidence using the reliable Shure Axient Digital wireless microphone system at events.
  • Benefit from low latency digital transmission, ensuring seamless audio synchronization for broadcast.
  • Get up to 9 hours of battery life with the SB920A rechargeable battery, keeping you powered longer.
  • Utilize the wide 470-608MHz frequency range of this wireless transmitter for interference-free audio.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure ADX2FD/K11 Digital Wireless HH Tx with KSM11 Mic Capsule, G57: 470-608MHz Specifications

ADX2FD: General

ADX2FD: General

Jump to...
  • Available Colors

    Black, Nickel

  • Housing Material

    Cast Aluminum

  • Gain Offset Range

    -12 to 21 dB (in 3 dB steps)

  • Frequency Range

    G57: 470-608MHz

  • Battery

    SB920A Rechargeable Lithium-Ion

  • Battery Run Time @10 mW

    Single-Carrier Mode: up to 9 hours
    Frequency Diversity: up to 6.5 hours

ADX2FD: Audio Input

Jump to...
  • Configuration

    Unbalanced

  • Maximum Input Level

    145 dB SPL, Typical (SM58) (1 kHz at 1% THD)

ADX2FD: RF Output

Jump to...
  • Antenna Type

    Integrated Dual-Band Helical

  • Occupied Bandwidth

    <200 kHz

  • Channel-to-Channel Spacing

    Standard Mode: 350 kHz
    High-Density Mode: 125 kHz

  • Modulation Type

    Shure Axient Digital Proprietary

  • Power

    Single Carrier Mode: 2 mW, 10 mW, 20 mW, 50 mW
    Frequency Diversity Mode: 2 x 20 mW

  • Specific Absorption Rate (SAR)

    <0.21 W/kg

ADX2FD: Battery

Jump to...
  • Battery Info

    Required, Included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

ADX2FD: Physical

Jump to...
  • Dimensions (L x Dia.)

    10 x 2" (254 x 51mm)

  • Weight

    11.9 oz (338g) (Without Battery)

KSM11 Capsule

Jump to...
  • Housing Material

    Aluminum and Steel Grille

  • Type

    Electret Condenser

  • Polar Pattern

    Cardioid

  • Frequency Response

    50 to 20,000 Hz

  • Output Impedance (1 kHz)

    250 Ohm with 5 VDC

  • Sensitivity

    -46.5 dBV/Pa (At 1 kHz, open circuit voltage)

  • Maximum SPL with 5 VDC

    151 dB SPL

  • Signal-to-Noise Ratio

    71.5 dB

  • Dynamic Range with 5 VDC

    128.5 dB

  • Clipping Level with 5 VDC

    10 dBV

  • Self Noise

    22.5 dB SPL (Typical, equivalent SPL, A-weighted)

  • Polarity

    Positive pressure on diaphragm produces positive voltage into transmitter with respect to ground

  • Power Requirements

    5 Volt Bias from Shure Transmitter

  • Dimensions (Dia. x H)

    1.92 x 3.0" (48.7 x 76.3mm)

  • Weight

    5.23 oz (150g)

  • UPC Code

    42406690942

About Shure ADX2FD/K11 Digital Wireless HH Tx with KSM11 Mic Capsule, G57: 470-608MHz

ADX2FD/K11 features the prized combination of full lows, clear mids and high-end of the KSM11 Cardioid Condenser Microphone. Combined with ADX transmitters this combination sets the stage for exceptional performance. Frequency Diversity with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.

The ADX2FD/K11 is a handheld wireless microphone transmitter compatible with Axient Digital Wireless Systems.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.


- ADX2FD Digital Wireless Handheld Transmitter -
ADX2FD, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.

Features
• Ability to transmit RF signal on two discrete carriers
• Optional 50 mW High Power mode for driving increased power on a single frequency
• Durable, moisture-resistant, lightweight metal case
• Up to 6.5 hours of runtime with SB920A rechargeable batteries when transmitting on two RF carriers, Up to 9 hours of battery life when transmitting on a single RF carrier
• External contacts for docked charging with optional fully-covered radome
• Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
• Two transmission modes
• Standard for optimal coverage
• New High Density for maximum system channel count and robust coverage
• Encryption-enabled, secure transmission


- KSM11 Wireless Microphone Capsule -
The KSM11 Wireless Vocal Microphone Capsule redefines vocal performance by providing a prized combination of full lows, clear mids and high-end detail, without the need for extensive EQ. A cardioid condenser designed specifically for live performance, event recording and premium streaming, the KSM11 allows digital wireless systems to present live vocals that must be heard to be believed.

As modern live stages have transitioned to digital technology, the KSM11 cardioid condenser microphone was developed to take advantage of increased digital audio linearity - equal output across the frequency range. The KSM11 delivers an elegant balance of full low end, rich mid-range, essential high-end detail, and incredible off-axis rejection. Professional engineers have a near-perfect presentation of vocal performance to build their mixes around, EQing by choice and not default. You've simply never heard wireless vocals sounding this good.

Features
• Proprietary wireless condenser capsule utilizing a 3/4" gold diaphragm and premium electronics for exceptional dynamic range and transient response
• Highly consistent, deep cardioid polar pattern reduces off-axis phase distortion for pristinely focused vocal reproduction to provide rich and full low frequency response, linear and transparent mid-range and natural high-end detail
• Streamlined design for an overall smaller and lighter capsule footprint
• Advanced suspended isolation system for virtually zero handling noise
• Dent-resistant hardened steel grille with 3-stage plosive reduction pop filtering for consistent, artifact-free vocals
• Available with ULX-D transmitters in black and Axient Digital transmitters in black and nickel. Compatible with all Shure handheld transmitters with interchangeable microphone capsules

Shure ADX2FD/K11 Digital Wireless HH Tx with KSM11 Mic Capsule, G57: 470-608MHz Features

  • Ability to transmit RF signal on two discrete carriers
  • Optional 50mW High Power mode for driving increased power on a single frequency
  • Durable, moisture-resistant, lightweight metal case in black or nickel finish
  • Up to 6.5 hours of runtime with SB920A rechargeable battery when transmitting on two RF carriers (up to 9 hours battery life when transmitting on a single RF carrier)
  • External contacts for docked charging with optional fully covered radome
  • Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Encryption-enabled, secure transmission

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience pristine audio with the Shure wireless handheld transmitter, perfect for live performances.
  • Enjoy exceptional sound quality and clarity with the included KSM11 microphone capsule for vocals.
  • Operate with confidence using the reliable Shure Axient Digital wireless microphone system at events.
  • Benefit from low latency digital transmission, ensuring seamless audio synchronization for broadcast.
  • Get up to 9 hours of battery life with the SB920A rechargeable battery, keeping you powered longer.
  • Utilize the wide 470-608MHz frequency range of this wireless transmitter for interference-free audio.

What's in the box:

  • Shure ADX2FD/K11 Digital Wireless Handheld Transmitter with KSM11 Microphone Capsule
  • SB920A Rechargeable Lithium Ion Battery
  • Microphone Clip
  • Euro-Threaded Adapter
  • Zipper Bag
  • Shure 2 Year Limited Warranty
