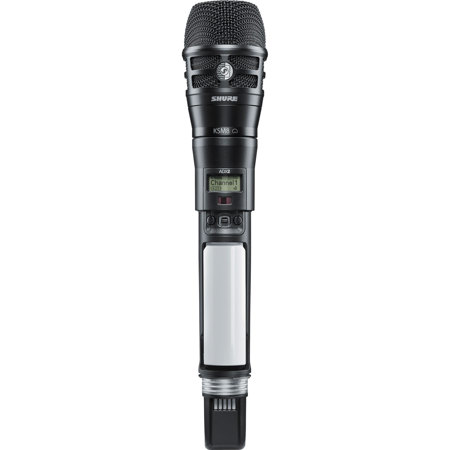

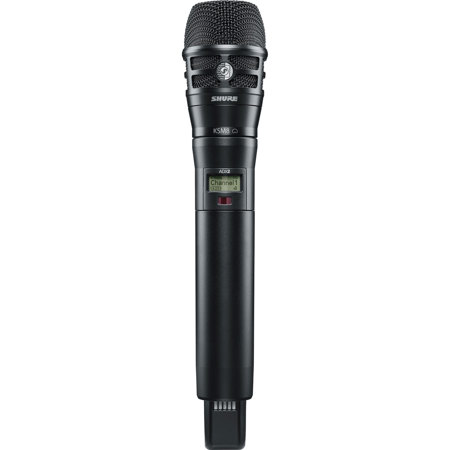

Shure ADX2/K8 Digital Handheld Wireless Transmitter with KSM8 Microphone Capsule, X55: 941-960MHz, Black

ADX2/K8, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.

The ADX2/K8 is a handheld wireless microphone transmitter compatible with Axient Digital Wireless Systems.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation

- ADX2 Handheld Transmitter -
ADX series transmitters deliver impeccable audio quality and RF performance, and are equipped with ShowLink remote control for real-time parameter adjustments and interference avoidance. This transmitter features wide tuning, High Density (HD) mode, encryption, and advanced rechargeability in a streamlined design. Light-weight aluminum construction and SB920A rechargeable power options (with dock able charging).

Performance
• 184 MHz tuning range
• 20 Hz to 20 kHz range with flat frequency response
• Automatic input staging optimizes gain setting
• Diversity ShowLink-enabled for remote transmitter control and automatic interference avoidance
• AES 256-bit encryption-enabled for secure transmission
• >120 dB, A-weighted, System Gain @ +10
• Digital output: >125dB, A-weighted (Dante, AES3, AES67)
• 100 meter (300 feet) line-of-sight operating range
• Selectable modulation modes optimize performance for spectral efficiency or audio quality: Standard - optimal coverage, low latency, High density - dramatic increase in max system channel count
• Switchable Power Levels = 2/10/40 mW (region dependent)
• Built-in tone generator and RF markers to facilitate range-testing

Design
• Interchangeable Shure microphone cartridges
• Backlit LCD with easy to navigate menu and controls
• Rugged metal construction
• Menu and power lockout

Power
• Shure SB920A rechargeable batteries for up to 9 hours of runtime, precision metering, and zero memory effect
• External charging contacts for docked charging

- KSM8 Dualdyne Cardioid Dynamic Capsule -
KSM8 Wireless Capsule for Black Shure Transmitters. Wireless KSM8 capsule enables wireless performance with the KSM8 Dualdyne Cardioid Dynamic Microphone.

- SB920A Lithium-Ion Rechargeable Battery -
ADX2, ADX2FD handheld transmitters exclusively use SB920A lithium-ion rechargeable batteries.
