Questions & Answers

FAQ

What is the tuning range of the ADX2/K8 Digital Handheld Wireless Transmitter?

The ADX2/K8 Digital Handheld Wireless Transmitter has a wide tuning range of up to 184 MHz.

What is the ShowLink remote control feature in the ADX2/K8 transmitter?

The ShowLink remote control feature in the ADX2/K8 transmitter allows for real-time parameter adjustments and interference avoidance, even from the booth.

What type of battery does the ADX2/K8 transmitter use?

The ADX2/K8 transmitter uses a Shure SB920A rechargeable battery, which provides up to 9 hours of runtime, precision metering, and zero memory effect.

What is the High Density (HD) mode in the ADX2/K8 transmitter?

The High Density (HD) mode in the ADX2/K8 transmitter is an innovative feature that optimizes performance for spectral efficiency or audio quality.

What is the KSM8 Dualdyne Cardioid Dynamic Capsule in the ADX2/K8 transmitter?

The KSM8 Dualdyne Cardioid Dynamic Capsule, in brushed nickel, enhances the wireless performance of the ADX2/K8 transmitter, making it a versatile and reliable choice for your audio needs.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Shure ADX2/K8 Specifications

ADX2: Audio Input

ADX2: Audio Input

Jump to...
  • Configuration

    Unbalanced

ADX2: RF Output

Jump to...
  • Frequency Range

    X55: 941-960MHz

  • Antenna Type

    Dual Band Helical

  • Occupied Bandwidth

    <200 kHz

  • Channel-to-Channel Spacing

    Standard Mode: 350 kHz
    High Density Mode: 125 kHz

  • Modulation Type

    Shure Axient Digital Proprietary

  • Power

    2 mW, 10 mW, 40 mW

  • Specific Absorption Rate (SAR)

    < 0.19 W/kg

ADX2: Battery

Jump to...
  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    2

ADX2: General

Jump to...
  • Color

    Nickel

  • Mic Offset Range

    -12 to 21 dB (In 1 dB steps)

  • Battery

    Shure SB920A Rechargeable Li-Ion

  • Battery Runtime @ 10 mW

    Shure SB920A: up to 9 hours

  • Housing

    Cast Aluminum

  • Operating Temperature Range

    0 Degree F to 122 Degree F (-18 Degree C to 50 Degree C)

  • Storage Temperature Range

    -20 Degree F to 165 Degree F (-29 Degree C to 74 Degree C)

  • Dimensions (L x Dia.)

    10 x 2" (254 x 51mm)

  • Weight

    Without Battery: 11.9 oz (338g)

KSM8 Capsule

Jump to...
  • Type

    Dual Diaphragm Dynamic (moving coil)

  • Frequency Response

    40 to 16,000 Hz

  • Polar Pattern

    Cardioid

  • Output Impedance

    300 Ohm

  • Sensitivity

    -51.5 dBV/Pa (2.66 mV)
    (At 1 kHz, open circuit voltage)

  • Polarity

    Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

  • Connector

    Three-pin professional audio (XLR), male

  • Housing

    Die-cast Aluminum with Paint or Brushed Nickel Finish
    1 Pa=94 dB SPL

  • Weight

    11.64 oz (330g)

SB920A Battery

Jump to...
  • Nominal Capacity

    2500 mAh

  • Nominal Voltage

    3.6 V

  • Housing

    Engineered Thermoplastic Resin

  • Charging Temperature Range

    32 to 140 Degree F (0 to 60 Degree C)

  • Discharging Temperature Range

    0 to 140 Degree F (-18 to 60 Degree C)

  • Recommended Storage Temperature Range

    50 to 77 Degree F (10 to 25 Degree C)

  • Dimensions (H x W x D)

    0.83 x 0.93 x 2.87" (20.8 x 23.7 x 72.8mm) (Each)

  • Weight

    1.9 oz (54g) (Each)

  • UPC Code

    042406499927

0 Accessories for Shure ADX2/K8 Digital Handheld Wireless Transmitter with KSM8 Microphone Capsule, X55: 941-960MHz, Nickel

About Shure ADX2/K8

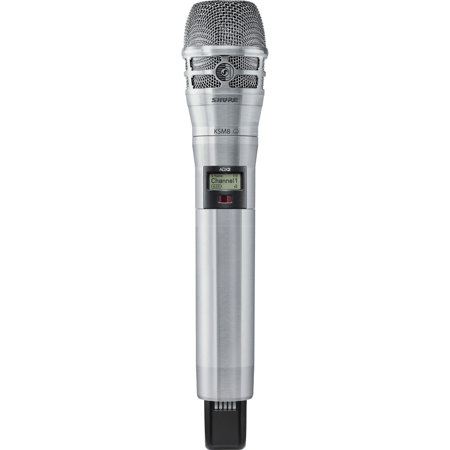

Let the ADX2/K8 Digital Handheld Wireless Transmitter with KSM8 Microphone Capsule, X55: 941-960MHz, Nickel set the stage for your exceptional audio performance. This innovative and reliable device, part of the esteemed Axient Digital Wireless Systems, is designed to deliver impeccable audio quality and RF performance, making it an ideal choice for live performances, broadcasts, and other applications requiring high-quality wireless audio.

The ADX2/K8 transmitter is equipped with a wide tuning range of up to 184 MHz, providing clear, interference-free communication over long distances. It also features advanced rechargeability, a streamlined design, and ShowLink remote control for real-time parameter adjustments, even from the booth.

This handheld wireless microphone transmitter is not only high-quality but also durable, thanks to its lightweight aluminum construction. It's designed to withstand the rigors of regular use, making it a reliable choice for professionals.

The ADX2/K8 transmitter also boasts a range of innovative features, including High Density (HD) mode, encryption, and automatic input staging for optimal gain setting. It also has a built-in tone generator and RF markers to facilitate range testing.

The device is compatible with interchangeable Shure microphone cartridges and features a backlit LCD with an easy-to-navigate menu and controls. It also offers menu and power lockout for added security.

Powering the ADX2/K8 transmitter is the Shure SB920A rechargeable battery, providing up to 9 hours of runtime, precision metering, and zero memory effect. The device also features external charging contacts for docked charging.

The KSM8 Dualdyne Cardioid Dynamic Capsule, in brushed nickel, enhances wireless performance, making the ADX2/K8 transmitter a versatile and reliable choice for your audio needs.

Please note: When purchasing separate wireless components, ensure their frequency bands match to guarantee proper system operation. The ADX2/K8 Digital Handheld Wireless Transmitter is exclusively designed to use SB920A lithium-ion rechargeable batteries.

Shure ADX2/K8 Features

  • Durable, moisture-resistant, lightweight metal case in nickel finish
  • Up to 9 hours of runtime with SB920A rechargeable battery
  • External contacts for docked charging with optional fully covered radome
  • Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Encryption-enabled, secure transmission
  • ADX2 also includes KSM8 Capsule

Key Features

  • High-quality handheld wireless microphone transmitter with wide tuning up to 184 MHz
  • Features ShowLink remote control for real-time parameter adjustments and interference avoidance
  • Durable and lightweight design with aluminum construction and backlit LCD for easy navigation

What's in the box:

  • Shure ADX2/K8 Digital Handheld Wireless Transmitter with KSM8 Microphone Capsule (Nickel)
  • 2x SB920A Rechargeable Battery
  • Threaded Adapter
  • Swivel Adapter
  • Zipper Bag
  • Shure 2 Year Limited Warranty
