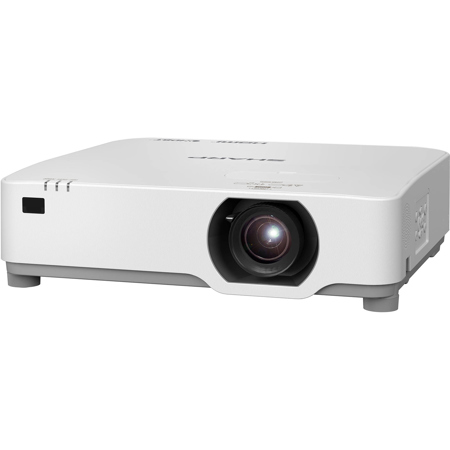

Sharp XP-P621U-W WUXGA LCD Laser Projector, White

SKU: SHXPP621UW MFR: XP-P621U-W
Earn VIP Reward Points

Key Features

  • Experience stunning WUXGA resolution for crystal-clear presentations and vibrant visuals.
  • Project bright, engaging content with 6,200 lumens, perfect for any meeting room.
  • Enjoy flexible installation with versatile lens shift and zoom, adapting to your space.
  • Connect effortlessly with multiple inputs including HDMI and HDBaseT for seamless integration.
  • Benefit from a long-lasting laser light source, providing 20,000 hours of reliable use.
  • Deliver impactful presentations with exceptional picture quality and dynamic contrast.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Sharp XP-P621U-W Specifications

Display

Display

Jump to...
  • Display Technology

    0.64" (1.63cm) LCD

  • Aspect Ratio

    16:10 (Supports 4:3, 16:9, 21:9)

  • Screen Resolution

    WUXGA 1920x1200

  • Maximum Resolution

    Up to 4K UHD (3840x2160) @ 30Hz via HDMI, HDBaseT

  • Brightness (typical)

    6,200 Lumens

  • Brightness (maximum)

    6,500 Center Lumens

  • Contrast Ratio (typical)

    3,000,000:1 (Dynamic)

Optical

Jump to...
  • Laser Type

    Blue laser with phosphor

  • Light Source Life

    20,000 hours (until 50% brightness)

  • Lens Adjustment Functions

    Manual focus, zoom, horizontal (+/- 20%) and vertical (+44%) shift

  • Throw Ratio

    1.08-1.76:1

  • Projection Distance

    2.3 to 22.9' (0.7 to 7m)

  • Supported Screen Size (maximum)

    30 to 300" (0.76 to 7.6m)

  • Lens (zoom)

    Manual, 1.6x

  • Lens (focus)

    Manual

  • Lens (F number, fnumber)

    F: 1.58-2.02, f: 15.3-24.6mm

Mechanical

Jump to...
  • Installation Orientation

    Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear

  • Keystone Correction

    +/- 30 Degree horizontal (manual), +/-30 Degree vertical (auto)

  • Fan Noise

    29 dB normal / 22 dB silent

Signal Compatibility/Connectivity

Jump to...
  • SD/HD Video Signal Compatibility

    480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K UHD

  • Input Terminals - External Control

    RS-232 (D-Sub 9pin), IR, LAN, HDBaseT

  • Input Terminals - RGB1(digital)

    HDMI w/HDCP (V1.4)

  • Input Terminals - RGB2(digital)

    HDMI w/HDCP (V1.4)

  • Input Terminals - RGB3(digital)

    HDBaseT w/HDCP (V1.4)

  • Output Terminals Audio

    Stereo Mini Jack (variable)

  • Power Consumption (typical)

    315W / 260W / 8W / 0.3W

  • Input Current

    3.8A - 1.6A

  • Power Requirements

    100-240V AC, 50/60 Hz

  • PC Signal Compatibility

    VGA, SVGA, XGA, WXGA, SXGA, WUXGA

  • Macintosh Signal Compatibility

    Yes

Synchronization Range

Jump to...
  • Horizontal

    15 to 100KHz

  • Vertical

    50 to 120Hz

Environmental Conditions

Jump to...
  • Operating Temperature

    32 Degree F to 113 Degree F (0 Degree C to 45 Degree C)

  • Storage Temperature

    14 Degree F to 122 Degree F (-10 Degree C to 50 Degree C)

  • Operating Humidity

    20% - 80% (Non-Condensing)

  • Storage Humidity

    20% - 80% (Non-Condensing)

  • Operating Altitude

    8,500' (0 to 2600m), >5,500' (1,600m) req High Altitude (fan mode)

  • Storage Altitude

    0 to 39,370' (0 to 12,000m) (above sea level)

Regulations

Jump to...
  • Regulations

    UL (62368-1 3rd ed.), FCC Part15 Class B, FDA Laser Notice 57, Prop65, TPCH

Additional Features

Jump to...
  • Additional Features

    Built-in 16W speaker
    Auto Power On & Off based on signal detection
    NaViSet Administrator 2 software support for management
    Crestron
    AMX
    PJLink support

General

Jump to...
  • Color

    White

  • Country of Origin

    China

  • Dimensions (W x H x D)

    18.9 x 5.6 x 16" (480 x 143 x 407mm)

  • Weight

    21 lbs (9.6kg)

About Sharp XP-P621U-W

The Sharp P621U is a premier Entry Installation Series, LCD, laser projector designed to meet the needs of higher education and corporate users. Sharp's patented IP5x sealed LCD cooling system eliminates the need for a filter and combined with the maintenance free laser light source this projector is as close to set-and-forget as you will find in projection.

Another benefit of Sharp's advanced cooling system is whisper quiet operation that eliminates the distraction that can sometimes be caused by a more noisy projector. At 6200 lumens, WUXGA resolution and outstanding LCD color fidelity the P Series delivers impressive looking images in all kinds of demanding applications. Enjoy time-saving installation flexibility with broad horizontal and vertical manual lens shift, a 1.6x manual zoom lens, roll free capability and HDBaseT input.

Technologies

4K Ready
Display stunning 4K content using proprietary high performance video processing/scaling chip without the loss of critical details

Auto Power On
Powers on the projector when a computer signal is detected

Carbon Savings Meter
Calculates the positive effects of operating the projector in ECO Mode, which is encouraged by an optional message at startup. A green ECO Mode button on the remote control makes the switch easy

Cornerstone Correction
Allows for horizontal, vertical and diagonal image correction for aligned images even when the projector is set up at an angle to the screen

Crestron Roomview
Provides unified management, including the ability to switch the power on and off for multiple projectors connected to a network

Dual HDMI inputs (with HDCP)
Ensure quick switching between presentations and allows for simultaneous digital connections of high-definition sources

Dust-Resistant Design
Sealed optical block minimizes the effects of dust, helping to ensure the delivery of crisp, distortion-free images

ECO Mode
Extends light source life, lowers audible noise and reduces total cost of ownership

Landscape/Portrait Capable
Allows for distortion-free display of content in various orientations, creating new application opportunities

Lens Shift
Lens shift saves time and simplifies installations by adding flexibility to your projector placement

NaViSet Administrator 2
Control, monitor and manage your display and projector settings in an all-in-one support system with NaViSet Administrator 2. This software package provides unified control and asset management across product lines through an intuitive graphical user interface and allows for settings to be updated, tasks to be queried and reports to be generated using RS-232 or TCP/IP communication for large screen displays and projectors or DDC/CI protocol for desktop units

Portrait Mode
Ability to install a projector in its side to create a 10:16 portrait image

Power Management
Enables projector to automatically turn off when an incoming signal is not detected from any of the inputs

Remote Diagnostics
Enables the user to monitor and adjust the projector from a remote location

Roll-Free Installation
Allows the projector to be rotated freely (360 Degree) in order to point up or down depending on the installation requirements

Variable Audio Out
Adjusts the volume of an external speaker system using the projector's remote control

Wired Network Connection
Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability)

Sharp XP-P621U-W Features

  • IP5x sealed cooling system provides a filter-free projection solution
  • Whisper quiet operation for minimal distraction
  • LCD, laser technology delivers an impressive and color accurate image
  • Manual horizontal & vertical lens shift enables flexible projector placement
  • Built-in HDBaseT input provides a single connection for video, audio and control
  • 4K Ready - Display stunning 4K UHD 30Hz content using Sharp's proprietary high performance video processing/scaling chip
  • Supports 21:9 aspect ratio for more engaging meeting spaces
  • Eco-friendly features, minimal maintenance and a cost saving design mean these projectors are great for demanding applications in higher education classrooms and corporate conference rooms

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience stunning WUXGA resolution for crystal-clear presentations and vibrant visuals.
  • Project bright, engaging content with 6,200 lumens, perfect for any meeting room.
  • Enjoy flexible installation with versatile lens shift and zoom, adapting to your space.
  • Connect effortlessly with multiple inputs including HDMI and HDBaseT for seamless integration.
  • Benefit from a long-lasting laser light source, providing 20,000 hours of reliable use.
  • Deliver impactful presentations with exceptional picture quality and dynamic contrast.

What's in the box:

  • Sharp XP-P621U-W WUXGA LCD Laser Projector (White)
  • Remote Control
  • 2x AAA Batteries
  • Power Cord
  • Lens Cap
  • Security Sticker
  • Sharp 5 Year Limited Warranty
