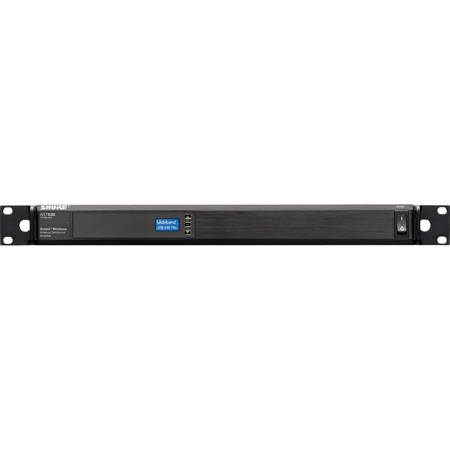

Shure AXT630 Axient Wireless Antenna Distribution Amplifier System, 470-698MHz

SKU: SHAXT630US MFR: AXT630US
Earn VIP Reward Points

Key Features

  • Enhance wireless microphone systems with the Shure AXT630 antenna distribution amplifier.
  • Wideband Shure antenna amplifier: 470-698MHz, ensures optimal signal for clear audio.
  • Simplify setup: Includes coaxial cables and mounting hardware for quick integration.
  • Dual Ethernet ports enable network control and monitoring of your wireless system.
  • Rugged steel housing protects against damage, ensuring durability for touring use.
  • Cascade outputs allow linking multiple units, expanding coverage for large venues.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Shure AXT630 Specifications

RF Input

RF Input

Jump to...
  • Connector Type

    BNC

  • Configuration

    Unbalanced, active

  • Band Filters

    Wideband: 470-698MHz
    Band G1: 470-530MHz
    Band H4: 518-578MHz
    Band J5: 578-638MHz
    Band L3: 638-698MHz

  • Impedance

    50 Ohm

  • Bias Voltage

    12 V DC, 150 mA (300 mA maximum)

  • RF Frequency Range

    470-698MHz

Distribution Output

Jump to...
  • Connector Type

    BNC (4 pairs)

  • Configuration

    Unbalanced, active

  • Impedance

    50 Ohm

  • Gain Adjustment Range

    Cascade Enabled: -15 dB to 0 dB (In 1 dB steps)
    Cascade Disabled: -12 dB to +3 dB (In 1 dB steps)

  • Output Intercept Point

    >25 dBm, typical

Cascade Output

Jump to...
  • Connector Type

    BNC (1 pair)

  • Configuration

    Unbalanced, wideband

  • Impedance

    50 Ohm

  • Insertion Loss

    <5 dB

Networking

Jump to...
  • Power Over Ethernet (PoE)

    50 V DC, Class 1

  • Network Interface

    Dual Port Ethernet 10/100 Mbps

  • Network Addressing Capability

    DHCP or Manual IP address

General

Jump to...
  • Housing

    Steel; Extruded aluminum

  • Operating Temperature Range

    -18 Degree C to 63 Degree C (0 Degree F to 145 Degree F)

  • Storage Temperature Range

    -29 Degree C to 74 Degree C (-20 Degree F to 165 Degree F)

  • Power Requirements

    100 to 240 V AC, 50-60 Hz

  • Current Drain

    1.0 A RMS (referenced at 120 V AC)

  • Dimensions (H x W x D)

    1.7 x 19 x 14.4" (44 x 483 x 366mm)

  • Weight

    10.1 lbs (4.6kg)

  • UPC Code

    042406185370

About Shure AXT630

A cutting-edge solution for superior wireless signal distribution, the AXT630 Axient Wireless Antenna Distribution Amplifier System operates within the 470-698MHz frequency range. This high-quality, durable system from the reputable brand Shure, delivers ultra-linear amplification and precision filtering for optimal performance in any setting.

The AXT630 is equipped with wideband filtering and offers up to 15 dB of selectable RF attenuation, ensuring signal-to-noise optimization. Its innovative design includes selectable 60MHz input filters that align with the available frequency bands of Axient transmitters. This feature provides additional protection against strong out-of-band signals and contributes to a lower overall RF noise floor, enhancing the reliability of your wireless connections.

This advanced antenna distribution system features four BNC antenna output pairs, distributing the filtered signal to multiple receivers. An unfiltered RF cascade port is also included, allowing for seamless connection to wideband devices such as the Axient Spectrum Manager.

The AXT630 is networkable via an Ethernet connection, enabling WWB6 control of filtering ranges, antenna power, and attenuation. This feature ensures easy setup and control, making the system an ideal choice for large-scale events or installations requiring multiple wireless devices.

The front panel interface of the AXT630 provides easy access to control features, while the inclusion of two PoE-enabled Ethernet ports and IEC in/out power ports allow for daisy-chaining of AC power. This innovative, reliable, and advanced wireless antenna distribution amplifier system is designed to handle high signal levels without distortion, ensuring consistent, high-quality audio performance.

Shure AXT630 Features

  • Selectable input filtering provides system-wide protection against strong out-of-band signals
  • Wideband filtering option covers multiple bands
  • Up to 15 dB of selectable RF attenuation for signal-to-noise optimization
  • Front panel interface and Wireless Workbench 6 software control provide easy setup and control of filtering, antenna power, and attenuation
  • BNC outputs: 4 antenna output pairs
  • Wideband RF cascade port with selectable 3 dB make-up gain for connecting wideband devices
  • Ethernet Networking: 2 PoE enabled Ethernet ports
  • IEC power ports enable daisy-chaining of AC power

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Enhance wireless microphone systems with the Shure AXT630 antenna distribution amplifier.
  • Wideband Shure antenna amplifier: 470-698MHz, ensures optimal signal for clear audio.
  • Simplify setup: Includes coaxial cables and mounting hardware for quick integration.
  • Dual Ethernet ports enable network control and monitoring of your wireless system.
  • Rugged steel housing protects against damage, ensuring durability for touring use.
  • Cascade outputs allow linking multiple units, expanding coverage for large venues.

What's in the box:

  • Shure AXT630 Axient Wireless Antenna Distribution Amplifier
  • 12x UA802 2' Coaxial Antenna Cable (RG-58)
  • 95A9128 IEC AC Power Cable
  • 95A9129 IEC AC Extension Cable
  • C803 Shielded 3' Ethernet Cable
  • C8006 Shielded 8" Ethernet Jumper Cable
  • 95B9023 22" Coaxial Cable
  • 95C9023 33" Coaxial Cable
  • 90XN1371 Mounting Hardware
  • Shure 2 Year Limited Warranty
