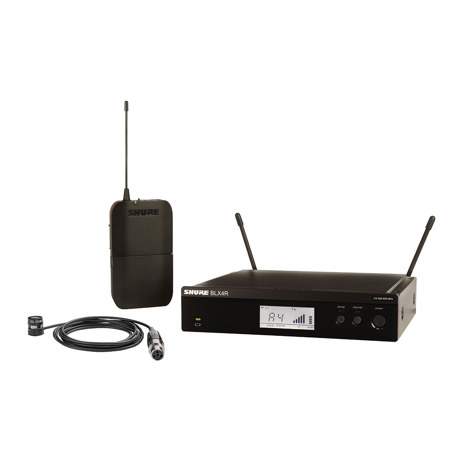

Shure BLX14R Wireless Rackmount Presenter System w/WL185M Cardioid Lavalier Mic H10: 542-571MHz

SKU: SHBL1485H10 MFR: BLX14R/W85M-H10
Earn VIP Reward Points

Key Features

  • Professional-quality sound with Shure BLX14R Wireless Rackmount Presenter System
  • Reliable signal range up to 300 feet for uninterrupted connectivity
  • Easy setup with one-touch scan and frequency QuickScan technology
  • Durable BLX1 Bodypack Transmitter with adjustable gain control
  • WL185M Cardioid Lavalier Microphone for crystal-clear vocal reproduction
  • Includes complete accessories: rackmount kit, power supply, and more
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

5 Year

$179.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure BLX14R Wireless Rackmount Presenter System w/WL185M Cardioid Lavalier Mic Specifications

General

General

Jump to...
  • Available Frequency Bands

    H10: 542-571MHz, H11: 572-596MHz, H9: 512-541MHz, J11: 596-616MHz

BLX1 Transmitter

Jump to...
  • Audio Input Level

    Gain Max: -16dBV Maximum
    Min (0dB): +10dBV Maximum

  • Gain Adjustment Range

    26dB

  • Input Impedance

    1 MOhms

  • RF Transmitter Output

    10mW, typical

  • Housing

    Molded ABS

  • Power Requirements

    2x LR6 AA batteries, 1.5V, alkaline

  • Battery Life

    Up to 14 hours (alkaline)

  • Frequency Band

    H11: 572-596MHz

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

  • Dimensions (H x W x D)

    4.33 x 2.52 x 0.83" (110 x 64 x 21mm)

  • Weight

    2.65 oz (75.13g) (without batteries)

BLX4R Receiver

Jump to...
  • Output

    1x XLR Output
    1x 1/4" (6.35mm) Output

  • Output Impedance

    XLR: 200Ohms
    1/4": 50Ohms

  • Audio Output Level

    XLR Connector: -20.5dBV into 100kOhms Load (Reference +/-33kHz with 1kHz Tone) 1/4": -13dBV into 100kOhms Load (Reference +/-33kHz with 1kHz Tone)

  • RF Sensitivity

    -105dBm for 12dB SINAD, Typical

  • Image Rejection

    >50dB, Typical

  • Housing

    Molded ABS, Steel

  • Power Requirement

    12 to 15V DC at 260mA, Supplied by External Power Supply (Tip Positive)

  • Dimensions (H x W x D)

    1.97 x 7.80 x 6.42" (50 x 198 x 163mm)

  • Weight

    2.2 lbs (1kg)

WL185M Microphone

Jump to...
  • Microphone Type

    Lavalier

  • Compatible Transmitters

    Shure: Axient AD1, Axient ADX1, Axient AXT100, BLX1, GLXD1, MXW1, PGXD1, QLXD1, SLX1, SLXD1, ULX1, ULXD1

  • Intended Sound Sources

    Vocals, Speech

  • Sound Field

    Mono

  • Element Type

    1x Electret Condenser

  • Polar Pattern

    Cardioid

  • Included Tone Caps

    No

WL185M Microphone: Performance

Jump to...
  • Frequency Range

    70 Hz to 20 kHz

  • Maximum SPL

    140.5 dB SPL (1% THD)

  • Sensitivity

    -43 dBV/Pa

  • Dynamic Range

    120.5 dB

  • Signal-to-Noise Ratio

    74 dB

WL185M Microphone: Connectivity

Jump to...
  • Output Connector

    1x TA4F/Mini-XLR 4-Pin Female

  • Cable Length

    4' / 1.22 m

WL185M Microphone: Power

Jump to...
  • Power Sources

    Plug-In Power

  • Operating Voltage

    5 V (Plug-In Power)

WL185M Microphone: Physical

Jump to...
  • Color

    Black

  • Material

    Aluminum

  • Dimensions (Dia. X L)

    0.5 x 0.53" (12.74 x 13.55mm) (Approx.)

  • Weight

    0.7 oz (20g) (with Cable)

  • UPC Code

    42406851497

About Shure BLX14R Wireless Rackmount Presenter System w/WL185M Cardioid Lavalier Mic

It is time to elevate your presentations with the Shure BLX14R Wireless Rackmount Presenter System, featuring the WL185M Cardioid Lavalier Microphone. This system is engineered to deliver professional-quality sound with effortless setup, ensuring legendary audio performance straight out of the box. The package includes a BLX4R half-rack single-channel receiver, a WL185M lavalier microphone paired with a BLX1 bodypack transmitter, a lavalier clip, a power supply, two AA batteries, windscreens, a rackmount kit, two 1/4 wave antennas, and a comprehensive user guide.

Experience superior audio quality that allows you to perform with confidence, free from the constraints of wires. The Shure BLX14R system is designed to meet the needs of any band or vocal performance, providing reliable signal transmission with an impressive range of up to 300 feet (100 meters). This ensures uninterrupted connectivity, allowing you to engage with your audience without limitations.

The BLX system is renowned for its easy setup, featuring one-touch scan and selection that gets you up and running in no time. With a remarkable battery life of up to 14 hours from a single pair of AA batteries, the show can continue without the worry of power depletion.

Versatility is a hallmark of the BLX systems, offering a wide array of Shure microphones to suit your specific requirements. The BLX1 Bodypack Transmitter is an analog wireless bodypack designed for use with BLX and BLX-R Analog Wireless Systems. It boasts a durable, lightweight, ergonomic design with adjustable gain control, ensuring optimal performance.

The BLX4R Wireless Rackmount Receiver enhances your audio experience with improved linearity and frequency response. It features group and channel scan for seamless setup, frequency QuickScan for locating the best open frequency, adjustable output levels, and a two-color audio status indicator LED. Its rugged metal construction and removable antennas make it ideal for quick antenna distribution, and it comes with a rackmount kit for easy installation.

The WL185M Low-Profile Cardioid Lavalier Microphone is part of Shure's professional line of lavalier microphones, offering full and accurate sound quality with an improved presence response for crystal-clear vocals. Its compact design is 8 mm shorter than previous models, and it includes a snap-fit windscreen, a single tie clip, and a zippered bag for convenient storage and transport. Available in black or white with LEMO or TA4F connector options, the innovative tie clip can be rotated in 90-degree intervals for precise positioning, making it perfect for speakers, presenters, and performers.

Choose the Shure BLX14R Wireless Rackmount Presenter System with WL185M Cardioid Lavalier Microphone for a seamless, high-quality audio experience that meets the demands of any professional setting.

Shure BLX14R Wireless Rackmount Presenter System w/WL185M Cardioid Lavalier Mic Features

  • BLX4R Wireless Rackmount Receiver
  • XLR and 1/4" output connectors
  • Microprocessor-controlled internal antenna diversity
  • Two-color audio status indicator LED - Green: Normal audio levels, Red: Excessive audio levels (overload / clipping)
  • Adjustable output level
  • LCD display with detailed RF and audio metering
  • BLX1 Bodypack Transmitter
  • Quick and easy receiver frequency matching
  • TQG connection for use with Shure lavalier, headset, earset and instrument microphones and guitar cables
  • Easily accessible On / Off switch
  • WL185M Low-Profile Cardioid Lavalier Microphone
  • Cardioid (WL185m) polar pattern
  • 8mm shorter than original WL18X series
  • Higher dynamic range with improved max SPL, self-noise, and general sound quality when compared to the original WL18X series
  • TA4F connector option
  • Ships with lavalier, tie clip, snap-fit foam windscreen, and zippered storage bag

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Professional-quality sound with Shure BLX14R Wireless Rackmount Presenter System
  • Reliable signal range up to 300 feet for uninterrupted connectivity
  • Easy setup with one-touch scan and frequency QuickScan technology
  • Durable BLX1 Bodypack Transmitter with adjustable gain control
  • WL185M Cardioid Lavalier Microphone for crystal-clear vocal reproduction
  • Includes complete accessories: rackmount kit, power supply, and more

What's in the box:

  • BLX4R Wireless Rackmount Receiver
  • BLX1 Bodypack Transmitter
  • WL185M Low-Profile Cardioid Lavalier Microphone
  • Power Supply
  • 2x AA Batteries
  • Rackmount Hardware Kit
  • Single-Mount Tie Clip
  • Dual-Mount Tie Clip
  • Snap-Fit Windscreen
  • Carrying Pouch
  • Carrying Case
  • Shure 2 Year Limited Warranty
