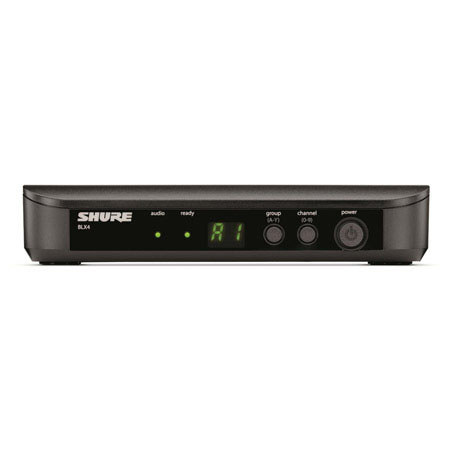

Shure BLX14/P31 Headset System, Includes BLX1 Transmitter, BLX4 Receiver, PGA31 Headset Microphone, Power Supply, Clip, Windscreens, J10:584-608 MHz

SKU: SHBL14P31J10

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2020-01-22T08:45:02

Rated 5 out of 5

Simple and easy

We already had a set and in needs of a secondary set. We were on the fence between this or it’s big brother BLX88. We ended with buying this. The setup was simple and easy (a single push of a button and making sure the sender channel matches the receiver) and did not cause any issues with our existing set.

DAVID L.

2016-08-18T04:33:35

Rated 5 out of 5

Shure Blx14/p31 beats them all!!!

Great price. Sounds like a ($) head set system for half the price. The transmitter although is tiny, don't let that fool you....it has a one button scanner for best reception that hits it right on the nose...ooohhh wait a minute...it has no external antenna. Don't let that fool you either, because it does deliver the 300 ft. power to your reciver with the know Shure quality of a wired Shure microphone just as it states on the description of the item. This is my third week of using this wireless head set system in our mid size Church. I'm the music minister of this Church with 39 years experience as a piano, bass guitar and acoustic guitar player. I am also a certified electronic thechnician with 40 years experience and with 23 years as a windows platform computer thechnician. I'm also very happy that I read all the previous reviews I could find to make a wise decision and choice on this purchase and truly hope you can find my review helpfull in your quest on looking for the best one at right price.

Jerry H.

Shure BLX14/P31-J10 Specifications

  • Frequency

    J10:584-608 MHz

  • Working Range

    91 m (300 ft) Line of Sight

  • Audio Frequency Response

    50 to 15000Hz

  • Total Harmonic Distortion

    0.5%, typical

  • Dynamic Range

    100 dB, A-weighted, typical

  • Operating Temperature

    -18deg.C (0deg.F) to 57deg.C (135deg.F)

  • Polarity

    Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output

  • BLX1 Transmitter: Audio Input Level

    gain - max: -16 dBV maximum
    min (0 dB): +10 dBV maximum

  • BLX1 Transmitter: Gain Adjustment Range

    26 dB

  • BLX1 Transmitter: Input Impedance

    1 MOhms

  • BLX1 Transmitter: RF Transmitter Output

    10 mW, typical varies by region

  • BLX1 Transmitter: Housing

    Molded ABS

  • BLX1 Transmitter: Power Requirements

    2 LR6 AA batteries, 1.5 V, alkaline

  • BLX1 Transmitter: Battery Life

    Up to 14 hours (alkaline)

  • BLX4 Receiver: Output Impedance

    XLR connector: 200 ohms
    6.35 mm (1/4") connector: 50 ohms

  • BLX4 Receiver: Audio Output Level

    XLR connector: -27 dBV (into 100 kohms load)
    6.35 mm (1/4") connector: -13 dBV (into 100 kohms load)

  • BLX4 Receiver: RF Sensitivity

    -105 dBm for 12 dB SINAD, typical

  • BLX4 Receiver: Image Rejection

    >50 dB, typical

  • BLX4 Receiver: Housing

    Molded ABS

  • BLX4 Receiver: Power Requirements

    12-15 V DC at 160 mA (BLX88, 320 mA), supplied by external power supply (tip positive)

  • PGA31 Mic: Type

    Electret Condenser

  • PGA31 Mic: Frequency Response

    60 Hz to 20,000 Hz

  • PGA31 Mic: Polar Pattern

    Unidirectional (Cardioid)

  • PGA31 Mic: Output Impedance at 1 kHz

    600 ohms

  • PGA31 Mic: Audio Output Level

    -50.0 dBV/Pa

  • PGA31 Mic: Signal-To-Noise at 1 kHz

    66 dB

  • PGA31 Mic: Maximum SPL

    1000 ohms load, at 3%THD
    145.0 dB

  • PGA31 Mic: Dynamic Range at 1 kHz

    1000 ohms load
    117.0 dB

  • PGA31 Mic: Equivalent Output Noise

    typical, A-Weighted
    28 dB

  • PGA31 Mic: Power Requirements

    +5 V DC (nominal), 10 V maximum (DC bias)

  • PGA31 Mic: Polarity

    Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1

  • PGA31 Mic: Cable

    1.3 m / 4.2'

  • PGA31 Mic: Connector

    TA4F

  • Dimensions (H x W x D)

    BLX1 Transmitter: 110 x 64 x 21mm / 4.33 x 2.51 x 0.82"
    BLX4 Receiver: 40 x 188 x 103mm / 1.57 x 7.40 x 4.05"

  • Weight

    PGA31 Mic: 45 g (1.59 oz)
    BLX1 Transmitter: 75 g (2.64 oz) without batteries
    BLX4 Receiver: 241 g (8.5 oz)

  • UPC Code

    042406391726

About Shure BLX14/P31-J10

FEATURED REVIEWS

Simple and easy

By DAVID L.

We already had a set and in needs of a secondary set. We were on the fence between this or it’s big brother BLX88. We ended with buying this. The setup was simple and easy (a single push of a button and making sure the sender channel matches the receiver) and did not cause any issues with our existing set.

Shure Blx14/p31 beats them all!!!

By Jerry H.

Great price. Sounds like a ($) head set system for half the price. The transmitter although is tiny, don't let that fool you....it has a one button scanner for best reception that hits it right on the nose...ooohhh wait a minute...it has no external antenna. Don't let that fool you either, because it does deliver the 300 ft. power to your reciver with the know Shure quality of a wired Shure microphone just as it states on the description of the item. This is my third week of using this wirel...

View full Review

What's in the box:

  • Shure BLX4 Wireless Receiver
  • BLX1 Bodypack Transmitter
  • PGA31 Headset Microphone
  • Power Supply
  • Clothing Clip
  • Windscreens
  • User Guide
  • Shure Warranty
