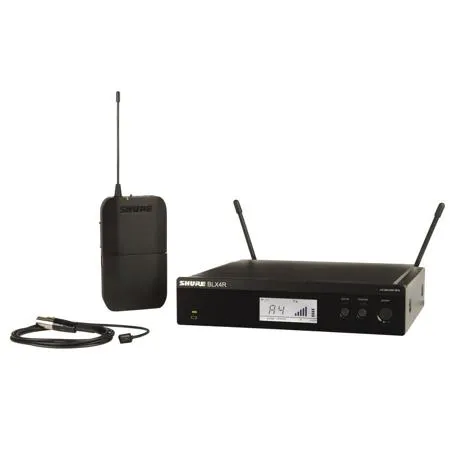

Shure BLX14R Wireless Rackmount Presenter System with WL93 Lavalier Microphone H9: 512-542MHz

SKU: SHBL14RW93H9 MFR: BLX14R/W93-H9
Earn VIP Reward Points

Key Features

  • Crystal-clear audio: The WL93 lavalier microphone ensures exceptional sound quality.
  • Go wireless: Experience freedom with a 300-foot range for dynamic presentations.
  • Rackmount receiver: Easily integrate the wireless system into your existing setup.
  • Long battery life: Enjoy up to 14 hours of continuous use with the included batteries.
  • Ideal for presenters: Perfect wireless microphone system for lectures and speeches.
  • Durable build: Shure's reputation delivers a reliable, road-ready wireless microphone.
See More Product Details
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is included in the BLX14R Wireless Rackmount Presenter System package?

The package includes the WL93 Miniature Lavalier Microphone, BLX1 bodypack transmitter, BLX4R rack mount receiver, single and dual rackmount kit, two 1/4 wave antennas, zipper bag, power supply, 2 AA batteries, and a user guide.

What are the advantages of the WL93 Miniature Lavalier Microphone?

The WL93 Miniature Lavalier Microphone is small and discreet, making it ideal for a variety of settings such as lectures and live performances. It also provides clear sound in speech applications and features a smooth frequency response.

What is the function of the BLX1 bodypack transmitter?

The BLX1 bodypack transmitter is a durable and lightweight device that is part of the BLX Wireless Systems. It features an ergonomic design and adjustable gain control, offering users maximum comfort and flexibility during use.

What features does the BLX4R rack mount receiver offer?

The BLX4R rack mount receiver provides improved linearity and frequency response. It features frequency QuickScan, adjustable output levels, and a two-color audio status indicator LED for easy monitoring. It is also rackmountable and constructed with rugged metal for durability.

Is the BLX14R Wireless Rackmount Presenter System easy to set up?

Yes, the BLX14R Wireless Rackmount Presenter System is designed for easy setup and intuitive use, making it accessible even for those new to wireless microphone systems.

Reviews about this item

Review Summary

Shure BLX14R/W93 Specifications

System
  • Wireless Technology

    Analog UHF

  • Number of RF Channel Frequencies

    123

  • Included Transmitters

    1xBodypack

  • Diversity

    Antenna Diversity

  • Available RF Frequency Bands

    H11: 572-596MHz, J11: 596-616MHz

  • RF Bandwidth

    H11: 24 MHz
    J11: 14 MHz

  • RF Channel Scanning

    Auto-Scan

  • Max Operating Range

    300' (91.4m) (Line of Sight)

  • Max Transmitters per Band

    12

  • Dynamic Range

    100 dBA

BLX1 Transmitter

Jump to...
  • Transmitter Type

    Bodypack

  • RF Output Power

    10 mW

  • Audio I/O

    1xTA4/Mini XLR 4-Pin Male Input (Lockable)

  • Muting

    Off/On Switch

  • Auto-Level Control

    No

  • Gain Range

    -16 to +10 dB

  • Sync Method

    Manual

  • Antenna

    1xFlexible Whip, Fixed (Beltpack)

  • Power Requirements

    Battery

  • Battery

    2xAA (Included)

  • Approx. Battery Life

    14 Hours (Alkaline)

  • Display & Indicators

    1 xMulti-Segment LED (Channel, Group)
    1 xLED (Battery Status, Power)

  • Housing

    ABS

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

  • Dimensions

    2.5 x 4.3 x 0.8" (64 x 110 x 21mm)

  • Weight

    Without Batteries: 2.6oz (75g)

BLX4R Receiver

Jump to...
  • Receiver Type

    Rackmount

  • Mounting Options

    Rackmount (with Included Hardware)

  • Rackmount Size

    1 RU (1/2 Rack)

  • Antenna

    2 x1/4 Wave External, Detachable (Rear-Mount)

  • Number of Audio Channels

    1

  • Audio I/O

    1xXLR 3-Pin Male Balanced Output

  • Audio Output Level

    XLR Output: -20.5 dBV (Mic Level)
    1/4" Output: -13 dBV (Instrument Level)

  • Frequency Response

    50 Hz to 15 kHz (Dependent on Mic)

  • Impedance

    XLR Output: 200 Ohms
    1/4" Output: 50 Ohms

  • Adjacent Channel Isolation

    >50 dB

  • Power Requirements

    AC/DC Power Adapter

  • AC/DC Power Adapter

    12 to 15 VDC at 260 mA, Center-Positive (Included)

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz at 150 mA

  • Display & Indicators

    1xBacklit LCD (AF Level, Channel, Group, Metering, RF Level)
    1xLED (Transmitter Battery Status)

  • Housing

    Steel

  • Dimensions

    Without Mounting Hardware, Antennas: 7.8 x 2 x 6.4" (198 x 50 x 163mm)

  • Weight

    35.2oz (998g)

WL93 Lavalier Microphone

Jump to...
  • Microphone Type

    Lavalier

  • Sound Field

    Mono

  • Capsule

    Electret Condenser

  • Polar Pattern

    Omnidirectional

  • Frequency Range

    50 Hz to 20 kHz

  • SNR

    76 dB

  • Equivalent Noise Level

    28 dB

  • Maximum SPL

    120 dB SPL

  • Sensitivity

    -38 dBV/Pa

  • Dynamic Range

    102 dB

  • Output Connector

    1xTA4/Mini XLR 4-Pin Female (Lockable)

  • Cable Length

    4.17' (1.27m)

  • Operating Voltage

    2 to 10 V

  • Weight

    0.56oz (16g)

  • UPC Code

    042406470582

About Shure BLX14R/W93

Features WL93 Lavalier Microphone. Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it's the most accessible way to own the stage.

Includes WL93 lavalier microphone, BLX1 bodypack transmitter, BLX4R rack mount receiver, single and dual rackmount kit, two 1/4 wave antennas, zipper bag, power supply, 2 AA batteries, and user guide.


- BLX1 Bodypack Transmitter -
Analog wireless bodypack BLX1 for use as part of BLX and BLX-R Analog Wireless Systems.

The durable BLX1 features a lightweight, ergonomic design and adjustable gain control. For use with BLX Wireless Systems.


- BLX4R Wireless Rackmount Receiver -
Rackmount analog wireless receiver provides improved linearity and frequency response with group and channel scan for easy set-up. Features include frequency QuickScan, adjustable output levels, and two-color audio status indicator LED.

Rackmount able and featuring rugged metal construction, the BLX4R offers simple setup and intuitive controls. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference. Removable antennas allow for quick antenna distribution. For use with BLX Wireless Systems.

Rackmount kit included.


- WL93 Miniature Lavalier Microphone -
Omnidirectional miniature lavalier microphone provides full, clear sound in speech applications, like broadcast presenting and speeches. Features smooth frequency response, controlled low-frequency roll off, and versatile mounting accessories.

Model WL93 Microphones are economical omnidirectional, subminiature, lavalier, condenser microphones designed for general speech applications where a visually unobtrusive microphone is desirable.

All WL93 models are supplied with a mounting block with attached tie bar, a sew-on mounting bracket, and an acoustic windscreen to minimize wind noise in outdoor applications.

All WL93 models include a cable terminated with a 4-pin mini connector which connects directly to a Shure wireless body-pack transmitter.

Shure BLX14R/W93 Features

  • BLX1 Bodypack Transmitter
  • Quick and easy receiver frequency matching
  • TQG connection for use with Shure lavalier, headset, earset and instrument microphones and guitar cables
  • Easily accessible On / Off switch
  • BLX4R Wireless Rack Mount Receiver
  • XLR and 1/4" output connectors
  • Microprocessor-controlled internal antenna diversity
  • Two-color audio status indicator LED - Green: Normal audio levels, Red: Excessive audio levels (overload / clipping)
  • Adjustable output level
  • LCD display with detailed RF and audio metering
  • WL93 Miniature Lavalier Microphone
  • Subminiature lavalier design; ideal size for theater, television, broadcasting, video, film, and sound reinforcement
  • Small, inconspicuous mounting hardware
  • Full, clear sound comparable to larger microphones
  • Smooth extended frequency response with presence rise specially tailored for chest-worn microphone operation
  • Controlled low-frequency rolloff reduces low-frequency clothing and room noise
  • Low distortion, wide dynamic range
  • Uniform omnidirectional polar pattern

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Crystal-clear audio: The WL93 lavalier microphone ensures exceptional sound quality.
  • Go wireless: Experience freedom with a 300-foot range for dynamic presentations.
  • Rackmount receiver: Easily integrate the wireless system into your existing setup.
  • Long battery life: Enjoy up to 14 hours of continuous use with the included batteries.
  • Ideal for presenters: Perfect wireless microphone system for lectures and speeches.
  • Durable build: Shure's reputation delivers a reliable, road-ready wireless microphone.

What's in the box:

  • BLX1 Bodypack Transmitter
  • BLX4R Wireless Rackmount Receiver
  • WL93 Miniature Lavalier Microphone
  • Tie Clip and Windscreen
  • 2x Antennas
  • 2x BNC Antenna Adapters
  • 2x 22" BNC Antenna Cables
  • Hardware Mounting Set
  • Short Rackmount Bracket with Link Bar
  • Long Rackmount Bracket
  • 2x AA Batteries
  • PS24US Power Supply
  • Padded Zipper Case
  • Limited 2-Year Manufacturer Warranty
