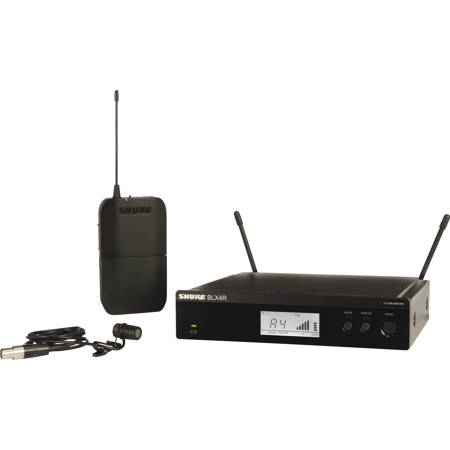

Shure BLX14R Wireless Rackmount Presenter System with WL185 Lavalier Microphone H11: 572-596MHz

SKU: SHBLX1485H11 MFR: BLX14R/W85-H11
Earn VIP Reward Points

Key Features

  • Achieve crystal-clear audio with this Shure wireless lavalier microphone system, perfect for presentations.
  • Enjoy freedom of movement with a reliable wireless range up to 300 feet for dynamic performances.
  • The BLX14R rackmount receiver offers easy setup and integration into your existing audio equipment.
  • Benefit from the WL185 cardioid lavalier mic, minimizing background noise for focused sound capture.
  • With up to 14 hours of battery life, this wireless microphone ensures you're always ready to record.
  • Ideal for lecturers, speakers, and performers, this system delivers professional-grade sound quality.
See More Product Details

Product Options

Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure BLX14R/W85 Specifications

System
  • Wireless Technology

    Analog UHF

  • Number of RF Channel Frequencies

    123

  • Included Transmitters

    1x Bodypack

  • Diversity

    Antenna Diversity

  • Available RF Frequency Bands

    H11: 572-596MHz, J11: 596-616MHz

  • RF Bandwidth

    H11: 24 MHz
    J11: 14 MHz

  • RF Channel Scanning

    Auto-Scan

  • Max Operating Range

    300' (91.4m) (Line of Sight)

  • Max Transmitters per Band

    12

  • Dynamic Range

    100 dBA

BLX1 Transmitter

Jump to...
  • Transmitter Type

    Bodypack

  • RF Output Power

    10 mW

  • Audio I/O

    1x TA4/Mini XLR 4-Pin Male Input (Lockable)

  • Muting

    Off/On Switch

  • Auto-Level Control

    No

  • Gain Range

    -16 to +10 dB

  • Sync Method

    Manual

  • Antenna

    1x Flexible Whip, Fixed (Beltpack)

  • Power Requirements

    Battery

  • Battery

    2x AA (Included)

  • Approx. Battery Life

    14 Hours (Alkaline)

  • Display & Indicators

    1x Multi-Segment LED (Channel, Group)
    1x LED (Battery Status, Power)

  • Housing

    ABS

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

  • Dimensions

    2.5 x 4.3 x 0.8" (64 x 110 x 21mm)

  • Weight

    Without Batteries: 2.6 oz (75g)

BLX4R Receiver

Jump to...
  • Receiver Type

    Rackmount

  • Mounting Options

    Rackmount (with Included Hardware)

  • Rackmount Size

    1 RU (1/2 Rack)

  • Antenna

    2x 1/4 Wave External, Detachable (Rear-Mount)

  • Number of Audio Channels

    1

  • Audio I/O

    1x XLR 3-Pin Male Balanced Output
    1x 1/4" TS Female Unbalanced Output

  • Audio Output Level

    XLR Output: -20.5 dBV (Mic Level)
    1/4" Output: -13 dBV (Instrument Level)

  • Frequency Response

    50 Hz to 15 kHz (Dependent on Mic)

  • Impedance

    XLR Output: 200 Ohms
    1/4" Output: 50 Ohms

  • Adjacent Channel Isolation

    >50 dB

  • Power Requirements

    AC/DC Power Adapter

  • AC/DC Power Adapter

    12 to 15 VDC at 260 mA, Center-Positive (Included)

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz at 150 mA

  • Display & Indicators

    1x Backlit LCD (AF Level, Channel, Group, Metering, RF Level)
    1x LED (Transmitter Battery Status)

  • Housing

    Steel

  • Dimensions

    Without Mounting Hardware, Antennas: 7.8 x 2 x 6.4" (198 x 50 x 163mm)

  • Weight

    35.2 oz (998g)

WL185 Microphone

Jump to...
  • Microphone Type

    Lavalier

  • Sound Field

    Mono

  • Capsule

    Electret Condenser

  • Polar Pattern

    Cardioid

  • Frequency Range

    50 Hz to 17 kHz

  • Equivalent Noise Level

    28 dB

  • Maximum SPL

    130.5 dB SPL

  • Dynamic Range

    102.5 dB

  • Output Connector

    1x TA4/Mini XLR 4-Pin Female (Lockable)

  • Cable Length

    3.94' (1.2m)

  • Operating Voltage

    5V

  • UPC Code

    042406470568

About Shure BLX14R/W85

The WL185 premium cardioid lavalier microphone brings a new level of sophistication to personal voice reproduction. Like all Microflex family microphones, this lavalier uses an interchangeable condenser cartridge, meaning there will always be a lavalier to suit your application. With rack-mountable analogue wireless transmission.


- BLX1 Bodypack Transmitter -
Analog wireless bodypack BLX1 for use as part of BLX and BLX-R Analog Wireless Systems.

The durable BLX1 features a lightweight, ergonomic design and adjustable gain control. For use with BLX Wireless Systems.


- BLX4R Wireless Rackmount Receiver -
Rackmount analog wireless receiver provides improved linearity and frequency response with group and channel scan for easy set-up. Features include frequency QuickScan, adjustable output levels, and two-color audio status indicator LED.

Rackmount able and featuring rugged metal construction, the BLX4R offers simple setup and intuitive controls. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference. Removable antennas allow for quick antenna distribution. For use with BLX Wireless Systems.

Rackmount kit included.


- WL185 Cardioid TQG Lavalier Microphone -
Wireless premium cardioid condenser lavalier mic for speech applications.

Recommended for general purpose sound reinforcement applications requiring good rejection of ambient noise, the WL185 is a cardioid lavalier microphone with a 130 degree pickup angle. It has a 1.2 meter (4 ft.) cable terminated with a miniature 4-pin mini connector. Included tie clip can be rotated in 90 degree intervals for placement flexibility. Use of windscreen highly recommended.

Feature CommShield Technology, which guards against interference from cellular RF devices and digital bodypack transmitter.

Shure BLX14R/W85 Features

  • BLX1 Bodypack Transmitter
  • Quick and easy receiver frequency matching
  • TQG connection for use with Shure lavalier, headset, earset and instrument microphones and guitar cables
  • Easily accessible On / Off switch
  • BLX4R Wireless Rack Mount Receiver
  • XLR and 1/4" output connectors
  • Microprocessor-controlled internal antenna diversity
  • Two-color audio status indicator LED - Green: Normal audio levels, Red: Excessive audio levels (overload / clipping)
  • Adjustable output level
  • LCD display with detailed RF and audio metering
  • WL185 Cardioid TQG Lavalier Microphone
  • Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
  • Interchangeable cartridges that provide an optimal choice for each application
  • Rotatable tie-clip that pivots in 90 degree increments for placement flexibility
  • Supplied snap-fit foam windscreen that controls breath noise and stays on securely
  • Supplied dual tie clip holds two microphones for dual making applications

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Achieve crystal-clear audio with this Shure wireless lavalier microphone system, perfect for presentations.
  • Enjoy freedom of movement with a reliable wireless range up to 300 feet for dynamic performances.
  • The BLX14R rackmount receiver offers easy setup and integration into your existing audio equipment.
  • Benefit from the WL185 cardioid lavalier mic, minimizing background noise for focused sound capture.
  • With up to 14 hours of battery life, this wireless microphone ensures you're always ready to record.
  • Ideal for lecturers, speakers, and performers, this system delivers professional-grade sound quality.

What's in the box:

  • BLX1 Bodypack Transmitter
  • BLX4R Wireless Rackmount Receiver
  • WL185 Cardioid TQG Lavalier Microphone
  • 2x AA Batteries
  • Tie Clip and Windscreen
  • Rack Mount Bracket (53A8611)
  • Long Rack Mount Bracket (53A8612)
  • Link Bracket (53B8443)
  • Hardware Set (90AZ8100)
  • 2x 1/4 Wave BNC Antennas (95A8699)
  • 2x Bulkhead BNC Adapter (95A8994)
  • 2x 22" BNC Cable (95K2035)
  • Power Supply
  • 95B2313 Vinyl Zippered Bag
  • User Manual
  • Shure 2 Year Limited Warranty
