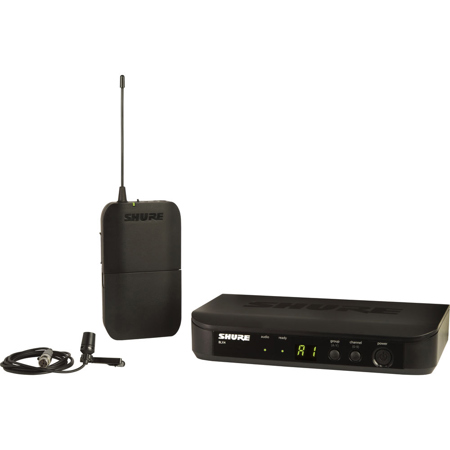

The Shure BLX14/CVL Wireless Presenter System operates within the H11 frequency range of 572-596 MHz.
The package includes the BLX4 wireless receiver, BLX1 bodypack transmitter, CVL lavalier microphone, power supply, lavalier clip, windscreens, and user guide.
The two-color audio status indicator LED provides visual feedback on the audio levels. Green indicates normal audio levels, while red signals excessive levels that may cause overload or clipping.
The CVL microphone is designed for low visibility and superior sound quality. It features a permanently charged electret condenser element for clear vocal reproduction, a unidirectional pickup pattern to reject unwanted noise, and a tailored frequency response optimized for spoken presentations.
The PS24US Power Supply is designed to provide power to the BLX4, BLX88, and BLX4R receivers. It adheres to energy-efficient standards and features built-in mounting tabs for easy installation.
Review Summary
Analog UHF
123
1x Bodypack
Yes
H10: 542 - 572MHz
H9: 512 - 542MHz
H11: 572 - 596MHz
J11: 596 - 616MHz
24 MHz
Auto-Scan
300' (91.4m) (Line of Sight)
12
No
No
No
100 dBA
No
Tabletop
Tabletop (with Included Hardware)
2x Fixed Internal
1
1x XLR 3-Pin Male Balanced Output
1x 1/4" TS Female Unbalanced Output
XLR Output:
-27 dBV (Mic Level)
1/4" Output:
-13 dBV (Instrument Level)
50 Hz to 15 kHz (Dependent on Mic)
No USB Connectivity
AC/DC Power Adapter
12 to 15 VDC at 160 mA, Center-Positive (Included)
12 to 15 VDC at 160mA
1x Multi-Segment LED (Channel, Group)
2x LED (AF Level, Sync)
ABS
7.4 x 1.6 x 4.1" / 188 x 40 x 103 mm
8.5 oz / 241 g
Bodypack
10 mW
1x TA4/Mini-XLR 4-Pin Male Unbalanced Input (Locking)
Off/On Switch
No
-16 to +10 dB
Manual
1x Fixed Flexible Whip (Beltpack)
Battery
2x AA (Included)
14 Hours (Alkaline)
1x Multi-Segment LED (Channel, Group)
1x LED (Battery Status, Power)
ABS
2.5 x 4.3 x 0.8" (64 x 110 x 21mm)
Without Batteries: 2.6 oz (75g)
Lavalier
Mono
Electret Condenser
Cardioid
50 Hz to 20 kHz
72 dB
139 dB SPL
117 dB
1x TA4F/Mini-XLR 4-Pin Female (Locking)
4.27' (1.3m)
5 V
0.88 oz (25g)
Required, included
Alkaline
AA
2
042406470414
- BLX4 Single-Channel Wireless Tabletop Receiver -
Analog wireless receiver provides improved linearity and frequency response with group and channel scan for easy set-up. Features include microprocessor internal antenna diversity, frequency QuickScan, and two-color audio status indicator LED.
The durable BLX4 features simple setup, intuitive controls, and microprocessor-controlled internal antenna diversity. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference. For use with BLX Wireless Systems.
- BLX1 Wireless Bodypack Transmitter -
Analog wireless bodypack BLX1 for use as part of BLX and BLX-R Analog Wireless Systems. The durable BLX1 features a lightweight, ergonomic design and adjustable gain control. For use with BLX Wireless Systems.
- CVL Centraverse Cardioid Lavalier Microphone -
Lavalier cardioid microphone provides superior source quality and vocal reproduction. It features construction for low visibility and a tailored frequency response for speaking and presentations.
What is the CVL Condenser Lavalier Microphone best suited to?
Precision-engineered for years of use in any Shure wireless systems, its compact size is ideal for presenting situations where visibility is a major concern. The unidirectional (cardioid) pickup pattern rejects unwanted sound for superior source quality and vocal reproduction.
The Centraverse Lavalier (CVL) offers convenience and performance in an easy-to-use clip-on cardioid condenser microphone that features simple, no-nonsense setup made for presenting professionals.
- PS24 Power Supply -
12V DC in-line power supply adheres to energy-efficient standards and features 2 built-in mounting tabs for easy installation.
