Shure BLX14R Rackable Bodypack Wireless System, Includes WA302 Instrument Cable, BLX1 Transmitter & BLX4R Receiver, J10: 584 - 608 MHz

SKU: SHBLX14RJ10

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Shure BLX14R Specifications

  • Frequencies

    J10: 584 - 608 MHz

  • WA302: Length

    2.5' (0.75m)

  • WA302: Plug

    1/4" (0.076cm)

  • WA302: Connector

    4 Pin Mini

  • BLX4R: Compatible Systems per Band

    Up to 12 (region dependent)

  • BLX4R: Output

    1x XLR Output
    1x 1/4" (6.35 mm) Output

  • BLX4R: Output Impedance

    XLR: 200 ohm
    1/4": 50 ohm

  • BLX4R: Audio Output Level

    XLR Connector: -20.5 dBV into 100kohm Load (Reference +/-33 kHz with 1 kHz Tone)
    1/4": -13 dBV into 100kohm Load (Reference +/-33 kHz with 1 kHz Tone)

  • BLX4R: RF Sensitivity

    -105 dBm for 12 dB SINAD, Typical

  • BLX4R: Image Rejection

    >50 dB, Typical

  • BLX4R: Housing

    Molded ABS, Steel

  • BLX4R: Power Requirement

    12 to 15 V DC at 260 mA, Supplied by External Power Supply (Tip Positive)

  • BLX1: Audio Input Level

    Gain:
    Max: -16 dBV maximum
    Min (0 dB): +10 dBV maximum

  • BLX1: Gain Adjustment Range

    26 dB

  • BLX1: Input Impedance

    1 Mohm

  • BLX1: RF Transmitter Output

    10 mW, typical

  • BLX1: Housing

    Molded ABS

  • BLX1: Power Requirements

    2 LR6 AA batteries, 1.5 V, alkaline

  • BLX1: Battery Life

    up to 14 hours (alkaline)

  • Dimensions (HxWxD)

    BLX4R: 50x198x163mm / 1.96x7.79x6.4"

  • Weight

    BLX4R: 2.2lbs (0.99kg) without Antennas

  • UPC Code

    042406252843

About Shure BLX14R

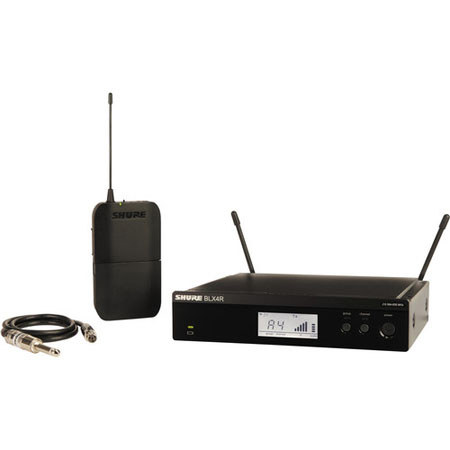

The Shure BLX14R Rackable Bodypack Wireless System (J10: 584 - 608 MHz) includes a BLX1 bodypack transmitter, a BLX4R single-channel rackmountable receiver and a WA302 1/4" TS to TA4F connector. It is designed for use with guitar, bass, or any instrument with a 1/4" output.

The BLX4R receiver has a front-panel dual-color LED status indicator that glows green for normal levels and red when clipping for fast metering. It has both an XLR and 1/4" instrument output for connecting your instrument to a variety of equipment, from amplifiers to mixing boards. The one-touch Quick-Scan feature automatically tunes the receiver to the clearest channel available and displays it on the front-panel LCD screen to allow you to tune the transmitter. The unit can be rackmounted with the included rackmount kit. The BLX1 is powered by two included AA batteries for up to 14 hours. The system has a 300' line of sight range of operation.

Shure BLX14R Features

  • WA302: Instrument cable connects the T1, UT1, SC1, PG1, PGX1, GRXD1, SLX1, LX1, ULX1, UC1, UR1, UR1M and U1 body-pack transmitter to a guitar or other instrument
  • BLX1: Quick and easy receiver frequency matching
  • BLX1: TQG connection for use with Shure lavalier, headset, earset and instrument microphones and guitar cables
  • BLX1: Easily accessible On / Off switch
  • BLX4R: XLR and ½" output connectors
  • BLX4R: Microprocessor-controlled internal antenna diversity
  • BLX4R: Two-color audio status indicator LED: Green: Normal audio levels / Red: Excessive audio levels (overload / clipping)
  • BLX4R: Adjustable output level
  • BLX4R: LCD display with detailed RF and audio metering

Key Features

  • BLX1: Quick & easy receiver frequency matching
  • BLX1: TQG connection for use with Shure lavalier, headset, earset & instrument microphones & guitar cables
  • BLX1: Easily accessible On / Off switch
  • BLX4R: XLR & " output connectors
  • BLX4R: Microprocessor-controlled internal antenna diversity
  • BLX4R: Adjustable output level

What's in the box:

  • Shure WA302 Instrument Cable
  • BLX1 Transmitter
  • BLX4R Receiver
  • Shure Warranty
