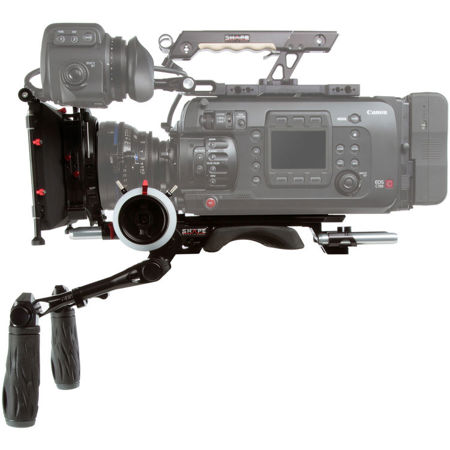

Shape REVOLT VCT Universal Baseplate with Follow Focus & Matte Box Pro Kit

REVOLT VCT Universal Baseplate

Front to Back Sliding Plate
Providing you with quick positioning of your camera accessories for an optimal adjustment of your camera's center of gravity and weight distribution.

• Made of robust CNC Machined Aluminum
• Front to Back Sliding Plate for quick positioning of your camera accessories
• Adjust the height of your rod bloc to match your camera's optical center
• Front and rear rod bloc allowing you to install more camera accessories
• Safety Pins and Ratchet knobs to fix the camera in place
• Soft & Ergonomic Shoulder Mount with gel padding and slip-free material
• Sophisticated tool box allowing extra screws to be stored and magnet-attach your Allen Key

Match your camera's optical center
Focal length is probably the most important factor when distinguishing one lens from another. Being able to adjust the height of your rod bloc to match your camera's optical center is exactly what you can do with the REVOLT Universal Baseplate.

Front and rear rod bloc
Two 15mm lightweight rod blocs can be fixed to the front and rear of the Baseplate, allowing you to install more camera accessories.

Safety Pins and Ratchet knobs
The REVOLT VCT Universal Baseplate is built from robust components to prevent the plate from sliding, to secure the rods and to increase the strength of your rig. The safety ratchet knobs are built in a way to apply an optimal pressure to the rods. The safety pins are located in strategic areas to maximize stabilization. Robust and easy to use, the safety pins prevent the upper plate from sliding.

Soft & Ergonomic Shoulder Mount
The shoulder Mount Support for the REVOLT produces maximum comfort and stability; thanks to its gel padding, its softness and ergonomic Shape, its thickness and slip-free material.

Sophisticated tool box
Quick access to your extra screws and Allen Key can be a time saver, even more so, when you are in the middle of a shoot. The REVOLT is equipped with 1/4-20 & 3/8-16 threaded holes allowing extra screws to be stored. There is also a magnet at the back to attach your Allen Key.

Compatible with the following cameras
ARRI (Amira and Alexa Mini), Sony (FS7, FS7M2, F5, F55, EX1, EX3), Canon (C300, C300M2, C700), RED SERIES, Panasonic (Panasonic Cinema Varicam Lt 4k S35, Panasonic Ag-af100, Panasonic Ag-af101 Varicam Lt, Panasonic P2), Blackmagic (Ursa Mini) and many other camera models with Interchangeable Lenses.

Telescopic Handles with Rubber Handgrips
The black Telescopic Handles are left and right rubber handgrips that can be attached to cameras and camera support rig that has standard ARRI rosettes. Each arm features (4) four points of articulation: (2) Push-button system to optimize your rig support and manipulation and (2) Ratchet Knobs System allowing 360deg. rotating positions and 1.5" extension length to adjust the arms for your comfort.

• Solid CNC aluminum Telescopic Handles with quick release rubber handgrips, compatible with ARRI Rosettes
• (4) Ratchet Knobs allowing 360deg. rotating positions and 1.5" extension length
• (4) Patented Quick Handle Push-button system to optimize your rig support and manipulation
• Stainless steel locking mechanism for durability

Push-Button System facilitate manipulation
Each handle features two Push-button System. Shape is well known for its Push-button handle, now used by so many professionals in the industry. We developed this patented technology to give users quick and easy adjustment. By simply pressing the red button, you are allowed a 360 degree rotation to place the handle in the best position for your use.

Ratchet Knobs adjustments
Each handle features two points of adjustment allowing 360deg. rotating positions for an optimal user comfort.

Compatible with ARRI Rosettes Standard
The Camera Handle is compatible with any camera rig with standard ARRI rosettes. The arms attach to your camera or support via an ARRI compatible rosette with spring-loaded locking levers, which allow you to lock your arms in place.

Follow Focus Pro with a Trusted Engineering

Pull focus on any type of project
Our Follow Focus Pro is perfect for use with film and cine-style lenses. It's an industry workhorse and has already proven itself on countless tough shoots all over the world.

Snap-on unit adaptor for 15mm rods
The Follow Focus Pro is designed with a 'Snap-on unit adaptor for 15mm rods' to meet your particular camera rig requirements and adjustments.

Reliable build quality. Your pictures will stay sharp
Manufactured in sleek black anodized aluminum, it is made from robust CNC Machined Aluminum. Shape engineering is internationally renowned and our Follow Focus Pro is one of the most robust motion picture accessories ever built. The Gear Arm is reversible and two gear wheels are supplied to accommodate a wide range of lens barrel sizes 0.8mm pitch (28 and 43 teeth aluminum gear). There is also a choice of two different focusing methods (Standard or Hard Stop) for an accurate adjustment on set.

Matte Box 4x5.6
The Shape Matte Box 4x5.6 is a 2-Stage Matte Box designed for light control and adjustment of filters. It is compatible with various photo lenses with at least 52mm diameter, but can also fit professional video optics with up to 114mm front diameter. The mounting of the Matte Box is done via a '15mm Clip-on rods system bracket'. There is also 360 Degrees of rotation offered by the filter holders.

• 2-Stage bracket for 4 x 5.6 rotary filters
• 1 French Flag and 2 Side Wings for Maximum control of the light incident
• 2 standard adaptor rings of 85mm and 114mm
• 1 Screwable adaptor ring of 80mm
• 6 step-down rings (52, 58, 62, 67, 72, 77mm) to accommodate lenses of varying sizes
• 15mm Clip-on rods system bracket to mount or unmount the Matte Box

8" 15mm Rods
• Standard 15 mm rods for camera supports
• Lightweight aluminum

4" 15mm Rods
• Standard 15 mm rods for camera supports
• Lightweight aluminum
