Shape D-Box Power and Charger for EVA1, Sony FS7, FS7M2, FS5 and FS5M2 Camera
See all Shape items

Shape D-Box Power and Charger with V-Mount Battery Plate for Panasonic EVA1, Sony FS7, FS7M2, FS5 and FS5M2 Camera

SKU: SHBXFS5
(1)

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What cameras is the D-Box Power and Charger compatible with?

The D-Box Power and Charger is compatible with Panasonic EVA1, Sony FS7, FS7M2, FS5, and FS5M2 cameras.

Can I charge a battery and use the power distribution at the same time?

Yes, the D-Box Power and Charger includes a BP Charger input that allows for simultaneous charging and use.

What type of mounting system does the D-Box Power and Charger use?

The D-Box Power and Charger uses a 15mm Rod Mount System for secure and adjustable positioning.

Does the D-Box Power and Charger have a USB output?

Yes, the D-Box Power and Charger features a USB output of 5V:4A, allowing for the charging of USB devices.

What voltage outputs does the D-Box Power and Charger support?

The D-Box Power and Charger supports multiple output options, including 5V:4A, 8V:5A, 12V:5A, and a D-TAP output of 16.8V:6A.

Reviews about this item

Review Summary

2019-10-18T07:34:20

Rated 3 out of 5

Well built but poorly designed

The battery unit is well made and mostly metal. The 15mm roda adaptor is light weight and functional. I have a few gripes though. There is only one Anton Bauer D-Tap connector. The main power ports are on the same side as the Black Magic connectors so its necessary to pull the plate back a bit to make it work well with the camera. My main disappointment is with the particular camera cable. First off its too short to use at all. To use the cable you would have to mount the plate on the back of the camera and if you were to mount the plate on the back of the camera you would not have access to the power ports because the cameras BNC connectors would be in the way. Also the cable is a very non professional in appearance 8 leads and two connectors-this is really designed to be hidden and the connectors are certainly not the type to handle the everyday stresses from work-as a matter of fact the connector arrived with a broken solder so the cable was non functioning out of the box. If it had more D-taps you could power the camera from the side D-Tap which you can do, it just eats up your one and only D-tap. so you have to use a D Tap splitter to make this work. I am a bit disappointed, but will [probably hang onto the unit because the camera does need a battery plate solution.

DOMINIC D.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shape D-Box Power and Charger Specifications

  • Compatibility

    Panasonic EVA1, Sony FS7, FS72, FS5, FS5M2 Camera

  • Materials

    Shock Resistant, PPS Aircraft-Grade Materials

  • D-Box Connectors

    1x Cable compatible with Panasonic EVA1, Sony FS7, FS72, FS5, FS5M2 Camera
    1x Output Cable compatible with 5V, 8V or 12V Outputs
    1x Output 5V:4A
    1x Output 8V:5A
    1x Output 12V:5A
    1x D-TAP Output 16.8V:6A
    1x USB Output 5V:4A

  • Battery Plate

    V-Mount Battery Plate with Safe Lock

  • Power Supply

    Input: 110-240V:2A 50/60Hz
    Output: 16.8V:6A

  • Dimensions (WxHxL)

    5.51 x 3.54 x 0.79" (14.00 x 8.99 x 2.01cm)

  • Weight

    2.31 lbs (1.05kg)
    Battery Plate: 0.8 lbs (0.36kg)

  • UPC Code

    629266008577

About Shape D-Box Power and Charger

When you need a reliable power solution for your professional camera equipment, consider the D-Box Power and Charger with V-Mount Battery Plate. This versatile device combines continuous AC power and efficient power distribution in a single compact unit, making it an essential tool for photographers and videographers using Panasonic EVA1, Sony FS7, FS7M2, FS5, and FS5M2 cameras.

The D-Box Power and Charger features a variety of connectors to meet your power needs. It includes a cable compatible with the aforementioned camera models, ensuring a secure and efficient power connection. Additionally, it offers an output cable compatible with 5V, 8V, or 12V outputs, providing flexibility for different equipment requirements.

This power and charger unit also boasts multiple output options, including 5V:4A, 8V:5A, and 12V:5A outputs. It also features a D-TAP output of 16.8V:6A and a USB output of 5V:4A, allowing you to power a wide range of devices.

The D-Box Power and Charger is not just a power distributor, but also a charging device. It comes with a power supply with an input of 110-240V:2A 50/60Hz and an output of 16.8V:6A. It also includes a BP Charger input that allows you to use and charge your battery simultaneously, as well as an AC Adapter input for use without a battery.

To ensure secure mounting, the D-Box Power and Charger comes with a 15mm Rod Mount System device. A delta plate is included for mounting on the D-Box main unit, and a knob system allows you to lock and adjust the position of the unit with ease.

In summary, the D-Box Power and Charger with V-Mount Battery Plate is a comprehensive power solution for professional photographers and videographers, offering continuous power, efficient distribution, and versatile charging options for a range of camera models.

Shape D-Box Power and Charger Features

  • Compatible with Panasonic EVA1, Sony FS7, FS72, FS5, FS5M2
  • V-Mount Battery Plate with Safe Lock
  • Small size and lightweight battery plate (0.8 lbs 0.36 kg)
  • When the D-Box is plugged in, safely disconnect and reconnect the battery without powering down your rig
  • 5 outputs: (1) 5V:4A:20W, (1) 8V:5A:40W, (1) 12V:5A:60W, (1) 16.8V:6A:100W, (1)USB 5V:4A
  • Supports up to 100W power consumption from the device
  • Comes with a robust 15mm Rod Mount with locking and angle adjustment system
  • Threaded holes at the back of the plate for mounting on a cheeseplate
  • LED indicators for power features
  • D-Box:

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Power your Sony FS7/FS5 cameras effortlessly with this V-Mount battery plate.
  • Enjoy reliable power with the Shape D-Box, crafted from durable, shock-resistant materials.
  • Versatile power supply: Includes multiple outputs (5V, 8V, 12V) for diverse equipment needs.
  • Use the D-Tap output for 16.8V accessories, expanding your camera's power capabilities.
  • Travel-ready power solution: The 110-240V input makes it perfect for global video shoots.
  • Mount easily with the 15mm rod mount, integrating seamlessly into your camera rig setup.

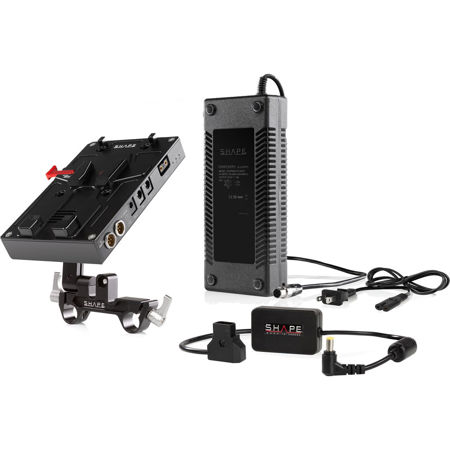

What's in the box:

  • Shape D-Box Power and Charger with V-Mount Battery Plate
  • Power Supply
  • Cable Output Connector (5V/8V/12V)
  • Cable Connector (EVA1/FS7/FS7M2/FS5/FS5M2)
  • 15mm Rod Mount Device
  • Removable Delta Plate
  • Shape 2 Year Limited Warranty
