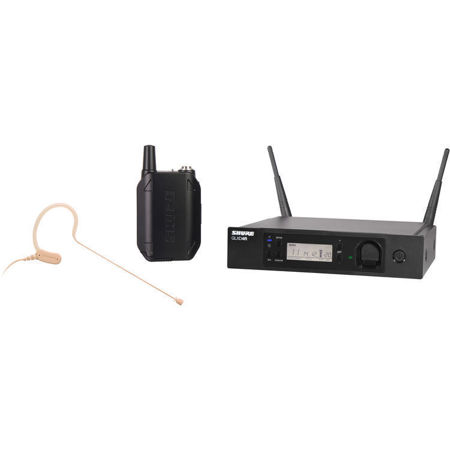

Shure GLXD14R/MX53 Wireless System (Z2 Band: 2400 - 2483.5 MHz), Includes GLXD1 Bodypack Transmitter, GLXD4R Wireless Receiver, MX153 Earset Headworn Microphone

SKU: SHD14RMX53Z2

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Shure GLXD14R/MX53 Specifications

GLXD1 Transmitter

GLXD1 Transmitter

Jump to...
  • Connector

    1x Unbalanced 4-pin TA4M male mini-connector

  • Tuning Frequency Range

    2400 to 2483.5 MHz

  • Range of Operation

    200' (60.96m) (typical, depends on RF signal absorption, reflection, and interference)

  • Transmit Mode

    Frequency Hopping

  • Frequency Response

    20 Hz to 20 kHz

  • Dynamic Range

    120 dB, A-weighted

  • RF Sensitivity

    -88 dBm, typical

  • Total Harmonic Distortion

    0.2%, typical

  • RF Output

    10 mW E.I.R.P, maximum

  • Operating Temperature Range

    0 to 135 deg. F (-18 to 57 deg. C)

  • Storage Temperature Range

    -20 to 165 deg. F (-29 to 74 deg. C)

  • Polarity

    Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output

  • Battery Life

    Up to 16 hours

  • Power Requirements

    3.7 V Rechargeable Li-Ion

  • Input Impedance

    900 kOhms

  • Maximum Input Level

    1 kHz at 1% THD
    8.4 dBV (7.5 Vp-p)

  • Antenna

    Internal Monopole

  • Pin Configuration

    1: ground (cable shield)
    2: +5 V bias
    3: Audio
    4: Tied through active load to ground (On instrument adapter cable, pin 4 floats)

  • Housing

    Cast Metal

GLXD4R Receiver

Jump to...
  • Configuration

    XLR Output: Balanced
    1/4" / 6.35 mm Output: Impedance balanced

  • Impedance

    XLR Output: 100 Ohms
    1/4" / 6.35 mm Output: 100 Ohms (50 Ohms, unbalanced)

  • Full Scale Output

    XLR Connector:
    Line Setting: +18 dBV
    Mic Setting: -12 dBV
    1/4" / 6.35 mm Output: +12 dBV

  • Pin Assignments

    XLR Output: 1=ground, 2=hot, 3=cold
    1/4" / 6.35 mm Connector: Tip=audio, Ring=no audio, Sleeve=ground

  • Mic/Line Switch

    30 dB pad

  • Spurious Rejection

    >35 dB, typical

  • Gain Range

    -18 to 42 dB in 1 dB steps

  • Phantom Power Protection

    Yes

Receiver Antenna Input

Jump to...
  • Impedance

    50 Ohms

  • Antenna Type

    1/2 Wave Sleeve Dipole

  • Maximum Input Level

    -20 dBm

MX153 Microphone

Jump to...
  • Transducer

    Electret Condenser

  • Polar Pattern

    Omnidirectional

  • Frequency Response

    20Hz to 20kHz

  • Sensitivity

    Open circuit voltage, at 1kHz, typical: -41dBV/Pa (9 mV/Pa)

  • Maximum Input Sound Level

    1kHz at 1% THD:
    2500 Ohms load: 107 dB SPL
    1000 Ohms load: 107 dB SPL

  • Signal-to-Noise Ratio

    60dB

  • Dynamic Range (Typical)

    At 1kHz
    2500 Ohms load: 73 dB
    1000 Ohms load: 73 dB

  • Self Noise

    Equivalent SPL, A-weighted, typical: 34dB

  • Common Mode Rejection

    20Hz to 20kHz

  • Operating Temperature

    0 to 135 deg. F (-18 to 57 deg. C)

  • Polarity

    Positive pressure on diaphragm produces negative voltage on pin 3 with respect to pin 1.

  • Power Requirements

    +1 - 5VDC (500 MuA max.)

General

Jump to...
  • Housing

    Steel

  • Power

    Power Requirements: 14 to 18 VDC (Tip positive with respect to ring), 550 mA

  • Dimensions

    Overall: 1.7 x 7.8 x 6.4" (43.18 x 198.12 x 162.56mm)
    GLXD1 Transmitter (HxWxD): 3.56 x 2.54 x 0.90" (9.04 x 6.45 x 2.29cm) (without antenna)
    MX153 Microphone Cable Length: 48" (121.92cm)

  • Weight

    Overall: 32.0 oz (907.18g)
    MX153 Microphone: 0.69 oz (19.56g)

  • UPC Code

    042406496117

About Shure GLXD14R/MX53

Headworn Wireless System
Features premium MX153 microphone and GLXD4R rack mount receiver. The GLXD14R/MX53 Headworn Wireless System is part of the GLX-D Advanced wireless systems family. GLXD14R/MX53 provides intelligent rechargeability, robust RF performance, automatic frequency management and increased channel count with exceptional digital audio clarity and seamless operation. The premium MX153 headworn earset microphone offers discreet wear and exceptional clarity for presentations and other spoken word applications. For use with GLX-D Advanced Frequency Managers (UA846Z2).

Includes GLXD4R rack mount receiver, GLXD1 bodypack transmitter, MX153T omnidirectional condenser microphone (tan) with windscreens, collar clip and protective pouch; SB902 rechargeable lithium-ion battery, USB charge cable, 2 detachable antennas, rack mount hardware and user guide.

GLXD1 Bodypack Transmitter
Provides up to 16 hours of continuous use with Shure lithium-ion rechargeable batteries. GLXD1 features an ergonomic design and reversible belt clip to fit comfortably and snugly in various positions. For use with GLX-D Digital Wireless Systems and GLX-D Advanced Digital Wireless Systems with firmware update 2.2.5 or later. GLXD1 offers up to 16 hours of continuous use with Shure lithium-ion rechargeable batteries.

• Automatically links with GLXD4 and GLXD4R wireless receivers for seamless frequency changing
• Sophisticated design with rugged metal construction
• Easily accessible on / off switch
• Locking TQG connection for use with Shure lavalier, headset, earset and instrument microphones and guitar cables

GLXD4R Wireless Receiver
Rack mountable receiver with removable antennas for exceptional audio and rock-solid performance in multi-system installations for house of worship, education and live music applications. Use GLX-D Advanced rack mount wireless systems for improved RF performance and seamless frequency management. With detachable antennas and rack hardware included, GLXD4R receivers quickly integrate GLX-D Frequency Managers and remote antenna accessories for rock-solid multi-system installations.

• Rock-solid RF Performance from patented data communication
• Integrated battery charge port for proprietary Shure lithium-ion transmitter batteries with two-color charge indicator LED: Green: Charged, Flashing Green: 90% charged, Red: Charging
• Detachable antennas for remote mounting
• Remote adjustable transmitter gain control
• Hi-res LCD screen status display
• Real-time battery run-time displayed in hours and minutes (accurate within +/- 15 minutes)
• XLR and 1/4" output connectors
• Rugged metal chassis design
• Includes rack mount hardware

MX153 Earset Headworn Microphone
Outstanding clarity in an extremely comfortable over-the-ear design. The Shure Microflex MX153 provides outstanding clarity in an extremely comfortable over-the-ear design. This professional subminiature earset microphone is ideal for applications in which improved gain before feedback over lavalier microphones is desired. Delivering exceptional speech clarity, the MX153 is ideal for corporate presentations, houses of worship, A / V conferencing and live sound reinforcement.

• Subminiature omnidirectional cartridge offers superior clarity and enhanced plosive protection with no proximity effect
• Terminated with TQG / TA4F connector for direct connectivity to Shure wireless bodypack transmitters
• Ultra-lightweight, comfortable, flexible design is stable and easy to place over either ear
• CommShield Technology guards against interference from cellular RF devices and digital bodypack transmitters
• Kevlar reinforced soft flex cable
• Includes protective storage pouch, 3 windscreens and collar clip

What's in the box:

  • Shure GLXD1 Bodypack Transmitter
  • SB902 Rechargeable Lithium-Ion Battery
  • Padded Zipper Case
  • USB Charger Cable
  • GLXD4R Digital Wireless Multi-System Receiver
  • 2x Antennas with Mounting Cables
  • Rackmount Hardware
  • Power Supply
  • MX153 Earset Headworn Microphone (Tan)
  • 3x Windscreens
  • Collar Clip
  • Protective Storage Pouch
  • User Guide
  • Shure 2 Year Limited Warranty
