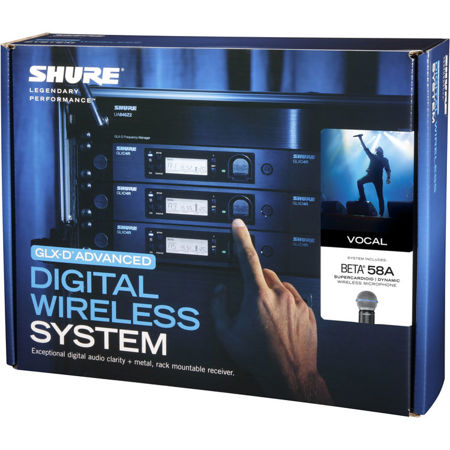

Shure GLXD24R/B58 Wireless System (Z2 Band: 2400 - 2483.5 MHz), Includes GLXD2 Handheld Transmitter, GLXD4R Receiver

SKU: SHD24RB58Z2

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2022-02-22T10:49:41

Rated 4 out of 5

Great microphone and quality warm sound just as described

Very prompt service from Adorama especially when the product was out of stock. The product itself was well packaged. The microphone has a warm sound to it, but does not carry or Echo the sounds unlike the beta 87A microphone. It?s more short, but that?s what is expected. Each microphone offers a different sound. For karaoke the 87A microphone may be a better choice for novice singers than this one. The rechargeable battery is a definite plus. Overall, satisfied with the product even though we did not know what to expect.

LYN N.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Shure GLXD24R/B58 Specifications

GLXD2 Transmitter

GLXD2 Transmitter

Jump to...
  • RF Power Output

    10 mW E.I.R.P, maximum

  • Maximum Input Level

    147 dB SPL

  • Power Requirement

    3.7 V Rechargeable Li-Ion

  • Battery Life

    Up to 16 hours

  • Operating Range

    Indoors: Up to 100' (30 m) typical, with a maximum of 200' (60m)
    Outdoors: Up to 65' (20 m) typical, with a maximum of 165' (50 m)

  • Housing

    Molded plastic

Beta 58A Microphone

Jump to...
  • Type

    Dynamic (Moving Coil)

  • Frequency Response

    50 Hz to 16 kHz

  • Polar Pattern

    Supercardioid, rotationally symmetrical about microphone axis, uniform with frequency

  • Output Level

    Open Circuit Voltage: -51.5 dBV/Pa (2.6 mV) (1 Pa = 94 dB SPL)

GLXD4R Receiver

Jump to...
  • Configuration

    XLR Output: Balanced
    1/4" / 6.35 mm Output: Impedance balanced

  • Impedance

    XLR Output: 100 Ohms
    1/4" / 6.35 mm Output: 100 Ohms (50 Ohms, unbalanced)

  • Full Scale Output

    XLR Connector:
    Line Setting: +18 dBV
    Mic Setting: -12 dBV
    1/4" / 6.35 mm Output: +12 dBV

  • Pin Assignments

    XLR Output: 1=ground, 2=hot, 3=cold
    1/4" / 6.35 mm Connector: Tip=audio, Ring=no audio, Sleeve=ground

  • Mic/Line Switch

    30 dB pad

  • Spurious Rejection

    >35 dB, typical

  • Gain Range

    -18 to 42 dB in 1 dB steps

  • Phantom Power Protection

    Yes

Receiver Antenna Input

Jump to...
  • Impedance

    50 Ohms

  • Antenna Type

    1/2 Wave Sleeve Dipole

  • Maximum Input Level

    -20 dBm

General

Jump to...
  • Housing

    Steel

  • Power

    Power Requirements: 14 to 18 VDC (Tip positive with respect to ring), 550 mA

  • Dimensions

    Overall: 1.7 x 7.8 x 6.4" (43.18 x 198.12 x 162.56mm)
    Transmitter Body Length: 9.9" (251.46mm)
    Transmitter Body Width: 1.5" (38.10mm)
    Transmitter Capsule Width: 2" (50.80mm)

  • Weight

    Overall: 32.0 oz (907.18g)
    GLXD2 Transmitter: 7.8 oz (221.13g) (without batteries)

About Shure GLXD24R/B58

Handheld Wireless System
Features BETA58A handheld vocal microphone and GLXD4R rack mount receiver. The GLXD24R/B58 Handheld Wireless System is part of the GLX-D Advanced wireless systems family. GLXD24R/B58 provides intelligent battery rechargeability, robust RF performance, automatic frequency management and increased channel count with exceptional digital audio clarity and seamless operation. The precision-engineered BETA 58A vocal microphone capsule is optimized for lead vocal performance. For use with GLX-D Advanced Frequency Managers (UA846Z2).

Includes GLXD4R rack mount receiver, GLXD2/BETA58 handheld transmitter with integrated BETA 58A supercardioid dynamic microphone capsule, microphone clip, SB902 rechargeable lithium-ion battery, USB charge cable, 2 detachable antennas, rack mount hardware and user guide.

GLXD2/BETA58 Handheld Transmitter
Featuring an integrated BETA 58A cartridge, the GLXD2/BETA58 transmits wireless audio with digital clarity and rock-solid reliability. For use with GLX-D Digital Wireless Systems and GLX-D Advanced Digital Wireless Systems with firmware update 2.2.5 or later.

• Works with GLX-D Digital & GLX-D Advanced Digital Wireless Systems
• Offers up to 16 hours of continuous battery life with Shure lithium-ion rechargeable batteries
• Allows for custom handle design at designstudio.shure.com
• Includes GLXD2/BETA58, SB902 lithium-ion rechargeable battery, microphone clip, USB charge cable and user guide
• Integrated microphone capsule design
• Automatic linking capability with GLX-D wireless receivers for seamless frequency changing

GLXD4R Wireless Receiver
Rack mountable receiver with removable antennas for exceptional audio and rock-solid performance in multi-system installations for house of worship, education and live music applications. Use GLX-D Advanced rack mount wireless systems for improved RF performance and seamless frequency management. With detachable antennas and rack hardware included, GLXD4R receivers quickly integrate GLX-D Frequency Managers and remote antenna accessories for rock-solid multi-system installations.

• Rock-solid RF Performance from patented data communication
• Integrated battery charge port for proprietary Shure lithium-ion transmitter batteries with two-color charge indicator LED: Green: Charged, Flashing Green: 90% charged, Red: Charging
• Detachable antennas for remote mounting
• Remote adjustable transmitter gain control
• Hi-res LCD screen status display
• Real-time battery run-time displayed in hours and minutes (accurate within +/- 15 minutes)
• XLR and 1/4" output connectors
• Rugged metal chassis design
• Includes rack mount hardware

What's in the box:

  • Shure GLXD2 Handheld Transmitter with Beta 58A Microphone Element
  • SB902 Rechargeable Lithium-Ion Battery
  • Microphone Clip
  • Padded Zipper Case
  • USB Charging Cable
  • GLXD4R Digital Wireless Multi-System Receiver
  • 2x Antennas with Mounting Cables
  • Rackmount Hardware
  • Power Supply
  • User Guide
  • Shure 2 Year Limited Warranty
