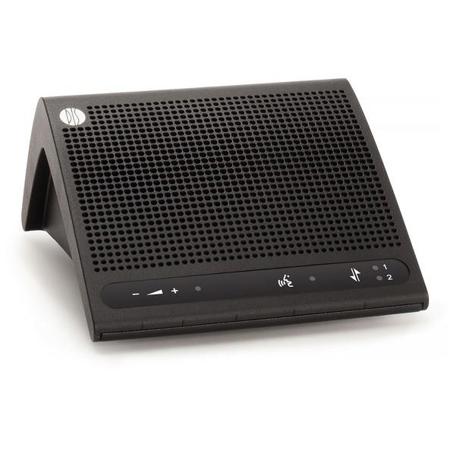

Shure Portable Conference Unit, Configured as Chairman, Delegate, or Interpreter

With its compact table top design and soft-touch buttons, the DC 5980 P enables for meeting participants to activate or mute their microphone. The high-quality loudspeaker makes it easy to hear everything, and a built-in headphone jack with volume control provides access to the two interpreter channels. The DC 5980 P can be configured as a Chairman, Delegate, or Interpreter unit. As default, the unit is configured as a delegate unit but the button overlay is changeable to match the desired functionality.

Reconfiguration is easily done in just a matter of seconds and the unit will keep its configuration even if it is used in another DDS 5900 system.

Depending on the configuration the left button changes functionality. Chairman configuration support 'Del. Off' that allows the chairman to switch off all active delegate microphones.

The delegate and interpreter configuration supports 'Mute' functionality that allows the user to temporarily mute his/her active microphone while the mute button is pressed down. The delegate configuration can also be changed to omit the 'Mute' functionality so the delegate only has a 'Speak' button.

The 'Speak' button enables the user to activate/deactivate the microphone. The floor channel is distributed through the built-in loudspeaker except when the microphone is active. By connecting a headphone the user can listen to the floor channel or one of the 2 interpretation channels. Headphone volume can be adjusted with the volume buttons.

Interpreters will always listen to the floor channel in the headphone and can select the outgoing channel for interpretation.

A gooseneck microphone (GM 59xx or GM 6xxx) can be inserted in the lockable XLR socket. The lock is accessible from a small hole beside the XLR socket with a 1.5 mm hex key. Turning the hex key counter clockwise locks the gooseneck microphone and turning the hex key clockwise unlocks the gooseneck microphone from the unit.

Applications

Hotel / Conference Center
Multi-Purpose / Training Room
Education
Corporate / Board Room
Courtroom
