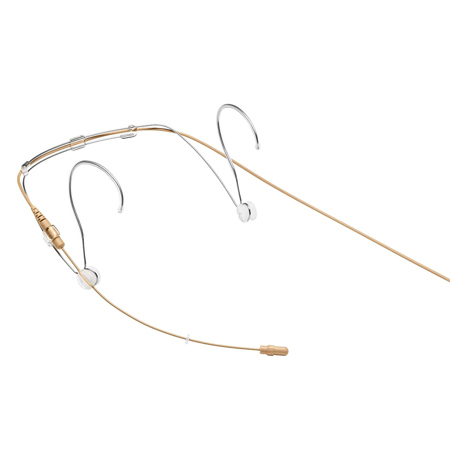

Shure DuraPlex DH5 Omnidirectional Headset Microphone Cocoa TA4F

SKU: SHDH5COMTQG MFR: DH5C/O-MTQG
Earn VIP Reward Points

Key Features

  • Experience exceptional vocal clarity with this Shure omnidirectional headset microphone.
  • Ensure consistent audio capture, ideal for presenters needing reliable voice pickup.
  • Enjoy a comfortable, lightweight design perfect for extended use during performances.
  • Capture pristine sound with a wide 20Hz-20kHz frequency response for natural audio.
  • Choose from multiple colors; black, cocoa, and tan, to subtly match skin tones.
  • Benefit from robust durability, designed to withstand rigorous daily use on set.
See More Product Details
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the sound quality of the DuraPlex DH5 Omnidirectional Headset Microphone?

The DuraPlex DH5 headset microphone is engineered to deliver a neutral, full sound. Its omnidirectional polar pattern captures sound from all directions, providing clear and natural audio regardless of the speaker's position.

What makes the DuraPlex DH5 headset microphone durable?

The DuraPlex DH5 features a long-lasting 1.6mm Shure Plex cable that is immune to memory effect and kinks. It also has an IP57 rating, certifying its resistance to water, sweat, moisture, dust, and dirt.

Can I paint the DuraPlex DH5 headset microphone?

Yes, the 1.6mm Shure Plex cable of the DuraPlex DH5 is fully paintable with typical theater paints, pens, and polishes. This allows for customization to match any setting or costume.

What devices is the DuraPlex DH5 headset microphone compatible with?

The DuraPlex DH5 uses a ta4f connector type, ensuring compatibility with a wide range of devices. This enhances its versatility for various applications.

Is the DuraPlex DH5 headset microphone comfortable to wear?

Yes, the DuraPlex DH5 is designed to be lightweight and comfortable, ensuring ease of use during long performances, presentations, or broadcasts.

Reviews about this item

Review Summary

Shure DuraPlex DH5 Specifications

  • Available Colors

    Black, Cocoa, Tan

  • Available Connectors

    LEMO3, TA4F (mTQG)

  • Microphone Capsule

    MEMS

  • Polar Pattern

    Omnidirectional

  • Frequency Response

    20Hz to 20kHz

  • Sensitivity

    -42.5 dBV (7.5 mVRMS) @ 1 kHz

  • Self-Noise

    31 dB SPL-A (A-weighted, Equivalent Acoustical)

  • Signal-to-Noise Ratio

    63.0 dB

  • Maximum SPL

    132.0 dB SPL (1 kHz @ 1% THD, typical)

  • Dynamic Range

    101.0 dB (Typical)

  • Microphone Current

    Draw 220 microA, maximum

  • Bias Voltage

    5 VDC (Recommended Operating Voltage)

  • Housing

    Molded ABS

  • Polarity

    MTQG: Positive Pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
    LEMO: Positive pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1

  • Cable Diameter

    0.06" (1.6mm)

  • Cable Length

    66.0" (167.6cm)

  • Boom Length

    5.4" (13.6cm)

  • Dimensions (L x D)

    Capsule: 0.6 x 0.2" (14.5 x 5.2mm)

  • Weight

    0.7 oz (20g)

  • UPC Code

    042406662505

About Shure DuraPlex DH5

Lightweight and comfortable to wear, the DuraPlex DH5 headset microphone offers a neutral, full sound that will lift your performance, speech, musical, or broadcast. Rely on the DH5 headset microphone in the harshest environments, thanks to its long-lasting Shure Plex cable and a certified IP57 rating, which means you're protected against water, sweat, moisture, dust, and dirt. Capture every moment with confidence.

With an easy-to-wear headset frame, DuraPlex DH5 features a neutral, full sound quality that lives up to the highest audio standards on any stage or broadcast studio. Also available as a lavalier, DuraPlex has been extensively tested to ensure an IP57 dust-resistant, waterproof rating. The exclusive 1.6 mm Shure Plex cable with DuraPlex won't kink, offers virtually zero "memory effect," is fully paintable, and simply lasts longer due to a dual redundant ground, which doubles as a secondary shield.

In the theater, onstage, or on television, you can depend on the DuraPlex DH5 headset microphone for consistent professional sound, durability, and longevity.

Advanced 1.6 mm Shure Plex cable:
• Dual redundant ground in cable serves as secondary shield for unprecedented longevity
• Immune to memory effect and kinks
• Fully paintable with typical theater paints, pens, and polishes

Shure DuraPlex DH5 Features

  • 5mm omnidirectional subminiature design for discrete placement and improved gain-before-feedback
  • IP57 dust-resistant, waterproof rated
  • Neutral, full sound quality for film, broadcast, speech, theater, and performance applications
  • Presence Cap included for tailored frequency response provides additional vocal clarity and presence (3-4 dB boost near 10 kHz)

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience exceptional vocal clarity with this Shure omnidirectional headset microphone.
  • Ensure consistent audio capture, ideal for presenters needing reliable voice pickup.
  • Enjoy a comfortable, lightweight design perfect for extended use during performances.
  • Capture pristine sound with a wide 20Hz-20kHz frequency response for natural audio.
  • Choose from multiple colors; black, cocoa, and tan, to subtly match skin tones.
  • Benefit from robust durability, designed to withstand rigorous daily use on set.

What's in the box:

  • Shure DuraPlex DH5 Omnidirectional Headset Microphone
  • Presence Cap
  • Foam Windscreen
  • Snap-Fit Windscreen
  • Single Tie Clip
  • Sticky Mount
  • TQG Locking Collar (Only with TA4F/mTQG Models)
  • Case
  • Shure 2 Year Limited Warranty
