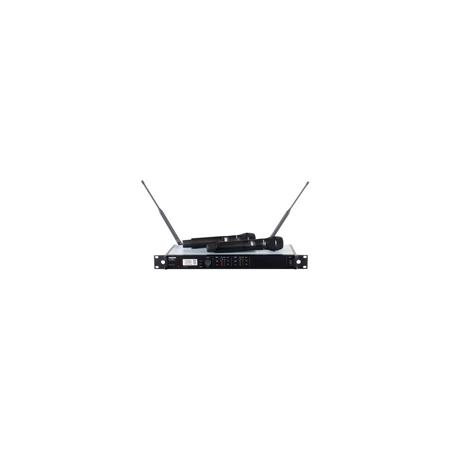

Shure ULXD24D/SM87 Dual Handheld Wireless System, G50 Band 470-534MHz
See all Shure items

Shure ULXD24D/SM87 Dual Handheld Wireless System, Includes 2 ULXD2 Transmitter, 2 SM87A Mics, ULXD4D Dual Wireless Receiver, G50 Band 470-534 MHz

SKU: SHDRWSG50SM
Be the first to review this item

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular
Shure BLX24R/B58 Single-Ch Wireless Rackmount System with BLX2/B58 Handheld Mic
$660.00
$539.00
undefined undefined: Picture 1 regular

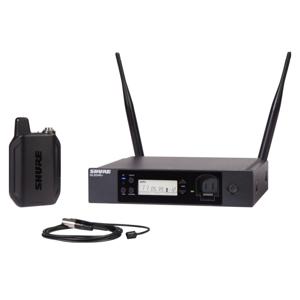

Shure GLXD14R+ Dual Band Digital Wireless Rack System w/WL93 Mic, Z3: 2.4/5.8GHz
$998.00
$799.00
undefined undefined: Picture 1 regular

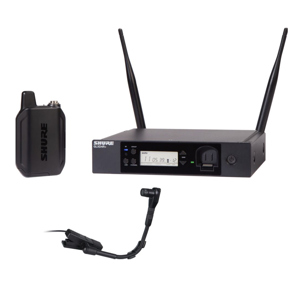

Shure GLXD14R+ Dual Band Digital Wireless Rack System, BETA98H/C, Z3: 2.4/5.8GHz
$1,123.00
$899.00
undefined undefined: Picture 1 regular

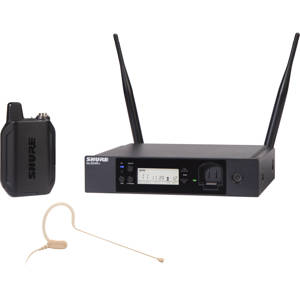

Shure GLXD14R+ Dual Band Digital Wireless Rack System w/MX153 Mic,Z3: 2.4/5.8GHz
$1,299.00
$1,039.00
undefined undefined: Picture 1 regular

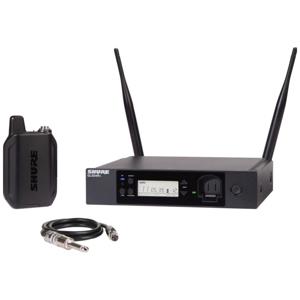

Shure GLXD14R+ Dual Band Digital Wireless Rack System,WA302 Cable,Z3: 2.4/5.8GHz
$899.00
$719.00
Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the frequency range of the Shure ULXD24D/SM87 Dual Handheld Wireless System?

The Shure ULXD24D/SM87 Dual Handheld Wireless System operates within the G50 Band frequency range of 470-534 MHz.

What components are included in the Shure ULXD24D/SM87 Dual Handheld Wireless System?

The system includes two ULXD2 transmitters, two SM87A microphones, a ULXD4D dual wireless receiver, and a G50 band.

What are the rechargeability options of the Shure ULXD24D/SM87 Dual Handheld Wireless System?

The Shure ULXD24D/SM87 Dual Handheld Wireless System features advanced rechargeability options that eliminate the need for disposable batteries and extend the product's usage time and life cycle.

Is the Shure ULXD24D/SM87 Dual Handheld Wireless System suitable for professional use?

Yes, the Shure ULXD24D/SM87 Dual Handheld Wireless System is ideal for professional applications such as live performances, theater productions, and broadcast events.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shure ULXD24D/SM87 Specifications

  • RF Carrier Range

    G50 Band 470-534 MHz

  • Working Range

    100 m (330 ft)

  • RF Tuning Step Size

    25 kHz

  • Image Rejection

    >70 dB, typical

  • RF Sensitivity

    -98 dBm at 10-5 BER

  • Latency

    <2.9 ms

  • Audio Frequency Response

    ULXD1: 20 - 20 kHz (+/-1 dB)

  • Audio Dynamic Range

    >120 dB, A-weighted, typical

  • Total Harmonic Distortion

    <0.1%

  • System Audio Polarity

    Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output

  • ULXD4: Housing

    Steel

  • ULXD4: Power Requirements

    15 V DC at 0.6 A, supplied by external power supply (tip positive)

  • ULXD4: Spurious Rejection

    >80 dB, typical

  • ULXD4: Connector Type

    BNC

  • ULXD4: RF I/P: Impedance

    50 Ohms

  • ULXD4: Bias Voltage

    12 - 13 V DC, 170 mA maximum, per antenna

  • ULXD4: Gain Adjustment Range

    -18 to +42 dB in 1 dB steps (plus Mute setting)

  • ULXD4: Configuration

    1/4" (6.35 mm): Impedance balanced (Tip=audio, Ring=no audio, Sleeve=ground)
    XLR: balanced (1=ground, 2=audio +, 3=audio −)

  • ULXD4: Audio I/P: Impedance

    1/4" (6.35 mm): 100 Ohms (50 Ohms Unbalanced)
    XLR: 100 Ohms

  • ULXD4: Full Scale Output

    1/4" (6.35 mm): +12 dBV
    XLR: LINE setting= +18 dBV, MIC setting= -12 dBV

  • ULXD4: Mic/Line Switch

    30 dB pad

  • ULXD4: Phantom Power Protection

    1/4" (6.35 mm): Yes
    XLR: Yes

  • ULXD4: Power Over Ethernet

    No, protected

  • ULXD4: Network Interface

    Single Port Ethernet 10/100 Mbps

  • ULXD4: Network Addressing Capability

    DHCP or Manual IP address

  • ULXD4: Maximum Cable Length

    100 m (328 ft)

  • ULXD2: Gain Offset Range

    0 to 21 dB (in 3 dB steps)

  • ULXD2: Battery Type

    Shure SB900 Rechargeable Li-Ion or LR6 AA batteries 1.5 V

  • ULXD2: Battery Runtime at 10 mW

    Shure SB900: >12 hours
    alkaline: 11 hours

  • ULXD2: Housing

    Machined aluminum

  • ULXD2: Configuration

    Unbalanced

  • ULXD2: Maximum Input Level

    145 dB SPL (SM58), typical

  • ULXD2: Antenna Type

    Integrated Single Band Helical

  • ULXD2: Occupied Bandwidth

    <200 kHz

  • ULXD2: Modulation Type

    Shure proprietary digital

  • ULXD2: Power

    1 mW, 10 mW, 20 mW

  • Operating Temperature Range

    -18deg.C (0deg.F) to 50deg.C (122deg.F)

  • Storage Temperature Range

    -29deg.C (-20deg.F) to 74deg.C (165deg.F)

  • Dimensions

    ULXD2: 256x51mm (10.1x2")
    ULXD1: 86x66x23mm /3.38x2.59x0.90"
    ULXD4: 197x171x42mm / 7.8x6.7x1.65"

  • Weight

    Without batteries:
    ULXD2: 340 g (12 oz.)
    ULXD1: 142 g (5.0 oz.)
    ULXD4: 913 g / 32.20 lbs without antennas

  • UPC Codes

    042406211765 | G50: 470-534MHz: 042406214155 | G50: 470-534MHz: 042406214193

1 Accessories for Shure ULXD24D/SM87 Dual Handheld Wireless System, Includes 2 ULXD2 Transmitter, 2 SM87A Mics, ULXD4D Dual Wireless Receiver, G50 Band 470-534 MHz

  • All Accessories (1)
  • Batteries & Power Supply (1)
Shure SBC800-US 8-Bay Battery Charger
Shure SBC800-US 8-Bay Battery Charger
$634.00
Recommended

About Shure ULXD24D/SM87

Take your audio experience to the next level with the Shure ULXD24D/SM87 Dual Handheld Wireless System. This advanced audio equipment, featuring SM87A microphones and operating within the G50 Band frequency range of 470-534 MHz, is designed to deliver unparalleled audio clarity and highly efficient RF performance.

Constructed with rugged, intelligent, encryption-enabled hardware, this wireless system ensures secure and reliable audio transmission, making it an ideal choice for professional sound reinforcement. The innovative design of the ULXD24D/SM87 system incorporates advanced rechargeability options, eliminating the need for disposable batteries and extending both usage times and the overall life cycle of the product.

This high-quality, durable wireless system from Shure, a reputable brand known for its reliable audio equipment, is a generation ahead of other systems in its class. Whether you're using it for live performances, theater productions, or broadcast events, the ULXD24D/SM87 Dual Handheld Wireless System is designed to meet your professional audio and video needs with precision and reliability.

Shure ULXD24D/SM87 Features

  • Adorama Valuable Bundle. Kit Includes.
  • Shure ULXD4D Dual Channel Digital Wireless Receiver, 2x95AA9279 1/2-Wave Antenna, 1xHardware Kit, 2x2' BNC Cable, 2xBNC Bulkhead Adapters, 1x3' Ethernet Cable, Shure USA Warranty.
  • Shure ULXD2 Handheld Wireless Transmitter, SM87 Microphone, Shure USA Warranty.

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Advanced Shure ULXD24D/SM87 Dual Handheld Wireless System for superior audio clarity
  • Operates within the G50 Band frequency range of 470-534 MHz for efficient RF performance
  • Features rugged, intelligent, encryption-enabled hardware for secure & reliable audio transmission
  • Provides advanced rechargeability options, eliminating the need for disposable batteries

What's in the box:

  • Shure 2 x ULXD2 Handheld Transmitter
  • 2 x SM87A Microphones
  • ULXD4D Dual Digital Wireless Receiver
  • Shure USA Warranty
