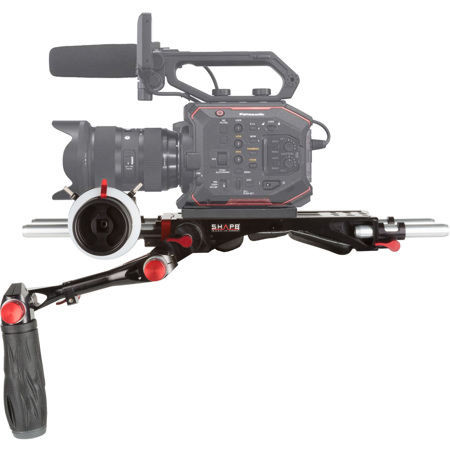

Shape Panasonic AU-EVA1 Camera Bundle Rig with Follow Focus Pro

SHAPE has designed this bundle rig specifically for the Panasonic AU-EVA1 Camera. It's a robust and complete solution that will increase the level of control on set.

AU-EVA1 Baseplate with shoulder mount and 15 mm Rod System
The Panasonic AU-EVA1 Baseplate features a Quick Handle Grip compatible with all standard ARRI rosettes. The Adapter Plate is designed to be mounted at the bottom of the Camera and let you quickly attach your AU-EVA1 camera to the Baseplate with shoulder mount. Made of slip-free material, the shoulder pad produces maximum comfort and stability and will increase your level of control on set. If you want to use the Tripod option, the Baseplate also includes a delta plate and can be quickly mounted to a VCT Tripod Plate. The sophisticated Rod Bloc System of the Baseplate features 2 ratchet knob devices to adjust the length and height of your rods. The 15 mm lightweight rod blocs can be fixed to the Panasonic AU-EVA1 Baseplate, allowing you to install more camera accessories (8" rods at the front and 4" at the back).

Panasonic AU-EVA1 Adapter Plate
The Adapter Plate let you quickly attach your AU-EVA1 camera to the Baseplate. The position of the captive screws perfectly matches the threaded holes of the AU-EVA1 camera base.
• Made of solid and robust CNC machined aluminum
• Features several 1/4-20 and 3/8-16 threaded holes
• Perfect to optimize your AU-EVA1 camera balance on a Tripod, Gimbal or Drone

One (1) Telescopic Handle with ARRI Rosette & Push-Button Technology
The telescopic handle is indexed for extension and rotation, so you can quickly move between known setups. The arms attach to your camera or support via an ARRI compatible rosette with spring-loaded locking levers, which allow you to lock your arms in place without having a full 360 Degree of rotation. The rotating capability allows it to be adjusted for left- and right-handed use. The arm features three points of articulation (1 ratchet knob and 2 Push-button systems). A spring-loaded locking lever along the arms allows you to extend the arms up to 1.5 inches and rotate the handgrips throughout 360 Degree .

SHAPE is well known for its Push-button handle, now used by so many professionals in the industry. We developed this patented technology to give users quick and easy adjustment. By simply pressing the button, you are allowed a 360 degree rotation to place the handle in the best position for your use. The Push-button system on the Handle articulating joint provides additional articulation near the rosette, while a second push-button articulation joint allows you to rotate and precisely position the handgrips.

Main Features of the Telescopic Handle
• Quick release handgrips with multiple points of adjustment
• Compatible with ARRI Rosettes
• Patented push-button technology (Push, adjust, release, and then its lock)
• 1 Ratchet knob for extensible arm (1.5" additional length) and rotating handle for multiple positions (360 Degree axis)
• Ergonomic handles with rubber handgrips for stability and precision
• Stainless steel locking mechanism for durability
• CNC machined parts and hard anodized aluminum for resistance

Follow Focus Pro With A Trusted Engineering
Our Follow Focus Pro is perfect for use with film and cine-style lenses. It's an industry workhorse and has already proven itself on countless tough shoots all over the world. The Follow Focus Pro is designed with a 'Snap-on unit adaptor for 15mm rods' to meet your particular camera rig requirements and adjustments. Manufactured in sleek black anodized aluminum, it is made from robust CNC Machined Aluminum. SHAPE engineering is internationally renowned and our Follow Focus Pro is one of the most robust motion picture accessories ever built.

The Gear Arm is reversible and two gear wheels are supplied to accommodate a wide range of lens barrel sizes 0.8mm pitch (28 and 43 teeth aluminum gear). There is also a choice of two different focusing methods (Standard or Hard Stop) for an accurate adjustment on set.
