Shure FP125/83SM58-H5 Portable Bodypack/Handheld Wireless System
See all Shure items

Shure FP125/83SM58-H5 Portable Bodypack/Handheld Wireless System with WL183 Omnidirectional Lavalier Mic, SM58 Cardioid Mic Capsule, H5/518 - 542MHz

SKU: SHFP83SM58H5

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure FP125/83SM58 Specifications

  • Frequency Range

    H5 / 518 - 542MHz

  • FP1 Transmitter: Gain Adjustment Range

    -10 to +20 dBV

  • FP1 Transmitter: Input Impedance

    1 MOhms

  • FP1 Transmitter: RF Output Power

    10 to 30 mW

  • FP1 Transmitter: Pin Assignments TA4M

    1: Ground (cable shield)
    2: + 5 V Bias
    3: Audio
    4: Tied through active load to ground (on instrument adapter cable, pin 4 floats)

  • FP1 Transmitter: Housing

    Molded polycarbonate case

  • FP1 Transmitter: Power Requirements

    LR6 AA batteries, 1.5 V

  • FP1 Transmitter: Battery Life

    Up to 12 hours (alkaline)

  • FP2 Transmitter: Maximum Input Level

    at -10 dB gain setting: +2 dBV
    at 0 dB gain setting: -8 dBV

  • FP2 Transmitter: Gain Adjustment Range

    10 dB

  • FP2 Transmitter: RF Output Power

    10 to 30 mW

  • FP2 Transmitter: Housing

    Molded PC/ABS handle and battery cup

  • FP2 Transmitter: Power Requirements

    LR6 AA batteries, 1.5 V

  • FP2 Transmitter: Battery Life

    Up to 12 hours (alkaline)

  • FP5 Receiver: Housing

    Molded polycarbonate case

  • FP5 Receiver: Sensitivity

    -108 dBm for 12 dB SINAD, typical

  • FP5 Receiver: Power Requirements

    LR6 AA batteries, 1.5 V

  • FP5 Receiver: Battery Life

    Up to 12 hours (alkaline)

  • FP5 Receiver: Configuration

    Impedance balanced

  • FP5 Receiver: Pin Assignments

    1=ground, 2=hot, 3=cold

  • FP5 Receiver: Maximum Audio Output Level

    -5 dBV (into 600 Ohms load)

  • FP5 Receiver: Impedance

    200 Ohms

  • Dimensions

    FP1 Transmitter: 108 mm x 64 mm x 19 mm / 4.25 x 2.51 x 0.74"
    FP2 Transmitter: 254 mm x 51 mm / 10 x 2"
    FP5 Receiver: 108 mm x 64 mm x 19 mm / 4.25 x 2.51 x 0.74"

  • Weight

    FP1 Transmitter: 81 g (2.85 oz.), without batteries
    FP2 Transmitter: 290 g (10.2 oz.) without batteries
    FP5 Receiver: 81 g (2.85 oz.)

  • UPC Code

    042406232869

About Shure FP125/83SM58

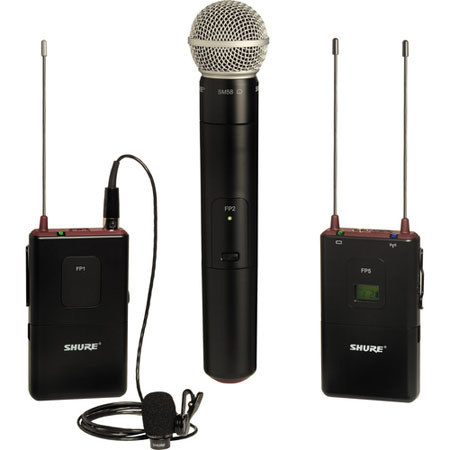

The Shure FP125/83SM58-H5 Portable Bodypack/Handheld Wireless System (H5/518 - 542MHz) features the FP5 portable diversity receiver, FP1 bodypack transmitter, WL 183 lavalier microphone and FP2 handheld microphone with the SM58 cardioid capsule attached.

It provides professional, portable wireless operation in the 24MHz band, is easy to operate and affordable. The FP5 receiver features diversity reception, easy one-touch channel search and lightweight plastic housing. Infrared sync provides quick and easy channel syncing between the FP5 receiver and transmitters. The FP1 bodypack is lightweight and features a TA4 (4-pin) input connection for compatible Shure lavalier microphones. An input gain control is featured for flexible input level adjustment.

The handheld transmitter features the Shure SM58 cardioid capsule and is compatible with any Shure wireless capsule. The FP5 receiver and transmitters are ruggedly built and powered on a pair of AA batteries.

Shure FP125/83SM58 Features

  • FP1 Bodypack Transmitter: Automatic Transmitter Setup instantly syncs the transmitter to the receiver frequency
  • FP1 Bodypack Transmitter: LED indicator for control lockout, IR RF sync, low battery indicator
  • FP1 Bodypack Transmitter: Audio Input Gain for adjustment of audio level
  • FP1 Bodypack Transmitter: 4-Pin Microphone Input Jack for use with lavaliers or headset microphones with TA4F connectors
  • FP1 Bodypack Transmitter: Powered by 2AA batteries
  • FP1 Bodypack Transmitter: Rugged and lightweight Shure construction
  • FP2 Handheld Transmitter: Automatic Transmitter Setup instantly syncs the transmitter to the receiver frequency
  • FP2 Handheld Transmitter: LED indicator for control lockout, IR RF sync, low battery indicator
  • FP2 Handheld Transmitter: Powered by 2AA batteries
  • FP2 Handheld Transmitter: Rugged and lightweight Shure construction
  • FP5 Portable Wireless Receiver: Shure patented Audio Reference Companding for crystal-clear audio
  • FP5 Portable Wireless Receiver: Automatic Frequency Selection locates an open frequency at the touch of a button
  • FP5 Portable Wireless Receiver: Automatic Transmitter Setup instantly syncs the transmitter to the receiver frequency
  • FP5 Portable Wireless Receiver: Power LED with low battery indicator
  • FP5 Portable Wireless Receiver: RF LED indicates transmitter sync when illuminated
  • FP5 Portable Wireless Receiver: 24 MHz bandwidth
  • FP5 Portable Wireless Receiver: Up to 20 compatible systems simultaneously
  • FP5 Portable Wireless Receiver: Powered by 2AA batteries - no power cord required
  • FP5 Portable Wireless Receiver: Receiver output level control manages output to camera/mixer
  • FP5 Portable Wireless Receiver: Diversity antennas for consistent reception of signal transmission
  • FP5 Portable Wireless Receiver: Rugged and lightweight Shure construction

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • FP1 Bodypack Transmitter
  • FP2 Handheld Transmitter
  • FP5 Portable Wireless Receiver

What's in the box:

  • Shure FP5 Portable Diversity Receiver
  • FP1 Bodypack Transmitter
  • FP2 Wireless Handheld Transmitter with SM58 Cardioid Capsule
  • WL183 Lavalier Microphone
  • Microphone Clip
  • Camera Shoe Mount
  • TA3F-to-XLRm Audio Cable
  • TA3F-to-3.5mm Dual-Mono Audio Cable
  • Shure Warranty
