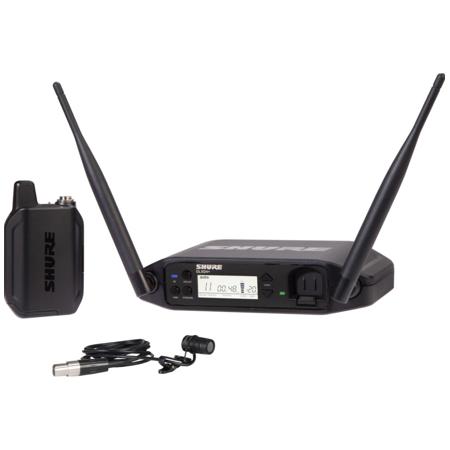

Shure GLXD14+ Dual Band Digital Wireless System with WL185 Lavalier Microphone, Z3: 2.4/5.8GHz

SKU: SHGD1485Z3 MFR: GLXD14+/85-Z3
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this Shure wireless lavalier microphone system, perfect for presentations.
  • Enjoy up to 12 hours of battery life with the GLXD14+ wireless microphone, ideal for long events and recordings.
  • The WL185 lavalier mic's cardioid polar pattern reduces background noise for focused, professional sound.
  • Dual-band operation (2.4/5.8GHz) ensures a reliable, interference-free wireless connection for clear audio.
  • This wireless system includes a bodypack transmitter and tabletop receiver for easy setup and operation.
  • Achieve exceptional sound quality with a wide 20 Hz to 20 kHz frequency response using this Shure microphone.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Shure GLXD14+ Specifications

System
  • Wireless Technology

    Digital 2.4 GHz/5.8 GHz

  • Included Transmitters

    1x Bodypack

  • Diversity

    True Digital Diversity

  • RF Frequency Band

    Z3: 2400 to 2483.5 MHz / 5725 to 5850 MHz

  • RF Bandwidth

    208.5 MHz

  • RF Channel Scanning

    Auto-Scan

  • Max Operating Range

    100' (30.5m) (Line of Sight)

  • Max Transmitters per Band

    8

  • Built-In Recorder

    No

  • Timecode Support

    No

  • Mobile App Compatible

    No

  • Latency

    4.5 to 8 ms

  • Dynamic Range

    120 dBA

  • Modulation

    Proprietary

GLXD4+ Receiver

Jump to...
  • Receiver Type

    Tabletop

  • Antenna

    2x 1/2 Wave Sleeve Dipole, Fixed (Front-Mount)

  • Number of Audio Channels

    1

  • Audio I/O

    1x XLR 3-Pin Male Balanced Mic/Line Output
    1 x 1/4" TRS Female Balanced Output

  • Audio Output Level

    XLR Output:
    +1 dBV

    1/4" Output:
    +8.5 dBV

  • Phantom Power Protection

    On 1/4", XLR Outputs

  • Frequency Response

    20 Hz to 20 kHz (Dependent on Mic)

  • Network I/O

    None

  • Word Clock I/O

    None

  • USB/Lightning Connectivity

    1x USB-C Female (Firmware Update)

  • Impedance

    XLR Output:
    100 Ohms (Balanced)

    1/4" Output:
    100 Ohms (Balanced)
    50 Ohms (Unbalanced)

  • RF Output Power

    10 mW (EIRP, Max)

  • Spurious

    Rejection: >35 dB

  • Power Requirements

    AC/DC Power Adapter

  • AC/DC Power Adapter

    14.5 to 17 VDC at 600 mA (Included)

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz

  • Display & Indicators

    1x Backlit LCD (AF Level, Channel, Frequency, Group, Transmitter Battery Status)

  • Housing

    ABS

  • Operating Temperature

    32 to 113 Degree F (0 to 45 Degree C)

  • Dimensions

    7.2 x 1.6 x 4.8" (183 x 40 x 122mm)

  • Weight

    10.9 oz (310g)

GLXD1+ Bodypack Transmitter

Jump to...
  • Transmitter Type

    Bodypack

  • RF Output Power

    10 mW (EIRP)

  • Audio I/O

    1x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)

  • Plug-In Power

    5 V

  • Pad

    None

  • Muting

    Off/On Switch

  • Audio Input Level

    -8.4 dBV / 7.5 V p-p

  • Auto-Level Control

    No

  • Gain Range

    -20 to +40 dB (1 dB Steps)

  • Sync Method

    Proprietary

  • Antenna

    1x Internal, Fixed (Beltpack)

  • Power Requirements

    Battery

  • Battery

    1x Shure SB904 (Included, Replaceable)

  • Internal Battery Capacity

    2420 mAh

  • Battery Charging Time

    .25 to 3 Hours

  • Approx. Battery Life

    12 Hours (Lithium Rechargeable)

  • USB/Lightning I/O

    1x USB-C (Charging)

  • Display & Indicators

    1x LED (Battery Status, Sync)

  • Housing

    Metal

  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

  • Dimensions

    Without Antennas: 2.6 x 4.5 x 1.1" (67 x 115 x 28.5mm)

  • Weight

    Without Batteries: 5.4 oz (153.1g)

WL185 Lavalier Microphone

Jump to...
  • Color

    Black

  • Microphone Type

    Lavalier

  • Sound Field

    Mono

  • Capsule

    Electret Condenser

  • Polar Pattern

    Cardioid

  • Frequency Range

    50 Hz to 17 kHz

  • Equivalent Noise Level

    28 dB A-Weighted

  • Maximum SPL

    130.5 dB SPL

  • Impedance

    1.8 Kilohms

  • Sensitivity

    -45.5 dBV/Pa

  • Dynamic Range

    102.5 dB

  • Outputs

    1x TA4/Mini XLR 4-Pin Female Unbalanced (Lockable)

  • Cable Length

    3.94' (1.2m)

  • Operating Voltage

    1.5 to 10 V

  • UPC Code

    042406695534

About Shure GLXD14+

The new GLX-D+ Dual Band Wireless Presenter System features the premium wearable WL185 lavalier microphone for spoken word applications and the GLXD4+ tabletop receiver. The perfect combination of the automatic frequency management with the new Dual Band Technology provides reliable and consistent performance, while Shure proprietary Lithium-Ion rechargeable batteries provide up to 12 hours of use. Go wireless without complication.


- GLXD4+ Digital Wireless Dual Band Tabletop Receiver -
GLX-D+ Dual Band Digital Wireless offers confidence without complexity. Dual-band operation in 2.4 and 5.8 GHz more than doubles the available bandwidth to avoid interference without audio interruption. The receiver is compatible with a selection of lavalier, headset, and vocal microphones. The included lithium-ion battery offers up to 12 hours of runtime, and can be charged directly on the receiver or via USB-C.


- GLXD1+ Dual Band Bodypack Transmitter -
The GLXD1+ Dual Band Bodypack Transmitter has rugged, metal construction with ergonomic design and reversible belt clip to fit comfortably and snugly in various positions. Compatible with instrument cable, and a variety of headset and lavalier microphone options.


- WL185 Cardioid Lavalier Microphone -
Wireless premium cardioid condenser lavalier mic for speech applications.

Recommended for general purpose sound reinforcement applications requiring good rejection of ambient noise, the WL185 is a cardioid lavalier microphone with a 130 degree pickup angle. It has a 1.2 meter (4 ft.) cable terminated with a miniature 4-pin mini connector. Included tie clip can be rotated in 90 degree intervals for placement flexibility. Use of windscreen highly recommended.

Feature CommShield Technology, which guards against interference from cellular RF devices and digital bodypack transmitter.

Shure GLXD14+ Features

  • GLXD4+ Digital Wireless Dual Band Tabletop Receiver Features
  • Exceptional digital audio clarity
  • Compatible with multiple legendary microphone options
  • Automatically moves away from interference without audio interruption
  • Operates in 2.4 and 5.8 GHz spectrum
  • Rechargeable battery delivers up to 12 hours of runtime
  • Rock-solid RF performance for multiple system installations
  • License-free frequency range
  • GLXD1+ Dual Band Bodypack Transmitter Features
  • Compatible with any GLX-D+ Dual Band receiver
  • Compatible with instrument cable, and a variety of headset and lavalier microphone options
  • Dual frequency band operation (2.4GHz and 5.8GHz)
  • Battery now lasts -12 hours (versus 11 in prior version)
  • Antenna has a slightly different shape
  • WL185 Cardioid Lavalier Microphone Features
  • Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
  • Interchangeable cartridges that provide an optimal choice for each application
  • Rotatable tie-clip that pivots in 90 degree increments for placement flexibility
  • Supplied snap-fit foam windscreen that controls breath noise and stays on securely
  • Supplied dual tie clip holds two microphones for dual miking applications

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this Shure wireless lavalier microphone system, perfect for presentations.
  • Enjoy up to 12 hours of battery life with the GLXD14+ wireless microphone, ideal for long events and recordings.
  • The WL185 lavalier mic's cardioid polar pattern reduces background noise for focused, professional sound.
  • Dual-band operation (2.4/5.8GHz) ensures a reliable, interference-free wireless connection for clear audio.
  • This wireless system includes a bodypack transmitter and tabletop receiver for easy setup and operation.
  • Achieve exceptional sound quality with a wide 20 Hz to 20 kHz frequency response using this Shure microphone.

What's in the box:

  • GLXD4+ Dual Band Digital Wireless Tabletop Receiver
  • GLXD1+ Digital Wireless Bodypack Transmitter
  • WL185 Cardioid Lavalier Microphone
  • Power Supply
  • SB904 Li-Ion Battery
  • Carrying Case
  • User Manual
  • Shure 2 Year Limited Warranty
