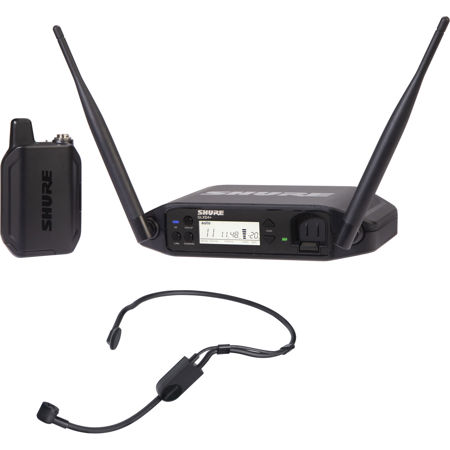

Shure GLXD14+ Dual Band Digital Wireless System with PGA31 Headset Microphone, Z3: 2.4/5.8GHz

SKU: SHGD14PG31Z3 MFR: GLXD14+/PGA31-Z3
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this Shure wireless microphone system, perfect for presentations.
  • Enjoy up to 12 hours of battery life with the GLXD14+ rechargeable wireless microphone system.
  • The PGA31 headset microphone offers hands-free convenience and exceptional sound quality.
  • This wireless system operates in the 2.4/5.8 GHz band, ensuring reliable performance.
  • Achieve freedom of movement with a 100-foot range using this digital wireless microphone.
  • The GLXD4+ receiver's intuitive display shows battery status for uninterrupted use.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$84.99

2 Year

$97.99

3 Year

$133.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Shure GLXD14+ Specifications

System
  • Wireless Technology

    Digital 2.4 GHz/5.8 GHz

  • Included Transmitters

    1x Bodypack

  • Diversity

    True Digital Diversity

  • RF Frequency Band

    Z3: 2400 to 2483.5 MHz / 5725 to 5850 MHz

  • RF Bandwidth

    208.5 MHz

  • RF Channel Scanning

    Auto-Scan

  • Max Operating Range

    100' (30.5m) (Line of Sight)

  • Max Transmitters per Band

    8

  • Built-In Recorder

    No

  • Timecode Support

    No

  • Mobile App Compatible

    No

  • Latency

    4.5 to 8 ms

  • Dynamic Range

    120 dBA

  • Modulation

    Proprietary

GLXD4+ Receiver

Jump to...
  • Receiver Type

    Tabletop

  • Antenna

    2x 1/2 Wave Sleeve Dipole, Fixed (Front-Mount)

  • Number of Audio Channels

    1

  • Audio I/O

    1x XLR 3-Pin Male Balanced Mic/Line Output
    1 x 1/4" TRS Female Balanced Output

  • Audio Output Level

    XLR Output:
    +1 dBV

    1/4" Output:
    +8.5 dBV

  • Phantom Power Protection

    On 1/4", XLR Outputs

  • Frequency Response

    20 Hz to 20 kHz (Dependent on Mic)

  • Network I/O

    None

  • Word Clock I/O

    None

  • USB/Lightning Connectivity

    1x USB-C Female (Firmware Update)

  • Impedance

    XLR Output:
    100 Ohms (Balanced)

    1/4" Output:
    100 Ohms (Balanced)
    50 Ohms (Unbalanced)

  • RF Output Power

    10 mW (EIRP, Max)

  • Spurious

    Rejection: >35 dB

  • Power Requirements

    AC/DC Power Adapter

  • AC/DC Power Adapter

    14.5 to 17 VDC at 600 mA (Included)

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz

  • Display & Indicators

    1x Backlit LCD (AF Level, Channel, Frequency, Group, Transmitter Battery Status)

  • Housing

    ABS

  • Operating Temperature

    32 to 113 Degree F (0 to 45 Degree C)

  • Dimensions

    7.2 x 1.6 x 4.8" (183 x 40 x 122mm)

  • Weight

    10.9 oz (310g)

GLXD1+ Bodypack Transmitter

Jump to...
  • Transmitter Type

    Bodypack

  • RF Output Power

    10 mW (EIRP)

  • Audio I/O

    1x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)

  • Plug-In Power

    5 V

  • Pad

    None

  • Muting

    Off/On Switch

  • Audio Input Level

    -8.4 dBV / 7.5 V p-p

  • Auto-Level Control

    No

  • Gain Range

    -20 to +40 dB (1 dB Steps)

  • Sync Method

    Proprietary

  • Antenna

    1x Internal, Fixed (Beltpack)

  • Power Requirements

    Battery

  • Battery

    1x Shure SB904 (Included, Replaceable)

  • Internal Battery Capacity

    2420 mAh

  • Battery Charging Time

    .25 to 3 Hours

  • Approx. Battery Life

    12 Hours (Lithium Rechargeable)

  • USB/Lightning I/O

    1x USB-C (Charging)

  • Display & Indicators

    1x LED (Battery Status, Sync)

  • Housing

    Metal

  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

  • Dimensions

    Without Antennas: 2.6 x 4.5 x 1.1" (67 x 115 x 28.5mm)

  • Weight

    Without Batteries: 5.4 oz (153.1g)

PGA31 Headset Microphone

Jump to...
  • Color

    Black

  • Microphone Type

    Headset

  • Sound Field

    Mono

  • Capsule

    Electret Condenser

  • Polar Pattern

    Cardioid, Unidirectional

  • Frequency Range

    60 Hz to 20 kHz

  • SNR

    66 dB

  • Equivalent Noise Level

    28 dB A-Weighted

  • Maximum SPL

    145 dB SPL

  • THD

    < 3%

  • Impedance

    600 Ohms

  • Dynamic Range

    117 dB

  • Outputs

    1x TA4/Mini XLR 4-Pin Female Unbalanced (Lockable)

  • Cable Length

    4.3' (1.3m)

  • Operating Voltage

    5 to 10 V

  • Operating Current Consumption

    40 microA

  • Weight

    1.6 oz (45g)

  • UPC Code

    042406695657

About Shure GLXD14+

The new GLX-D+ Dual Band Wireless Headset System features the PGA31 Headset Microphone for spoken word applications and the GLXD4+ tabletop receiver. The perfect combination of the automatic frequency management with the new Dual Band Technology provides reliable and consistent performance, while Shure proprietary Lithium-Ion rechargeable batteries provide up to 12 hours of use. Go wireless without complication.


- GLXD4+ Digital Wireless Dual Band Tabletop Receiver -
GLX-D+ Dual Band Digital Wireless offers confidence without complexity. Dual-band operation in 2.4 and 5.8 GHz more than doubles the available bandwidth to avoid interference without audio interruption. The receiver is compatible with a selection of lavalier, headset, and vocal microphones. The included lithium-ion battery offers up to 12 hours of runtime, and can be charged directly on the receiver or via USB-C.


- GLXD1+ Dual Band Bodypack Transmitter -
The GLXD1+ Dual Band Bodypack Transmitter has rugged, metal construction with ergonomic design and reversible belt clip to fit comfortably and snugly in various positions. Compatible with instrument cable, and a variety of headset and lavalier microphone options.


- PGA31 Headset Microphone -
The PGA31 performance headset microphone for general, speaking and performance use is a permanently-biased electret condenser microphone. Engineered to provide maximum versatility and reliable performance in a wide array of conditions at an affordable price, the PGA31 is compatible with any Shure wireless bodypack systems with TA4F (TQG) connectors. Available as an included option for many systems, it also makes a viable replacement option for use in existing systems.

The wearable design offers improved comfort and a secure fit for hands-free operation in any situation, while the unidirectional (cardioid) pickup pattern provides excellent off-axis rejection for higher gain-before-feedback when using a stage monitor.

Shure GLXD14+ Features

  • GLXD4+ Digital Wireless Dual Band Tabletop Receiver Features
  • Exceptional digital audio clarity
  • Compatible with multiple legendary microphone options
  • Automatically moves away from interference without audio interruption
  • Operates in 2.4 and 5.8 GHz spectrum
  • Rechargeable battery delivers up to 12 hours of runtime
  • Rock-solid RF performance for multiple system installations
  • License-free frequency range
  • GLXD1+ Dual Band Bodypack Transmitter Features
  • Compatible with any GLX-D+ Dual Band receiver
  • Compatible with instrument cable, and a variety of headset and lavalier microphone options
  • Dual frequency band operation (2.4GHz and 5.8GHz)
  • Battery now lasts -12 hours (versus 11 in prior version)
  • Antenna has a slightly different shape
  • PGA31 Headset Microphone Features
  • Wearable wireframe headset fits securely for multi-instrumentalists and active performers
  • Permanently charged electret condenser element for detailed, crisp vocals
  • Unidirectional (cardioid) polar pattern rejects unwanted noise for improved sound quality and higher gain-before-feedback
  • Flexible gooseneck design and discrete adjustment options optimize microphone positioning for further source isolation
  • TA4F (TQG) connector seamlessly integrates with existing Shure bodypack systems
  • Also available with a wide variety of Shure wireless systems, renowned for ease of use and reliable performance
  • Included windscreen tames plosive, breath and wind noise for clean and intelligible sound
  • Tailored frequency response primed for great sound on vocals
  • Legendary Shure precision engineering for durability and performance

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this Shure wireless microphone system, perfect for presentations.
  • Enjoy up to 12 hours of battery life with the GLXD14+ rechargeable wireless microphone system.
  • The PGA31 headset microphone offers hands-free convenience and exceptional sound quality.
  • This wireless system operates in the 2.4/5.8 GHz band, ensuring reliable performance.
  • Achieve freedom of movement with a 100-foot range using this digital wireless microphone.
  • The GLXD4+ receiver's intuitive display shows battery status for uninterrupted use.

What's in the box:

  • GLXD4+ Dual Band Digital Wireless Tabletop Receiver
  • GLXD1+ Digital Wireless Bodypack Transmitter
  • PGA31 Cardioid Headset Microphone
  • PS43 Power Supply
  • SB904 Li-Ion Battery
  • Carrying Case (Black)
  • User Manual
  • Shure 2 Year Limited Warranty
