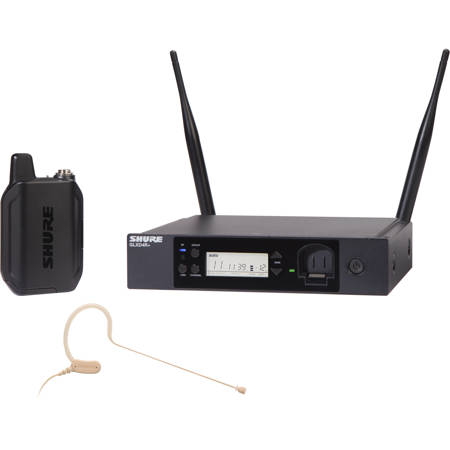

Shure GLXD14R+ Dual Band Digital Wireless Rack System with MX153 Earset Headworn Microphone, Z3: 2.4/5.8GHz

SKU: SHGD14RMX5Z3 MFR: GLXD14R+/MX53-Z3
Earn VIP Reward Points

Key Features

  • Experience exceptional vocal clarity with the Shure MX153 earset headworn microphone system.
  • Enjoy freedom of movement on stage with this Shure GLXD14R+ digital wireless microphone system.
  • The GLXD1+ bodypack transmitter provides up to 12 hours of battery life for long performances.
  • Achieve superior sound quality with a wide 20 Hz to 20 kHz frequency response for vocals.
  • Perfect for presenters, the discreet earset microphone ensures clear audio and comfort.
  • Reliable dual band digital wireless ensures interference-free performance for crucial events.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$129.99

2 Year

$162.99

3 Year

$217.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Shure GLXD14R+ Specifications

System
  • Wireless Technology

    Digital 2.4 GHz/5.8 GHz

  • Included Transmitters

    1x Bodypack

  • Diversity

    True Digital Diversity

  • RF Frequency Band

    Z3: 2400 to 2483.5 MHz / 5725 to 5850 MHz

  • RF Bandwidth

    208.5 MHz

  • RF Channel Scanning

    Auto-Scan

  • Max Operating Range

    100' (30.5m) (Line of Sight)

  • Max Transmitters per Band

    8

  • Built-In Recorder

    No

  • Timecode Support

    No

  • Mobile App Compatible

    No

  • Latency

    4.5 to 8 ms

  • Dynamic Range

    120 dBA

  • Encryption

    None

  • Modulation

    Proprietary

GLXD4R+ Receiver

Jump to...
  • Receiver Type

    Rackmount

  • Mounting Options

    Rackmount (with Included Hardware)

  • Rackmount Size

    1 RU (1/2 Rack)

  • Antenna

    2x 1/2 Wave Sleeve Dipole, Detachable (Rear-Mount)

  • Number of Audio Channels

    1

  • Audio I/O

    1x XLR 3-Pin Male Balanced Mic/Line Output
    1x 1/4" TRS Female Balanced Output

  • Gain Range

    -18 to +42 dB (1 dB Steps)

  • Pad

    30 dB

  • Audio Output Level

    XLR Output:
    +18 dBV (Line Level)

    XLR Output:
    -12 dBV (Mic Level)

    1/4" Output:
    +12 dBV

  • Phantom Power Protection

    On 1/4", XLR Outputs

  • Frequency Response

    20 Hz to 20 kHz (Dependent on Mic)

  • Network I/O

    None

  • Word Clock I/O

    None

  • USB/Lightning Connectivity

    1x USB-C Female (Firmware Update)

  • Impedance

    XLR Output:
    100 Ohms (Balanced)

    1/4" Output:
    100 Ohms (Balanced)
    50 Ohms (Unbalanced)

  • RF Output Power

    10 mW (EIRP, Max)

  • Spurious

    Rejection: >35 dB

  • Power Requirements

    AC/DC Power Adapter

  • AC/DC Power Adapter

    14.5 to 17 VDC at 600 mA (Included)

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz

  • Display & Indicators

    1x Backlit LCD (AF Level, Channel, Frequency, Group, Transmitter Battery Status)

  • Housing

    Steel

  • Operating Temperature

    32 to 113 Degree F (0 to 45 Degree C)

  • Dimensions

    7.8 x 1.7 x 6.4" (197 x 42 x 163mm)

  • Weight

    30.5 oz (866g)

GLXD1+ Bodypack Transmitter

Jump to...
  • Transmitter Type

    Bodypack

  • RF Output Power

    10 mW (EIRP)

  • Audio I/O

    1x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)

  • Plug-In Power

    5 V

  • Pad

    None

  • Muting

    Off/On Switch

  • Audio Input Level

    -8.4 dBV / 7.5 V p-p

  • Auto-Level Control

    No

  • Gain Range

    -18 to +42 dB (1 dB Steps)

  • Sync Method

    Proprietary

  • Antenna

    1x Internal, Fixed (Beltpack)

  • Power Requirements

    Battery

  • Battery

    1x Shure SB904 (Included, Replaceable)

  • Internal Battery Capacity

    2420 mAh

  • Battery Charging Time

    .25 to 3 Hours

  • Approx. Battery Life

    12 Hours (Lithium Rechargeable)

  • USB/Lightning I/O

    1x USB-C (Charging)

  • Display & Indicators

    1x LED (Battery Status, Sync)

  • Housing

    Metal

  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

  • Dimensions

    Without Antennas: 2.6 x 4.5 x 1.1" (67 x 115 x 28.5mm)

  • Weight

    Without Batteries: 5.4 oz (153.1g)

MX153 Headworn Microphone

Jump to...
  • Microphone Type

    Earset

  • Color

    Black

  • Sound Field

    Mono

  • Capsule

    Electret Condenser

  • Polar Pattern

    Omnidirectional

  • Frequency Range

    20 Hz to 20 kHz

  • SNR

    60 dB

  • Equivalent Noise Level

    34 dB A-Weighted

  • Maximum SPL

    107 dB SPL

  • THD

    < 1%

  • Sensitivity

    -41 dBV/Pa at 1 kHz

  • Dynamic Range

    73 dB

  • Outputs

    1x TA4/Mini XLR 4-Pin Female Unbalanced (Lockable)

  • Cable Length

    4' (1.2m)

  • Operating Voltage

    1 to 5 V

  • Operating Current Consumption

    500 microA

  • Operating Temperature

    0 to 134 Degree F (-18 to 57 Degree C)

  • Weight

    0.7 oz (19.8g)

  • UPC Code

    042406695862

About Shure GLXD14R+

Overcome the limitations of wired microphones with the GLXD14R+ Dual Band Digital Wireless Rack System, featuring the premium MX153 Earset Headworn Microphone. This high-quality, professional-grade wireless system is designed for superior vocal performance applications, offering the freedom to move without compromising sound quality.

The heart of this system is the GLXD4R+ half-rack receiver, which utilizes innovative dual-band technology to operate in both the 2.4 and 5.8 GHz frequency ranges. This doubles the available bandwidth, significantly reducing the risk of interference and ensuring uninterrupted audio performance. The receiver is compatible with a wide range of lavalier, headset, and vocal microphones, offering versatility for various performance settings.

The GLXD14R+ system also includes the GLXD1+ Dual Band Bodypack Transmitter. Its rugged, metal construction and ergonomic design ensure durability and comfort, while the reversible belt clip allows for flexible positioning. This transmitter is compatible with instrument cables and a variety of headset and lavalier microphone options, making it a reliable choice for musicians and performers.

The package is completed with the MX153 Earset Microphone, an omnidirectional headworn microphone that delivers exceptional speech clarity and enhanced plosive protection. It features Shure's proprietary CommShield technology to guard against RF interference, ensuring a clean, clear signal. The MX153 also includes three windscreens and a protective pouch for safe storage and transport.

The GLXD14R+ Dual Band Digital Wireless Rack System is powered by Shure's proprietary Lithium-Ion rechargeable batteries, providing up to 12 hours of use. The batteries can be conveniently charged directly on the receiver or via USB-C, making this system a practical solution for long performances or events.

Whether you're a musician performing on stage, a speaker delivering a corporate presentation, or a sound engineer setting up for a live event, the GLXD14R+ Dual Band Digital Wireless Rack System with MX153 Earset Headworn Microphone offers the reliability, versatility, and high-quality audio performance you need.

Shure GLXD14R+ Features

  • GLXD4R+ Dual Band Digital Wireless Rackmount Receiver Features
  • Exceptional digital audio clarity
  • Compatible with multiple legendary microphone options
  • Automatically moves away from interference without audio interruption
  • Operates in 2.4 and 5.8 GHz spectrum
  • Rechargeable battery delivers up to 12 hours of runtime
  • Rock-solid RF performance for multiple system installations
  • License-free frequency range
  • GLXD1+ Dual Band Bodypack Transmitter Features
  • Compatible with any GLX-D+ Dual Band receiver
  • Compatible with instrument cable, and a variety of headset and lavalier microphone options
  • Dual frequency band operation (2.4GHz and 5.8GHz)
  • Battery now lasts -12 hours (versus 11 in prior version)
  • Antenna has a slightly different shape
  • MX153 Earset Headworn Microphone Features
  • Subminiature omnidirectional cartridge offers superior clarity and enhanced plosive protection with no proximity effect
  • Terminated with TQG / TA4F connector for direct connectivity to Shure wireless bodypack transmitters
  • Ultra-lightweight, comfortable, flexible design is stable and easy to place over either ear
  • CommShield Technology guards against interference from cellular RF devices and digital bodypack transmitters
  • Kevlar reinforced soft flex cable

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience exceptional vocal clarity with the Shure MX153 earset headworn microphone system.
  • Enjoy freedom of movement on stage with this Shure GLXD14R+ digital wireless microphone system.
  • The GLXD1+ bodypack transmitter provides up to 12 hours of battery life for long performances.
  • Achieve superior sound quality with a wide 20 Hz to 20 kHz frequency response for vocals.
  • Perfect for presenters, the discreet earset microphone ensures clear audio and comfort.
  • Reliable dual band digital wireless ensures interference-free performance for crucial events.

What's in the box:

  • GLXD4R+ Dual Band Digital Wireless Rackmount Receiver
  • GLXD1+ Digital Wireless Bodypack Transmitter
  • MX153 Earset Headworn Microphone
  • PS43 Power Supply
  • 2x 22-In RSMA Cable
  • 2x Antennas
  • SB904 Li-Ion Battery
  • Zippered Vinyl Bag
  • Rack-Mount Hardware
  • User Manual
  • Shure 2 Year Limited Warranty
