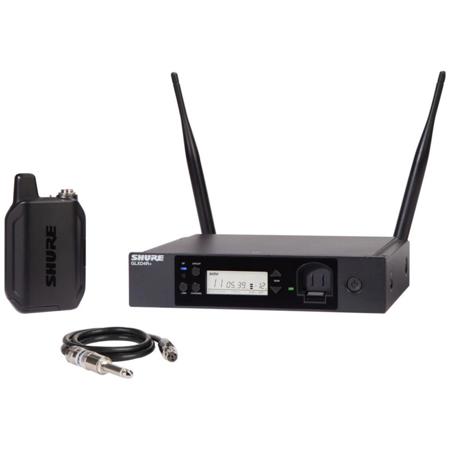

Shure GLXD14R+ Dual Band Digital Wireless Rack System with WA302 Instrument Cable, Z3: 2.4/5.8GHz

SKU: SHGD14RZ3 MFR: GLXD14R+-Z3
Earn VIP Reward Points

Key Features

  • Experience freedom with this Shure wireless instrument microphone system, perfect for live performances.
  • Enjoy exceptional sound quality with a digital wireless system operating in dual 2.4/5.8 GHz bands.
  • The included WA302 instrument cable ensures a secure connection from your instrument to the bodypack.
  • Achieve up to 12 hours of battery life using the included SB904 rechargeable battery for long gigs.
  • Set up quickly with the GLXD4R+ rackmount receiver, featuring easy frequency scanning and selection.
  • Benefit from low latency and a wide dynamic range for clear, professional audio during any performance.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?YOUNGGOO L : For Worship

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Shure GLXD14R+ Specifications

System
  • Wireless Technology

    Digital 2.4 GHz/5.8 GHz

  • Included Transmitters

    1x Bodypack

  • Diversity

    True Digital Diversity

  • RF Frequency Band

    Z3: 2400 to 2483.5 MHz / 5725 to 5850 MHz

  • RF Bandwidth

    208.5 MHz

  • RF Channel Scanning

    Auto-Scan

  • Max Operating Range

    100' (30.5m) (Line of Sight)

  • Max Transmitters per Band

    8

  • Built-In Recorder

    No

  • Timecode Support

    No

  • Mobile App Compatible

    No

  • Latency

    4.5 to 8 ms

  • Dynamic Range

    120 dBA

  • Encryption

    None

  • Modulation

    Proprietary

GLXD4R+ Receiver

Jump to...
  • Receiver Type

    Rackmount

  • Mounting Options

    Rackmount (with Included Hardware)

  • Rackmount Size

    1 RU (1/2 Rack)

  • Antenna

    2x 1/2 Wave Sleeve Dipole, Detachable (Rear-Mount)

  • Number of Audio Channels

    1

  • Audio I/O

    1x XLR 3-Pin Male Balanced Mic/Line Output
    1x 1/4" TRS Female Balanced Output

  • Gain Range

    -18 to +42 dB (1 dB Steps)

  • Pad

    30 dB

  • Audio Output Level

    XLR Output:
    +18 dBV (Line Level)

    XLR Output:
    -12 dBV (Mic Level)

    1/4" Output:
    +12 dBV

  • Phantom Power Protection

    On 1/4", XLR Outputs

  • Frequency Response

    20 Hz to 20 kHz (Dependent on Mic)

  • Network I/O

    None

  • Word Clock I/O

    None

  • USB/Lightning Connectivity

    1 x USB-C Female (Firmware Update)

  • Impedance

    XLR Output:
    100 Ohms (Balanced)

    1/4" Output:
    100 Ohms (Balanced)
    50 Ohms (Unbalanced)

  • RF Output Power

    10 mW (EIRP, Max)

  • Spurious

    Rejection: >35 dB

  • Power Requirements

    AC/DC Power Adapter

  • AC/DC Power Adapter

    14.5 to 17 VDC at 600 mA (Included)

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz

  • Display & Indicators

    1 x Backlit LCD (AF Level, Channel, Frequency, Group, Transmitter Battery Status)

  • Housing

    Steel

  • Operating Temperature

    32 to 113 Degree F (0 to 45 Degree C)

  • Dimensions

    7.8 x 1.7 x 6.4" (197 x 42 x 163mm)

  • Weight

    30.5 oz (866g)

GLXD1+ Bodypack Transmitter

Jump to...
  • Transmitter Type

    Bodypack

  • RF Output Power

    10 mW (EIRP)

  • Audio I/O

    1x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)

  • Plug-In Power

    5 V

  • Pad

    None

  • Muting

    Off/On Switch

  • Audio Input Level

    -8.4 dBV / 7.5 V p-p

  • Auto-Level Control

    No

  • Gain Range

    -18 to +42 dB (1 dB Steps)

  • Sync Method

    Proprietary

  • Antenna

    1x Internal, Fixed (Beltpack)

  • Power Requirements

    Battery

  • Battery

    1x Shure SB904 (Included, Replaceable)

  • Internal Battery Capacity

    2420 mAh

  • Battery Charging Time

    .25 to 3 Hours

  • Approx. Battery Life

    12 Hours (Lithium Rechargeable)

  • USB/Lightning I/O

    1x USB-C (Charging)

  • Display & Indicators

    1x LED (Battery Status, Sync)

  • Housing

    Metal

  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

  • Dimensions

    Without Antennas: 2.6 x 4.5 x 1.1" (67 x 115 x 28.5mm)

  • Weight

    Without Batteries: 5.4 oz (153.1g)

WA302 Instrument Cable

Jump to...
  • Compatibility

    Shure T1, UT1, SC1, PG1, PGX1, PGXD1, SLX1, LX1, ULX1, UC1, UR1, UR1M and U1 body-pack transmitters

  • Connector 1

    1x 1/4" TS Male

  • Connector 2

    1x Lockable 4-Pin Mini-XLR Female

  • Cable Length

    2.5' (0.76m)

  • UPC Code

    042406695749

About Shure GLXD14R+

Be at the forefront of audio technology with the GLXD14R+ Dual Band Digital Wireless Rack System. This advanced system features the robust WA302 instrument cable and the innovative GLXD4R+ half-rack receiver, a perfect blend of automatic frequency management and cutting-edge Dual Band Technology. This combination ensures reliable, consistent performance, making it an ideal choice for professionals seeking high-quality audio equipment.

The GLXD14R+ system operates on a dual-band frequency of 2.4 and 5.8 GHz, significantly expanding the available bandwidth and effectively avoiding interference for uninterrupted audio. This versatile system is compatible with a wide selection of lavalier, headset, and vocal microphones, making it a flexible solution for various audio needs.

The system is powered by Shure's proprietary Lithium-Ion rechargeable batteries, providing up to 12 hours of continuous use. These batteries can be conveniently charged directly on the receiver or via USB-C, ensuring you're always ready for your next performance or recording session.

The GLXD1+ Dual Band Bodypack Transmitter, included in the system, boasts a rugged, metal construction with an ergonomic design and reversible belt clip. This ensures a comfortable and snug fit in various positions, enhancing user experience.

The package also includes the WA302 Instrument Cable, designed to connect a 1/4" jack to a 4-pin mini-connector for bodypack transmitters. This cable is compatible with a range of bodypack transmitters, including T1, SC1, PG1, PGX1, SLX1, LX1, U1, UC1, ULX, UR1, UR1M, UR1H, and UT1.

For larger installations requiring a greater number of channels, the GLXD14R+ system can be combined with the GLX-D+ Frequency Manager and directional antennas (both sold separately). This makes it a scalable solution for diverse audio environments, from live performances and recording studios to broadcasting setups. Experience the reliability and quality of the GLXD14R+ Dual Band Digital Wireless Rack System, a testament to Shure's commitment to innovative, high-quality audio solutions.

Shure GLXD14R+ Features

  • GLXD4R+ Dual Band Digital Wireless Rackmount Receiver Features
  • Exceptional digital audio clarity
  • Compatible with multiple legendary microphone options
  • Automatically moves away from interference without audio interruption
  • Operates in 2.4 and 5.8 GHz spectrum
  • Rechargeable battery delivers up to 12 hours of runtime
  • Rock-solid RF performance for multiple system installations
  • License-free frequency range
  • GLXD1+ Dual Band Bodypack Transmitter Features
  • Compatible with any GLX-D+ Dual Band receiver
  • Compatible with instrument cable, and a variety of headset and lavalier microphone options
  • Dual frequency band operation (2.4GHz and 5.8GHz)
  • Battery now lasts -12 hours (versus 11 in prior version)
  • Antenna has a slightly different shape
  • WA302 Instrument Cable Features
  • Connects a 1/4" jack to a 4-pin mini-connector for bodypack transmitters
  • Used with T1, SC1, PG1, PGX1, SLX1, LX1, U1, UC1, ULX, UR1, UR1M, UR1H and UT1 bodypack transmitters

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience freedom with this Shure wireless instrument microphone system, perfect for live performances.
  • Enjoy exceptional sound quality with a digital wireless system operating in dual 2.4/5.8 GHz bands.
  • The included WA302 instrument cable ensures a secure connection from your instrument to the bodypack.
  • Achieve up to 12 hours of battery life using the included SB904 rechargeable battery for long gigs.
  • Set up quickly with the GLXD4R+ rackmount receiver, featuring easy frequency scanning and selection.
  • Benefit from low latency and a wide dynamic range for clear, professional audio during any performance.

What's in the box:

  • GLXD4R+ Dual Band Digital Wireless Rackmount Receiver
  • GLXD1+ Digital Wireless Bodypack Transmitter
  • WA302 Instrument Cable (TA4F to 1/4")
  • PS43 Power Supply
  • 2x 22-In RSMA Cable
  • 2x Antennas
  • SB904 Li-Ion Battery
  • Zippered Vinyl Bag
  • Rack-Mount Hardware
  • User Manual
  • Shure 2 Year Limited Warranty
