Shure GLXD14+ Dual Band Digital Wireless System with SM35 Headset Microphone, Z3: 2.4/5.8GHz

SKU: SHGD14SM35Z3 MFR: GLXD14+/SM35-Z3
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with the Shure SM35 headset microphone for presentations.
  • Enjoy up to 12 hours of battery life with the GLXD1+ bodypack wireless microphone system.
  • The GLXD4+ receiver's digital wireless technology operates in the 2.4/5.8 GHz band.
  • Achieve freedom of movement with a 100-foot range using this wireless microphone system.
  • Ideal for fitness instructors: the SM35 headset stays secure and delivers clear sound.
  • The Shure GLXD14+ system ensures reliable performance with true digital diversity.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Shure GLXD14+ Specifications

System
  • Wireless Technology

    Digital 2.4 GHz/5.8 GHz

  • Included Transmitters

    1x Bodypack

  • Diversity

    True Digital Diversity

  • RF Frequency Band

    Z3: 2400 to 2483.5 MHz / 5725 to 5850 MHz

  • RF Bandwidth

    208.5 MHz

  • RF Channel Scanning

    Auto-Scan

  • Max Operating Range

    100' (30.5m) (Line of Sight)

  • Max Transmitters per Band

    8

  • Built-In Recorder

    No

  • Timecode Support

    No

  • Mobile App Compatible

    No

  • Latency

    4.5 to 8 ms

  • Dynamic Range

    120 dBA

  • Modulation

    Proprietary

GLXD4+ Receiver

Jump to...
  • Receiver Type

    Tabletop

  • Antenna

    2x 1/2 Wave Sleeve Dipole, Fixed (Front-Mount)

  • Number of Audio Channels

    1

  • Audio I/O

    1x XLR 3-Pin Male Balanced Mic/Line Output
    1 x 1/4" TRS Female Balanced Output

  • Audio Output Level

    XLR Output:
    +1 dBV

    1/4" Output:
    +8.5 dBV

  • Phantom Power Protection

    On 1/4", XLR Outputs

  • Frequency Response

    20 Hz to 20 kHz (Dependent on Mic)

  • Network I/O

    None

  • Word Clock I/O

    None

  • USB/Lightning Connectivity

    1x USB-C Female (Firmware Update)

  • Impedance

    XLR Output:
    100 Ohms (Balanced)

    1/4" Output:
    100 Ohms (Balanced)
    50 Ohms (Unbalanced)

  • RF Output Power

    10 mW (EIRP, Max)

  • Spurious

    Rejection: >35 dB

  • Power Requirements

    AC/DC Power Adapter

  • AC/DC Power Adapter

    14.5 to 17 VDC at 600 mA (Included)

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz

  • Display & Indicators

    1x Backlit LCD (AF Level, Channel, Frequency, Group, Transmitter Battery Status)

  • Housing

    ABS

  • Operating Temperature

    32 to 113 Degree F (0 to 45 Degree C)

  • Dimensions

    7.2 x 1.6 x 4.8" (183 x 40 x 122mm)

  • Weight

    10.9 oz (310g)

GLXD1+ Bodypack Transmitter

Jump to...
  • Transmitter Type

    Bodypack

  • RF Output Power

    10 mW (EIRP)

  • Audio I/O

    1x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)

  • Plug-In Power

    5 V

  • Pad

    None

  • Muting

    Off/On Switch

  • Audio Input Level

    -8.4 dBV / 7.5 V p-p

  • Auto-Level Control

    No

  • Gain Range

    -20 to +40 dB (1 dB Steps)

  • Sync Method

    Proprietary

  • Antenna

    1x Internal, Fixed (Beltpack)

  • Power Requirements

    Battery

  • Battery

    1x Shure SB904 (Included, Replaceable)

  • Internal Battery Capacity

    2420 mAh

  • Battery Charging Time

    .25 to 3 Hours

  • Approx. Battery Life

    12 Hours (Lithium Rechargeable)

  • USB/Lightning I/O

    1x USB-C (Charging)

  • Display & Indicators

    1x LED (Battery Status, Sync)

  • Housing

    Metal

  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

  • Dimensions

    Without Antennas: 2.6 x 4.5 x 1.1" (67 x 115 x 28.5mm)

  • Weight

    Without Batteries: 5.4 oz (153.1g)

SM35 Headset Microphone

Jump to...
  • Color

    Black

  • Microphone Type

    Headset

  • Sound Field

    Mono

  • Capsule

    Electret Condenser

  • Polar Pattern

    Cardioid, Unidirectional

  • Frequency Range

    45 Hz to 20 kHz

  • SNR

    55 dB

  • Equivalent Noise Level

    39 dB A-Weighted

  • Maximum SPL

    153 dB SPL

  • THD

    < 3%

  • Impedance

    2400 Ohms

  • Dynamic Range

    114 dB

  • Outputs

    1x TA4/Mini XLR 4-Pin Female Unbalanced (Lockable)

  • Cable Length

    3.6' (1.1m)

  • Operating Voltage

    5 to 10 V

  • Operating Current Consumption

    40 microA

  • Weight

    2.1 oz (60g)

  • UPC Code

    042406695688

About Shure GLXD14+

Enhance your presentations with the GLXD14+ Dual Band Digital Wireless System, featuring the robust SM35 Headset Microphone. This innovative system, designed by the renowned brand Shure, is a game-changer in professional audio equipment, offering unparalleled vocal performance applications.

The GLXD14+ system integrates automatic frequency management with cutting-edge Dual Band Technology, ensuring reliable and consistent performance across a wide frequency range of 2.4-5.8 GHz. This broad bandwidth more than doubles the available channels, effectively avoiding interference and ensuring uninterrupted audio delivery.

The heart of this system is the GLXD4+ Digital Wireless Dual Band Tabletop Receiver. This receiver is not only compatible with a variety of lavalier, headset, and vocal microphones, but also features Shure's proprietary Lithium-Ion rechargeable batteries. These batteries provide up to 12 hours of continuous use and can be conveniently charged directly on the receiver or via USB-C, ensuring your presentations never run out of power.

The GLXD1+ Dual Band Bodypack Transmitter, with its rugged metal construction and ergonomic design, fits comfortably in various positions, thanks to its reversible belt clip. It's compatible with instrument cables and a wide range of headset and lavalier microphone options, offering flexibility and convenience.

The system is completed by the SM35 Headset Microphone, a durable and high-quality condenser microphone that offers multi-instrumentalists the freedom to express themselves without compromising on sound quality. Its tight, unidirectional (cardioid) pickup pattern excellently rejects off-axis sound sources, preventing feedback and signal bleed for superior on-stage performance. The SM35 seamlessly integrates into any Shure wireless bodypack system with its standard TA4F (TQG) connectivity, making it suitable for any stage, from small clubs to large installations and arena tours.

In summary, the GLXD14+ Dual Band Digital Wireless System with SM35 Headset Microphone offers a reliable, high-quality, and professional solution for all your presentation needs.

Shure GLXD14+ Features

  • GLXD4+ Digital Wireless Dual Band Tabletop Receiver Features
  • Exceptional digital audio clarity
  • Compatible with multiple legendary microphone options
  • Automatically moves away from interference without audio interruption
  • Operates in 2.4 and 5.8 GHz spectrum
  • Rechargeable battery delivers up to 12 hours of runtime
  • Rock-solid RF performance for multiple system installations
  • License-free frequency range
  • GLXD1+ Dual Band Bodypack Transmitter Features
  • Compatible with any GLX-D+ Dual Band receiver
  • Compatible with instrument cable, and a variety of headset and lavalier microphone options
  • Dual frequency band operation (2.4GHz and 5.8GHz)
  • Battery now lasts -12 hours (versus 11 in prior version)
  • Antenna has a slightly different shape
  • SM35 Headset Microphone Features
  • Wireframe headset fits securely and comfortably for active performers and multi-instrumentalists
  • Tight, unidirectional cardioid polar pattern rejects signal bleed and feedback for use on loud stages and behind floor monitors
  • Flexible gooseneck design allows for optimized placement that further improves source isolation
  • Lightweight and low-profile form enables comfortable, long-wearing use
  • TA4F (TQG) connector is compatible with any Shure wireless bodypack
  • Locking snap-fit windscreens tame plosives, breath, and wind noise for clean and intelligible sound
  • Tailored frequency response refined for clear, crisp vocal reproduction
  • Included in BLX and GLX-D wireless systems, renowned for their ease of use and reliable performance
  • Legendary Shure precision engineering for durability and performance

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with the Shure SM35 headset microphone for presentations.
  • Enjoy up to 12 hours of battery life with the GLXD1+ bodypack wireless microphone system.
  • The GLXD4+ receiver's digital wireless technology operates in the 2.4/5.8 GHz band.
  • Achieve freedom of movement with a 100-foot range using this wireless microphone system.
  • Ideal for fitness instructors: the SM35 headset stays secure and delivers clear sound.
  • The Shure GLXD14+ system ensures reliable performance with true digital diversity.

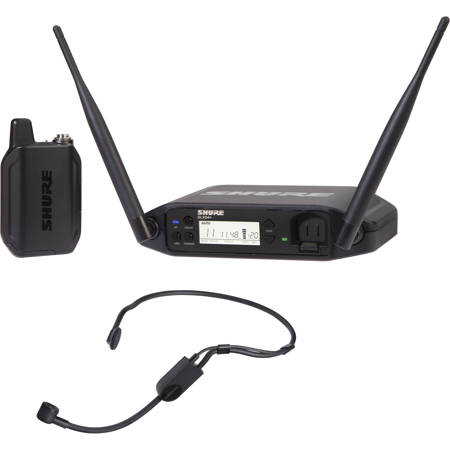

What's in the box:

  • GLXD4+ Dual Band Digital Wireless Tabletop Receiver
  • GLXD1+ Digital Wireless Bodypack Transmitter
  • SM35 Condenser Headset Microphone
  • PS43 Power Supply
  • SB904 Li-Ion Battery
  • Carrying Case (Black)
  • User Manual
  • Shure 2 Year Limited Warranty
