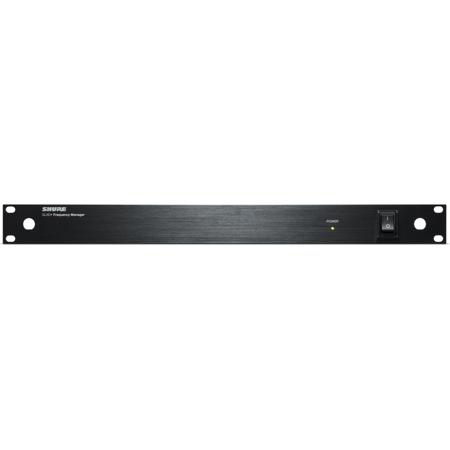

Shure GLXD+FM Dual Band Frequency Manager for GLXD+ Rack Receivers
Shure GLXD+FM: Picture 1 thumbnail
Shure GLXD+FM: Picture 2 thumbnail
See all Shure items
20% Off

Shure GLXD+FM Dual Band Frequency Manager for GLXD+ Rack Receivers

SKU: SHGDFMZ3LC MFR: GLXD+FMZ3/LC
Be the first to review this itemAsk a Question
$604.00
$755.00
Save: $151 (20%)
OR
$101/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Optimize your Shure GLX-D+ wireless microphone system with this dual-band frequency manager.
  • Enhance connectivity with the GLXD+FM, designed for seamless Shure GLXD4R+ receiver integration.
  • Ensure robust signal quality; this antenna distribution system supports 2.4/5.8 GHz bands.
  • Manage frequencies efficiently, reducing interference for crystal-clear audio during performances.
  • Get superior RF performance; the GLXD+FM features low noise and high signal integrity.
  • Rackmount design integrates easily, saving space while optimizing your audio setup's durability.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
2-Year Adorama Protect$119.99
3-Year Adorama Protect$154.99
5-Year Adorama Protect$269.99

Need help? Ask our experts.

Overview
Compare
Compatibility
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shure GLXD+FM Specifications

General

General

Jump to...

  • Compatibility

    Shure GLX-D+ GLXD4R+ Receiver

Inputs / Outputs

Jump to...

  • USB I/O

    1x USB-C Female Input

  • RF Input

    Connector Type: Reverse SMA
    RF Frequency Range: 2400 to 5850 MHz
    Receiver Port Isolation: 35 dB, Typical
    Impedance: 50 Ohms
    Maximum Antenna Input Power: -10 dBm
    Maximum Receiver Port Input Power: +15 dBm

  • RF Output

    Connector Type: Reverse SMA
    RF Frequency Range: 2400 to 5850 MHz
    Output Intercept Point: 48 dBm, Typical
    Impedance: 50 Ohms
    Reverse Isolation Output to Input: 35 dB, Typical
    Gain, Input to any Output Port: -3 to 0 dB

Power

Jump to...

  • Power Source

    AC Adapter with Power Brick (Included)

  • DC Input Power

    15 VDC

  • Operating Current

    3.8 A (Maximum)

Physical

Jump to...

  • Color

    Black

  • Mounting

    Front: 2x Rackmount

  • Material of Construction

    Metal

  • Dimensions

    19 x 7.5 x 1.7" (482.6 x 189.8 x 43.9mm)

  • Weight

    3.8 lbs (1.735kg)

Other

Jump to...

  • UPC Code

    042406757249

6 Accessories for Shure GLXD+FM Dual Band Frequency Manager for GLXD+ Rack Receivers

  • All Accessories (6)
  • Bags & Cases (2)
  • Antennas (1)
  • Cables & Adapters (2)
  • Splitter (1)
Gator Cases Pro Series Roto Molded Rack Case
Gator Cases Pro Series Roto Molded Rack Case
$179.99
Gator Cases Pro-Series Molded Mil-Grade PE Rack Case, 4U, 13" Deep
Gator Cases Pro-Series Molded Mil-Grade PE Rack Case, 4U, 13" Deep
$199.99
Shure PA805DB-RSMA Dual Band Passive Directional Antenna, 2.4/5.8GHz
Shure PA805DB-RSMA Dual Band Passive Directional Antenna, 2.4/5.8GHz
$312.00
Shure UA825 25' BNC-to-BNC Remote Antenna Extension Cable
Shure UA825 25' BNC-to-BNC Remote Antenna Extension Cable
$66.00
Shure UA850 50' BNC-to-BNC Remote Antenna Extension Cable
Shure UA850 50' BNC-to-BNC Remote Antenna Extension Cable
$124.00
Shure UA221DB-RSMA Reverse SMA Passive Antenna Splitter, 2.4/5.8GHz, Pair, Black
Shure UA221DB-RSMA Reverse SMA Passive Antenna Splitter, 2.4/5.8GHz, Pair, Black
$289.00

Designed For Use With:

  • GLX-D Systems

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Shure GLXD+FM

The GLXD+FM Dual Band Frequency Manager connects up to six GLXD4R+ receivers together, providing solid and reliable RF performance in demanding multi-channel applications. The channel count can go up to 11 simultaneous systems in typical environments and up to 16 under optimal conditions, with flexible antenna distribution options.

Shure GLXD+FM Features

  • Provides automatic dual band frequency management to a linked receiver community for improved RF performance and increased channel count
  • Link up to 6 individual rack receivers via RF ports for traditional antenna distribution
  • Daisy-chain cascade connection allows up to 3 Frequency Managers linked as a single managing unit for 16 receivers
  • Intelligent frequency management quickly identifies the best frequencies
  • Identifies and assigns optimal frequencies to receiver/transmitter pairs
  • In case of interference, automatically and seamlessly transitions to backup frequencies
  • Provides power to the GLXD4R+ receivers, eliminating need for power strips or multiple outlets
  • Globallyfunlicensed 2.4GHz frequency band and 5.8 GHz frequency band

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Optimize your Shure GLX-D+ wireless microphone system with this dual-band frequency manager.
  • Enhance connectivity with the GLXD+FM, designed for seamless Shure GLXD4R+ receiver integration.
  • Ensure robust signal quality; this antenna distribution system supports 2.4/5.8 GHz bands.
  • Manage frequencies efficiently, reducing interference for crystal-clear audio during performances.
  • Get superior RF performance; the GLXD+FM features low noise and high signal integrity.
  • Rackmount design integrates easily, saving space while optimizing your audio setup's durability.

What's in the box:

  • Shure GLXD+FM Dual Band Frequency Manager
  • Power Supply
  • 6x DC Power Cable
  • 2x 22-In RSMA Cable
  • Mounting Hardware
  • User Manual
  • Shure 2 Year Limited Warranty
