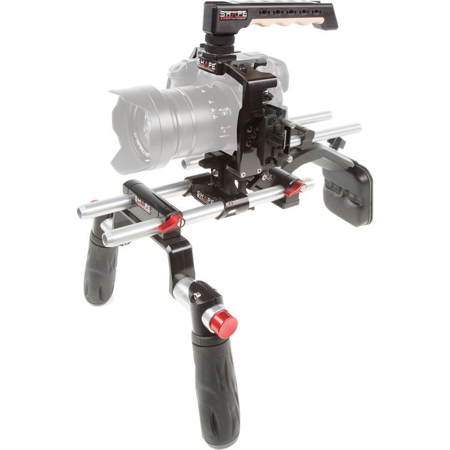

Shape Cage with Shoulder Mount for Panasonic Lumix GH5 Camera

The Perfect Camera Rig Support for Your Panasonic Lumix GH5. This Lightweight and Robust Cage is Built and Designed To Protect the Frame and Facilitate the Manipulation of the Panasonic Lumix GH5 Camera. the Top Handle Grip, the Quick Release Plate and the Adjustable Rod Bloc System Will Procure the Perfect Camera Rig Support for Your Panasonic Lumix GH5.

Robust, Easy & Fast to Assemble and Disassemble
This cage is easy to assemble and disassemble and you don't need to remove any parts when you want to install the camera. It has quick access to the memory card and the battery. The camera is fixed with a 1/4-20 screw with the threaded hole under the unit and the position is secured with the back and the sides of the cage so it will not move forward when equipped with a heavier lens.

Easy access to all the controls and outputs
Easy access to the lens release button, battery door and memory card. By leaving an open access on top of the camera cage, you can mount different accessories to the electronic Hot Shoe. On the side of the camera cage, there is also a second built in Hot Shoe to add more accessories like a microphone.

Cable Protector Access
The cage is designed to be compatible with a full-sized HDMI cable protector lock on the side to secure the use of your HDMI 4K cable.

1/4-20 and 3/8-16 threaded holes
The cage features several 1/4-20 and 3/8-16 threaded holes for attachments

Removable Metabones Support Bracket
Removable Metabones Support Bracket included in the baseplate. When there is no Metabones adapter, the 1/4-20 screw is captive so you don't have to remove it from the cage and simply slide the bracket from under the cage.

Compatible with the following cameras
Panasonic Lumix GH5.

Removable, Ergonomic And Robust Top Handle
The REVOLT Top Handle Hot Shoe DSLR is designed to give you a solid and comfortable grip on your camera. You can quickly insert and remove the top handle with the built-in hot shoe attachment. The camera handle grip is designed with an ergonomic finger grip. The frame is made from robust aluminum and the grip is made from genuine Canadian maple wood for maximum comfort. A View Finder bracket 15mm Rod Clamp can also be attached at the front of the Top Handle. Featuring Attachments of the Top Handle:

• EVF Mount. Perfect to attach our 15 mm Rod Clamp and our 'Push Button Arm View Finder Bracket'.
• 15x 1/4-20 threaded holes with stoppers. Perfect to strongly attach our Push Button Arm and manipulate more camera accessories.
• 2x Two Hot Shoe Brackets (Front and Back of Handle).
• One Hot Shoe attachment at the bottom to mount the Top Handle to the camera.

Quick release BasePlate
The Quick Release Plate can be used as a table stand or can be attached to a tripod.

Adjustable Rod Bloc System FOR a better adjustment of your camera optical center
The rod bloc travel height is adjustable with the help of an Allan Key for an optimal adjustment of your camera optical center, your Matt Box and your Follow Focus. Two 18 inch 15mm rods can be inserted into the rod bloc system to attach more equipment.

Quick Handle Rod Bloc System with Push Button
• Compatible with 15mm rods
• Single red knob for fast & easy adjustment
• Support quick release handgrips, 3 points of adjustment
• Ergonomic handles with rubber handgrips for stability and precision
• Patented push-button technology for fast adjustment
• Individual rotation on a 360deg. axis
• CNC machined parts and hard anodized aluminum for resistance
• Stainless steel locking mechanism for durability

The unique patented Shape Quick Handle push-button technology features two handles that can rotate individually on a 360deg. axis. The Shape handles can be rotated by pushing the red buttons. Once the buttons are released, the Shape handles are secured firmly in place. You can achieve precise positioning by sliding the Shape Quick Handle Rod Bloc along the rods and secure the handles by tightening the single red knob on the Rod Bloc. Compatible with all 15mm rod systems, placed in front of any type of camera support, the Shape Quick Handle Rod Bloc features a stainless steel locking mechanism for more durability.

Padded Shoulder Mount for Superior Comfort
• Sliding Rod included
• Single red knob for fast & easy adjustment
• Threaded hole at the back (1/4-20)
• CNC machined parts
• Hard anodized aluminum for resistance.
• Stainless steel screw.
• Black Powder Coat Paint.

The shoulder mount setup includes a mini composite shoulder pad and a padded back pad for a comfortable and stable position while shooting. The composite shoulder pad rests on your shoulder and helps your body support the weight of the camera and its accessories. The Rod Block on the top is used to hold 15mm rods, attaching the camera platform. By adding extra male-female rods at the back, you can also attach a Base Counter Weight to the rear of the same rods.
