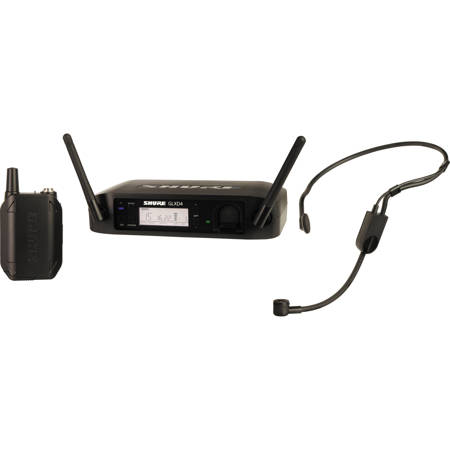

Shure GLXD14/PGA31 Headset Wireless System Z2: 2400 - 2483.5 MHz

Operate up to 4 compatible systems in typical setting, up to 8 maximum under ideal conditions

Indoors: Up to 100 feet (30 m) typical, with a maximum of 200 feet (60 m) under ideal conditions
Outdoors: Up to 65 feet (20 m) typical, with a maximum of 165 feet (50 m) under ideal conditions

Frequency Hopping

20 Hz - 20 kHz

120 dB, A-weighted

Group 1: 4.0 ms
2: 7.3 ms
3: 7.3 ms

-88 dBm, typical

0.2%, typical

10 mW E.I.R.P. max

Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output

Up to 16 hours

-18deg.C (0deg.F) to 57deg.C (135deg.F)

-29deg.C (-20deg.F) to 74deg.C (165deg.F)

3.7 V Rechargeable Li-Ion

Metal, Black Powdercoat

900 kOhms

10 mW E.I.R.P. max

4-Pin male mini connector (TA4M)

Unbalanced

-8.4 dBV (7.5 Vp-p) (1 kHz at 1% THD)

Internal Monopole

Ground (cable shield)
+ 5 V Bias
Audio
Tied through active load to ground (On instrument adapter cable, pin 4 floats)

90.4 x 64.5 x 22.9 mm (3.56 x 2.54 x 0.90 in.), H x W x D (without antenna)

Molded Plastic

14 to 18 V DC (negative ground), 550 mA

>35 dB, typical

20 to 40 dB in 1 dB steps

Yes

XLR Output Impedance balanced
6.35 mm (1/4") output Impedance balanced

XLR Output 100 Ohms
6.35 mm (1/4") output 100 Ohms (50 Ohms, Unbalanced)

XLR connector (into 600 Ohms load) 0 dBV
6.35 mm (1/4") connector (into 3 kOhms load) +8.5 dBV

XLR Output 1=ground, 2=hot, 3=cold
6.35 mm (1/4") connector Tip=audio, Ring/Sleeve=ground

1/2 Wave Sleeve Dipole, non-removable

-20 dBm

Shure lithium-ion rechargeable batteries

Electret Condenser

60-20,000 Hz

Cardioid

Receiver: 40 x 183 x 117mm / 1.57 x 7.20 x 4.61"
Transmitter: 90.4 x 64.5 x 22.9mm / 3.56 x 2.54 x 0.9" (without antenna)

Receiver: 286g (10.1oz)

042406390972
