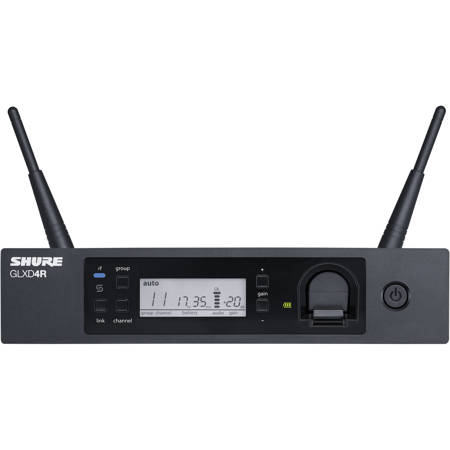

Shure GLXD4R Rack Mount Wireless Receiver
See all Shure items

Shure GLXD4R Rack Mount Wireless Receiver

SKU: SHGLXD4RZ2
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shure GLXD4R Specifications

  • Housing

    Steel

  • Power Requirements

    14 to 18 VDC (tip positive with respect to ring) 550mA

  • Spurious Rejection

    >35dB, typical

  • Gain Adjustment Range

    -18 to 42dB in 1dB steps

  • Phantom Power Protection

    Yes

  • Mic/Line Switch

    30dB Pad

  • Receiver Antenna Input

    Impedance: 50Ohms
    Antenna Type: 1/2 Wave Sleeve Dipole
    Maximum Input Level: -20 dBm

  • Audio Output: Configuration

    XLR Output: Balanced
    6.35mm (1/4") output: Impedance balanced

  • Audio Output: Impedance

    XLR Output: 100Ohms
    6.35mm (1/4") Output: 100Ohms (50Ohms, Unbalanced)

  • Audio Output: Full Scale Output

    1/4" (6.35mm): +12 dBV
    XLR: LINE setting = +18 dBV, MIC setting = -12 dBV

  • Audio Output: Pin Assignments

    XLR Output: 1=ground, 2=hot, 3=cold
    6.35mm (1/4") Output: Tip=Audio, Ring=No audio, Sleeve=Ground

  • Dimensions (HxWxD)

    42 x 197 x 163mm (1.65 x 7.76 x 6.42")

  • Weight

    Without Batteries: 32 oz (907.18g)

  • UPC Code

    042406496100

About Shure GLXD4R

Rack mountable receiver with removable antennas for exceptional audio and rock-solid performance in multi-system installations for house of worship, education and live music applications. Use GLX-D Advanced rack mount wireless systems for improved RF performance and seamless frequency management. With detachable antennas and rack hardware included, GLXD4R receivers quickly integrate GLX-D Frequency Managers and remote antenna accessories for rock-solid multi-system installations.

Shure GLXD4R Features

  • Rock-solid RF Performance from patented data communication
  • Integrated battery charge port for proprietary Shure lithium-ion transmitter batteries with two-color charge indicator LED - Green: Charged, Flashing Green: 90% charged, Red: Charging
  • Detachable antennas for remote mounting
  • Remote adjustable transmitter gain control
  • Hi-res LCD screen status display
  • Real-time battery run-time displayed in hours and minutes (accurate within +/- 15 minutes)
  • XLR and 1/4" output connectors
  • Rugged metal chassis design
  • Includes rack mount hardware

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Shure GLXD4R Rack Mount Wireless Receiver
  • Detachable Antenna
  • Rack Mount Hardware
  • Shure Warranty
