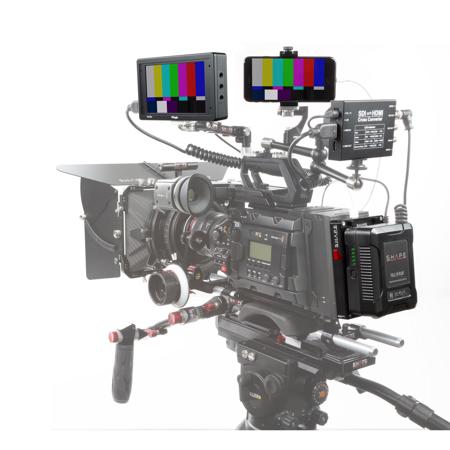

Shape Full Play 14.8V 98Wh Rechargeable Lithium-Ion V-Mount Battery Kit with D-Box Power and Charger for BlackMagic URSA Mini and URSA Mini Pro Camera
SKU: SHKBBUM
This item is no longer available.
Recommended Alternatives
Share:
Overview
Compare
Specs
Protection
About Shape D-Box + Battery
Charger device with continuous AC power and efficient Power Distribution in one box + High-capacity 98Wh V-Mount Lithium-Ion Rechargeable Battery.
D-Box Connectors
• (1) Multi pin cable (16.8V:6A) compatible with Blackmagic URSA MINI & PRO
• (1) Output Cable compatible with 5V, 8V or 12V Outputs
• (1) Output 5V:4A ; (1) Output 8V:5A ; (1) Output 12V:5A
• (1) D-TAP Output 16.8V:6A
• (1) USB Output 5V:4A
D-Box Charger and Power Devices
• (1) Power Supply. Input (110-240V:2A 50/60Hz); Output (16.8V:6A)
• (1) BP Charger input to use and charge battery at the same time
• (1) AC Adapter input to use without a battery
D-Box 15mm Rod Mount System device
• Delta plate included to mount on the D-box main unit
• Knob system to lock and adjust the position of the D-box unit
Shape D-Box + Battery Features
- D-Box Features
- D-Box only compatible with the camera + SSD recorder unit
- 16.8V:6A output combined with a multi pin cable compatible for Blackmagic
- 6 outputs: (1) 5V:4A:20W, (1) 8V:5A:40W, (1) 12V:5A:60W, (2) 16.8V:6A:100W, (1) USB 5V:4A
- V-Mount Battery Plate with Safe Lock
- Small size and lightweight battery plate (0.8 lbs 0.36 kg)
- When the D-Box is plugged in, safely disconnect and reconnect the battery without powering down your rig
- Supports up to 100W power consumption from the device
- Robust 15mm Rod Mount with locking and angle adjustment system
- Threaded holes at the back of the plate for mounting on a cheeseplate
- LED indicators for power features
- V98TS Full Play 14.8V 98Wh Rechargeable Lithium-Ion V-Mount Battery Features
- High-capacity, reliable quality, long operating time
- 98Wh (14.8V) 6.8Ah V-Mount Lithium-Ion Rechargeable Battery
- Supports Up to 12A Continuous Draw
- Intelligent Control and Protection Circuit
- Temperature, Current and Voltage Protection
- No Memory Effect, Environmental Protection
- D-Tap and USB Ports made of PPS Aircraft-Grade Materials
- Remote Fault Battery Analysis Available
- Built-in USB Interface for charging electronic and mobile devices
- 4-Level LED Indicator Lights displaying the charging status
- Standard working time on full charge is approximately
- 6 hours for cameras like the Panasonic AU-EVA1
- Compatible with all the broadcast video cameras using a standard V-Mount battery plate
- Powers any standard or high-definition broadcast cameras, 4K digital cinema and 3D camera setups, DSLRs and handheld camcorders that accept a V-Mount battery
- Battery can be charged with any standard V-Mount charger or D-Tap charger, including SHAPE FULL PLAY Portable D-Tap Travel Battery Charger DPTCH, SHAPE FULL PLAY Intelligent 4-Ch V-Mount Lithium-Ion Battery Charger V4CHA and SHAPE FULL PLAY Intelligent Dual V-Mount Lithium-Ion Battery Charger V2PWC
