Shape Full Play 14.8V 98Wh Rechargeable Lithium-Ion V-Mount Battery Kit with D-Box Power and Charger for Panasonic EVA1, Sony FS7, FS7M2, FS5 and FS5M2 Camera
SKU: SHKBFS5
This item is no longer available.
Recommended Alternatives
Share:
Overview
Compare
Specs
Protection
Q&A

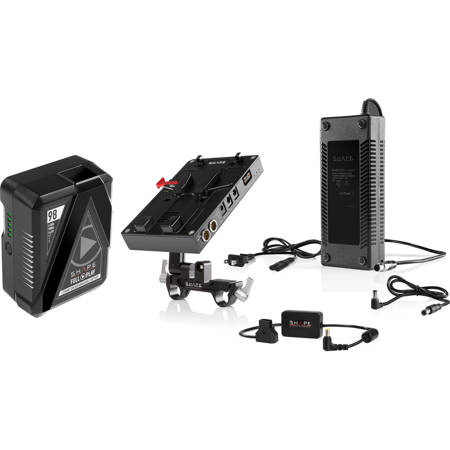

About Shape D-Box + Battery
What you're looking at is a comprehensive Full Play 14.8V 98Wh Rechargeable Lithium-Ion V-Mount Battery Kit, designed to power your professional cameras seamlessly. This high-capacity, durable battery kit is compatible with a variety of camera models, including the Panasonic EVA1, Sony FS7, FS7M2, FS5, and FS5M2, making it a versatile choice for photographers and filmmakers.
The kit includes a powerful, rechargeable 98Wh V-Mount Lithium-Ion battery, ensuring longer shooting times and less frequent recharging. It also comes with a D-Box Power and Charger, providing continuous AC power and efficient power distribution in one compact unit.
The kit features multiple connectors, including a cable compatible with the Panasonic EVA1, Sony FS7, FS72, FS5, FS5M2, and output cables compatible with 5V, 8V, or 12V outputs. It also includes a D-TAP output of 16.8V:6A and a USB output of 5V:4A, offering a range of power options for your devices.
The D-Box unit can be easily mounted using the included delta plate and adjusted with the knob system, providing flexibility in positioning. The kit also includes a power supply with an input of 110-240V:2A 50/60Hz and an output of 16.8V:6A, a BP charger input for using and charging the battery simultaneously, and an AC adapter input for use without a battery.
This Full Play 14.8V 98Wh Rechargeable Lithium-Ion V-Mount Battery Kit is an all-in-one power solution for your professional camera needs, offering high-quality, reliable power supply and charging capabilities.
Shape D-Box + Battery Features
- D-Box Features
- Compatible with Panasonic EVA1, Sony FS7, FS72, FS5, FS5M2
- V-Mount Battery Plate with Safe Lock
- Small size and lightweight battery plate (0.8 lbs 0.36 kg)
- When the D-Box is plugged in, safely disconnect and reconnect the battery without powering down your rig
- 5 outputs: (1) 5V:4A:20W, (1) 8V:5A:40W, (1) 12V:5A:60W, (1) 16.8V:6A:100W, (1)USB 5V:4A
- Supports up to 100W power consumption from the device
- Comes with a robust 15mm Rod Mount with locking and angle adjustment system
- Threaded holes at the back of the plate for mounting on a cheeseplate
- LED indicators for power features

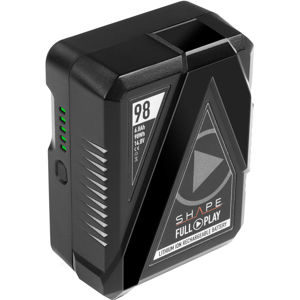

- V98TS Full Play 14.8V 98Wh Rechargeable Lithium-Ion V-Mount Battery Features
- High-capacity, reliable quality, long operating time
- 98Wh (14.8V) 6.8Ah V-Mount Lithium-Ion Rechargeable Battery
- Supports Up to 12A Continuous Draw
- Intelligent Control and Protection Circuit
- Temperature, Current and Voltage Protection
- No Memory Effect, Environmental Protection
- D-Tap and USB Ports made of PPS Aircraft-Grade Materials
- Remote Fault Battery Analysis Available
- Built-in USB Interface for charging electronic and mobile devices
- 4-Level LED Indicator Lights displaying the charging status
- Standard working time on full charge is approximately
- 6 hours for cameras like the Panasonic AU-EVA1
- Compatible with all the broadcast video cameras using a standard V-Mount battery plate
- Powers any standard or high-definition broadcast cameras, 4K digital cinema and 3D camera setups, DSLRs and handheld camcorders that accept a V-Mount battery
- Battery can be charged with any standard V-Mount charger or D-Tap charger, including SHAPE FULL PLAY Portable D-Tap Travel Battery Charger DPTCH, SHAPE FULL PLAY Intelligent 4-Ch V-Mount Lithium-Ion Battery Charger V4CHA and SHAPE FULL PLAY Intelligent Dual V-Mount Lithium-Ion Battery Charger V2PWC
Warranty Information
This product has a limited warranty of 24 months.
