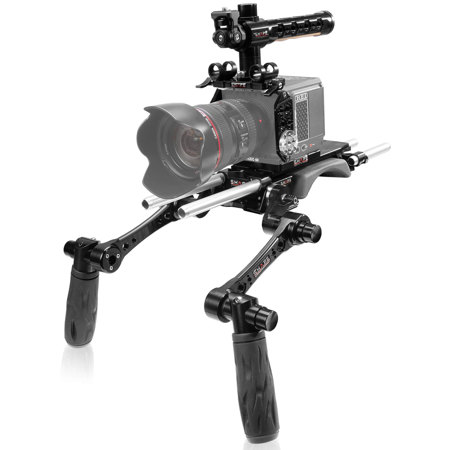

Shape Camera Cage Kit with Top Handle, Shoulder Baseplate, Quick Handle for RED KOMODO

SKU: SHKOMOBR MFR: KOMOBR
Earn VIP Reward Points

Key Features

  • Enhance RED KOMODO shoots with this robust camera cage kit for added stability.
  • Achieve comfortable handheld filming using the adjustable top handle grip system.
  • Mount accessories easily with multiple 1/4"-20 and 3/8"-16 accessory mounting threads.
  • Experience smooth shoulder-mounted operation using the included shoulder baseplate.
  • Quickly switch between setups with the ARRI rosette quick handle attachments.
  • Durable aluminum build ensures long-lasting support for your RED KOMODO camera.
See More Product Details
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?THOMAS M : work

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Shape Camera Cage Kit Specifications

Camera Cage: Mounting

Camera Cage: Mounting

Jump to...
  • Rod Standard

    15mm LWS / 60 mm Spacing

  • Battery Plate Type

    None

  • Accessory Mounting

    Cage, Top: 9x 1/4"-20 Thread, 4x Anti-Twist 1/4"-20 Thread, 1x Anti-Twist 3/8"-16 Thread
    Cage, Sides: 4x Anti-Twist 1/4"-20 Thread, 4x Anti-Twist 3/8"-16 Thread
    Top Handle, Top: 3x 1/4"-20 Thread, 4x Anti-Twist 3/8"-16 Thread
    Top Handle, Sides: 6x 1/4"-20 Thread, 8x ARRI Anti-Twist 3/8"-16 Thread

  • Rod Ports

    2x 15 mm Rod Port

  • Shoe Mounting

    Top Handle, Front: 1x Cold Shoe

  • Rosettes

    Cage, Sides: 2x ARRI Rosette w/ M6 Thread

Camera Cage: General

Jump to...
  • Support Type

    Cage

  • Grip Type

    Topside Handgrip

  • Camera Compatibility

    RED KOMODO

  • Material

    Aluminum, Wood

  • Dimensions

    7.6 x 7.2 x 4.4" (19.3 x 18.3 x 11.2cm)

  • Weight

    1.38 lbs (0.63kg)

Quick Handle: Mounting

Jump to...
  • Attachment Method

    Attaches via Rosette

  • Accessory Mounting

    Arm
    2x Anti-Twist 1/4"-20 Thread
    2x Anti-Twist 3/8"-16 Thread

  • Shoe Mounting

    None

  • Rosettes

    1x ARRI Rosette w/ M6 Thread (per Handgrip)

  • Rail Mounting

    None

Quick Handle: General

Jump to...
  • Grip Type

    Dual Handgrips

  • Rotation

    Yes

  • Weight

    2.56 lbs (1.2kg)

Shoulder Baseplate: Mounting

Jump to...
  • Rod Standard

    15 mm LWS / 60 mm Spacing

  • Camera Mounting

    1/4"-20 Screw, 3/8"-16 Screw

  • Rosettes

    Sides: 2x ARRI Rosette w/ M6 Thread

Shoulder Baseplate: General

Jump to...
  • Support Type

    Shoulder Support

  • Grip Type

    Grip Required (Not Included)

  • Camera Compatibility

    Universal

  • Material

    Aluminum

  • Dimensions

    10 x 4.5 x 2" (25.4 x 11.43 x 5.08cm)

  • Weight

    2.1 lbs (0.9kg)

8" 15mm Aluminum Rods

Jump to...
  • Material

    Aluminum with a clear finish applied over it

  • Dimensions

    Diameter: 15mm
    Length: 8" (20.3cm)

4" 15mm Aluminum Rods

Jump to...
  • Material

    Aluminum with a clear finish applied over it

  • Dimensions

    Diameter: 15mm
    Length: 4" (10.1cm)

  • UPC Code

    629266102381

Designed For Use With:

  • RED System

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Shape Camera Cage Kit

Take your videography to the next level with our Camera Cage Kit with Top Handle, Shoulder Baseplate, and Quick Handle, specifically designed for the RED KOMODO camera. This sturdy and versatile kit offers enhanced protection and a multitude of accessory-mounting options for your camera.

The L-shaped top handle, constructed from anodized aluminum, is lined with a smooth, Canadian maple wooden finger grip. It employs SHAPE's innovative Push-Button Technology, allowing you to balance the weight and rotate the handle on a 360-degree axis for optimal shooting comfort. The handle also boasts numerous 3/8"-16 ARRI-style anti-twist accessory threads and a cold shoe designed to receive a spring-loaded cold shoe foot. This feature enables the mounting of accessories like a monitor, video light, or microphone weighing up to 4.4 lb.

The kit also includes a compact REVOLT shoulder baseplate (BP20), a lighter version of the REVOLT VCT universal baseplate (BP10). This baseplate is equipped with 2 standard Arri rosettes for handle mount and a standard quick release adapter plate compatible with most VCT tripod plates. It also features a bracket system with a magnet for easy access to the camera screws and protective rubber pads to safeguard your camera.

The baseplate also comes with two 15 mm lightweight rod blocs that can be fixed to the front and rear, allowing for the installation of additional camera accessories. The thick shoulder pad, made of gel padding and slip-free material, ensures maximum comfort during shoots.

The kit is completed by the compact quick handle Arri rosette black (HAND15), which features three points of articulation for easy adjustment. The handle is equipped with (2) 1/4-20 and (2) 3/8-16 threaded holes with locking attachment stoppers for secure mounting of camera accessories.

The kit also includes 15 mm 4" rods (15TUBE4) and 15 mm 8" rods (15TUBE8), made of durable aluminum, to connect into your camera rig, extend it, and allow the addition of various SHAPE and third-party accessories compatible with 15 mm rods.

This professional-grade Camera Cage Kit with Top Handle, Shoulder Baseplate, and Quick Handle for RED KOMODO is your ultimate solution for comfortable, stable, and versatile shooting.

Shape Camera Cage Kit Features

  • Designed to match the RED KOMODO optical center with or without the expander module
  • Compact REVOLT shoulder baseplate (BP20)
  • Quick handle Arri rosette with black Push-button system (Hand15)
  • Patented Push-button technology
  • Push, adjust, release, and then its lock
  • Padded and comfortable Shoulder Pad
  • L-shaped top handle with Push-Button Technology
  • Top handle made of CNC aluminum and wooden Canadian maple
  • Top handle feature a tilting bracket to mount a monitor, a video light, or a microphone (up to 4.4 lb)
  • Top plate designed with 15 mm LW rod bloc clamp
  • Side plates designed with ARRI rosette mount
  • Cage, handle and baseplate feature several anti rotating threaded holes (3/8-16, 1/4-20)
  • Made of CNC aluminum

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Enhance RED KOMODO shoots with this robust camera cage kit for added stability.
  • Achieve comfortable handheld filming using the adjustable top handle grip system.
  • Mount accessories easily with multiple 1/4"-20 and 3/8"-16 accessory mounting threads.
  • Experience smooth shoulder-mounted operation using the included shoulder baseplate.
  • Quickly switch between setups with the ARRI rosette quick handle attachments.
  • Durable aluminum build ensures long-lasting support for your RED KOMODO camera.

What's in the box:

  • Camera Cage
  • Top Handle with Tilting Bracket
  • Top Plate
  • 2x Side Riser Plate with ARRI Rosette
  • 2x 15mm LW Clamp for Top Handle Grip
  • 2x 1/4"-20 Socket Head Cap Screw
  • 4x M4 Screw
  • 3mm Allen Key
  • 3/16" Allen Key
  • 2x Compact Quick Handle Rosette
  • 2x M6 Metric Screw
  • Compact Revolt Shoulder Baseplate
  • Replacement Pad for REVOLT VCT Universal Baseplate
  • 1x 8" 15mm Aluminum Rods
  • 1x 4" 15mm Aluminum Rods
  • Shape Lifetime Limited Warranty
